Climate Control System does not Operate on Driver Side: Wiring Diagram

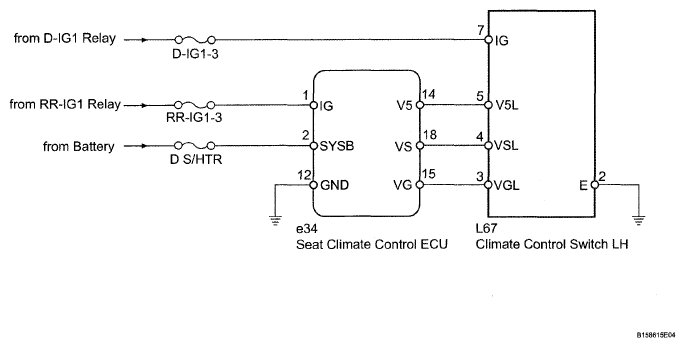

Fig 1: Climate Control System - Wiring Diagram
G04952661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
