Inspection Procedure
- CHECK FUSE (P-IG-4, P S/HTR, D-IG1-3)
- Remove the P-IG-4 and P S/HTR fuses from the passenger side junction block.
- Remove the D-IG1-3 fuse from the main body ECU.
- Measure the resistance of the fuses.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connector Condition Specified Condition P-IG1-4 fuse Always Below 1 Ω P S/HTR fuse Always Below 1 Ω D-IG1-3 fuse Always Below 1 Ω
NG: REPLACE FUSE
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - BATTERY AND BODY GROUND)
- Disconnect the e4 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connector Condition Specified Condition e4-12 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
VOLTAGE SPECIFIED CONDITIONSTester Connector Switch Condition Specified Condition e4-1 (IG) - Body ground Engine switch on (IG) 11 to 14 V e4-2 (SYSB) - Body ground Always 11 to 14 V
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (SEAT CLIMATE SWITCH RH - BATTERY AND BODY GROUND)
- Disconnect the L68 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connector Condition Specified Condition L68-2 (E) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
VOLTAGE SPECIFIED CONDITIONSTester Connector Switch Condition Specified Condition L68-7 (IG) - Body ground Engine switch on (IG) 11 to 14 V
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- INSPECT CLIMATE CONTROL SWITCH RH
- Remove the L67 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connector Switch Condition Specified Condition 5 (V5R) - 4 (VSR) Cooler MAX → Heater MAX Below 1 Ω → 5 kΩ
NG: REPLACE CLIMATE CONTROL SWITCH RH (See REMOVAL )
OK: Go to next step

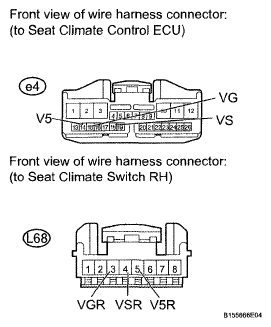

- CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - SEAT CLIMATE SWITCH RH AND BODY GROUND)
- Disconnect the e4 ECU connector.
- Disconnect the L68 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFIED CONDITIONTester Connector Condition Specified Condition e4-14 (V5) - L68-5 (V5R) Always Below 1 Ω e4-18 (VS) - L68-4 (VSR) Always Below 1 Ω e4-15 (VG) - L68-3 (VGR) Always Below 1 Ω e4-14 (V5) - Body ground Always 10 kΩ or higher e4-18 (VS) - Body ground Always 10 kΩ or higher e4-15 (VG) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE SEAT CLIMATE CONTROL ECU (See REMOVAL )
