System Diagram

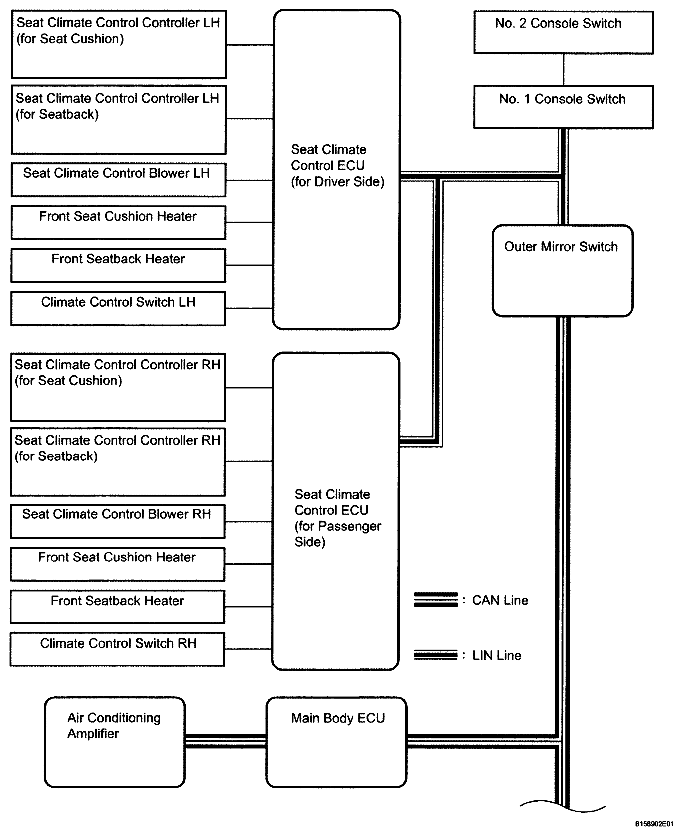

Fig 1: Climate Control Seat System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

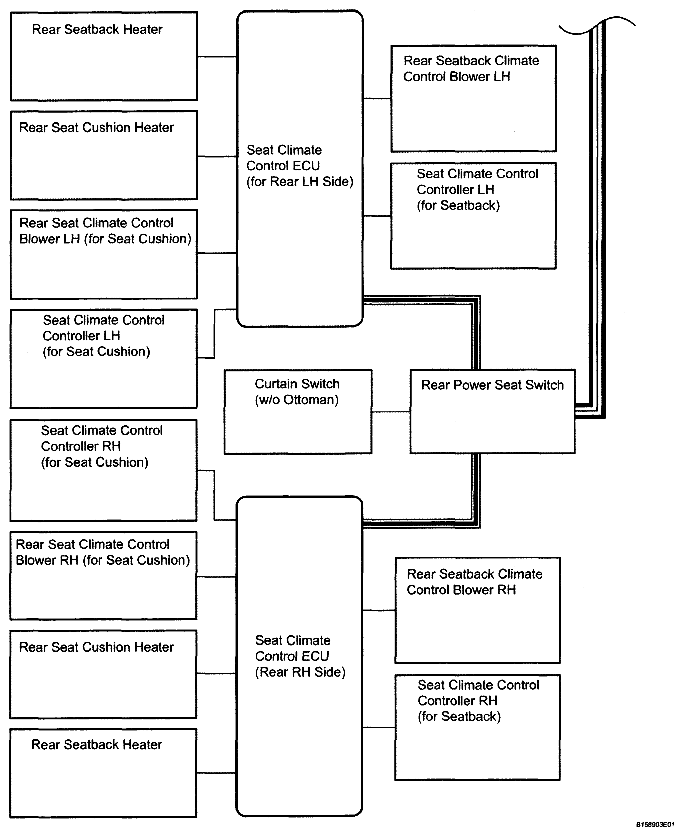

Fig 2: Climate Control Seat System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION CHART
Sender
Receiver
Signal
Line
Climate control ECU
A/C amplifier
A/C signal
LIN, CAN
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
