Inspection Procedure

  1. PERFORM ACTIVE TEST BY TECHSTREAM (POWER SEAT MOTOR FUNCTION)
    1. Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function.

      Driver Seat

      DRIVER SEAT ACTIVE TEST REFERENCE CHART

      Tester Display Test Part Control Range
      Cushion Length Seat cushion length operation FRONT/REAR

      OK: Motor operates normally

    NG: Go to step  6

    OK: Go to Next Step

  2. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - FRONT POWER SEAT CUSHION POSITION SENSOR LH AND BODY GROUND)
    1. Disconnect the e46 switch connector.
    2. Disconnect the e41 sensor connector.
    3. Measure the resistance according to the values in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      e46-8 (PVCC) - e41-3 (VCC) Always Below 1 Ω
      e46-20 (SSRC) - e41-1 (O/P) Always Below 1 Ω
      e46-18 (SGND) - e41-2 (GND) Always Below 1 Ω
      e46-8 (PVCC) - Body ground Always 10 kΩ or higher
      e46-20 (SSRC) - Body ground Always 10 kΩ or higher
      e46-18 (SGND) - Body ground Always 10 kΩ or higher

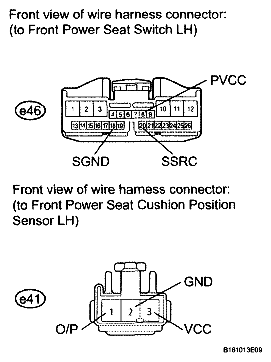

      Fig 1: Identifying e46 Power Seat Switch And e41 Sensor Connector Terminals
      G04952483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POSITION CONTROL SENSOR)
    1. Disconnect the e41 sensor connector.
    2. Measure the voltage according to the values in the table below.

      Standard Voltage

      VOLTAGE SPECIFIED CONDITIONS

      Tester Connection Switch Condition Specified Condition
      e41-3 (VCC) - e41-2 (GND) Cushion switch signal ON 7.2 to 8.8 V
      Fig 2: Identifying e41 Position Control Sensor Connector Terminals
      G04952484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FRONT POWER SEAT SWITCH LH  (See REMOVAL  )

    OK: Go to Next Step

  4. CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POSITION CONTROL SENSOR)
    1. Reconnect the e41 sensor connector.
    2. Measure the voltage according to the value in the table below.

      Standard Voltage

      VOLTAGE SPECIFIED CONDITIONS

      Tester Connection Switch Condition Specified Condition
      e41-1 (O/P) - Body ground Cushion switch signal ON 0 to 8V
      Fig 3: Identifying e41 Position Control Sensor Connector Terminals
      G04952485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FRONT SEAT ADJUSTER ASSEMBLY LH  (See REMOVAL  )

    OK: Go to Next Step

  5. CHECK FOR DTC
    1. Clear the DTC (see DTC CHECK / CLEAR  ).
    2. Recheck the DTC.

      OK: DTC B2655 is not output.

    NG: REPLACE FRONT POWER SEAT SWITCH LH  (See REMOVAL  )

    OK: END (SYSTEM RETURNS TO NORMAL)

  6. CHECK FRONT SEAT ADJUSTER ASSEMBLY LH (POWER SEAT MOTOR)
    1. Check operation of the seat frame (cushion motor).
      1. Check if the seat adjuster moves smoothly when the battery is connected to the cushion motor connector terminals.

        OK

        CUSHION MOTOR OPERATION CHART

        Measurement Condition Operational Direction
        Battery positive (+) → 1
        Battery negative (-) → 2
        Forward
        Battery positive (+) → 2
        Battery negative (-) → 1
        Backward
        Fig 4: Identifying Power Seat Motor Connector Terminals
        G04952427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FRONT SEAT ADJUSTER ASSEMBLY LH  (See REMOVAL  )

    OK: Go to Next Step

  7. CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - POWER SEAT MOTOR)
    1. Disconnect the e45 and e46 switch connectors.
    2. Disconnect the e40 motor connector.
    3. Measure the resistance according to the values in the table below.

      Standard Resistance

      RESISTANCE SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      e46-10 (C+) - e40-1 Always Below 1 Ω
      e45-4 (C-) - e40-2 Always Below 1 Ω

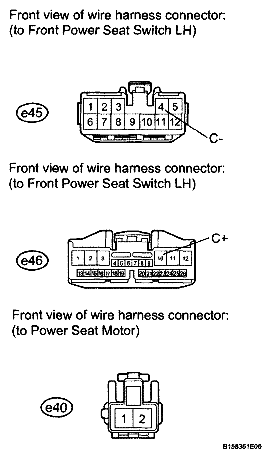

      Fig 5: Identifying e45 And e46 Switch With e40 Motor Connector Terminals
      G04952487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE FRONT POWER SEAT SWITCH LH  (See REMOVAL  )
