System Diagram

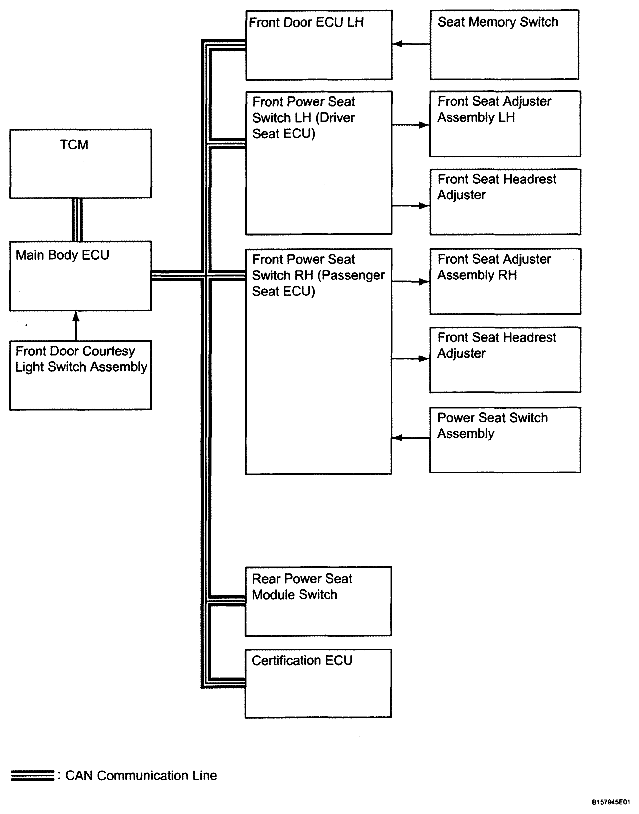

Fig 1: Front Power Seat Control System Diagram
G04952410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
TCM Front Power Seat Switch LH Shift position signal CAN
TCM Front Power Seat Switch RH Shift position signal CAN
Front Door ECU LH Front Power Seat Switch LH
  • Seat memory switch M1 signal
  • Seat memory switch M2 signal
  • Seat memory switch M3 signal
 CAN
Main Body ECU Front Power Seat Switch LH Driver door courtesy light switch signal CAN
Main Body ECU Front Power Seat Switch RH Passenger door courtesy light switch signal CAN
Certification ECU Front Power Seat Switch LH
  • Door lock/unlock signal
  • Key ID signal
 CAN
Rear Power Seat Module Switch Front Power Seat Switch RH Power seat switch signal CAN
Front Power Seat Switch LH Front Door ECU LH
  • M1 switch memory command signal
  • M2 switch memory command signal
  • M3 switch memory command signal
 CAN
