Front Seat Assembly: Reassembly

CAUTION: Wear protective gloves. Sharp areas on the seat adjuster seat cushion frame may injure your hands.

NOTE: If the occupant classification ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

HINT:

Use the same procedures for the LH side and RH side.
The procedure listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL FRONT SEAT WIRE LH
INSTALL SEAT POSITION AIRBAG SENSOR (See INSTALLATION )
INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)
NOTE:
- If replacing the ECU, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
- If the occupant classification ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

  Fig 1: Locating Occupant Classification ECU Connector And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the occupant classification ECU with the 2 nuts.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
2. Connect the connector.
INSTALL NO. 1 AIR FILTER (w/ Climate Control Seat System)
1. Rotate the No. 1 filter clockwise to attach the claws and install it.

  Fig 2: Rotating No. 1 Filter Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System)
1. Install the climate control blower with the 2 bolts and wire harness clamp.
2. Connect the connector and install the wire harness clamp.
3. Attach the 2 claws and install the climate control air duct.

  Fig 3: Identifying Seat Climate Control Blower Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL ECU LH (w/ Climate Control Seat System)
1. Install the climate control ECU with the 2 bolts.
2. Connect the 2 connectors.

  Fig 4: Locating Climate Control ECU Mounting Bolts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 1 SEAT TRAVEL LINK
1. Install the seat travel link with the bolt.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
INSTALL FRONT NO. 2 SEAT TRAVEL LINK
1. Install the seat travel link with the bolt.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 5: Locating Front Seat Travel Link Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 SEAT CUSHION PLATE
1. Install the seat cushion plate with the 2 bolts.

  Fig 6: Locating Seat Cushion Plate Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SPRING
1. Install the 2 springs.

  Fig 7: Identifying Front Seat Cushion Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SHIELD LOWER
1. Install the cushion shield lower with the 4 nuts.

  Fig 8: Locating Cushion Shield Lower Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECLINING ADJUSTER INSIDE COVER RH
1. Install the reclining adjuster inside cover with the screw.
INSTALL RECLINING ADJUSTER INSIDE COVER LH
1. Install the wire harness clamp to the reclining adjuster inside cover.
2. Install the reclining adjuster inside cover with the screw.

  Fig 9: Identifying Reclining Adjuster Inside Cover Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 5 SEAT SET BRACKET (for Front Passenger Side)
1. Attach the 2 clamps and install the bracket.
2. Install the 2 screws.

  Fig 10: Identifying Seat Set Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
1. Attach the 2 claws and install the headrest adjuster.
2. Install the 2 bolts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 11: Locating Front Seat Headrest Adjuster Sub-Assembly Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY (w/ Retractable Headrest)
1. Install the headrest stay cover with the 2 screws.

  Fig 12: Identifying Headrest Stay Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 claws and install the cable.

  Fig 13: Identifying Cable Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws and install the motor.

  Fig 14: Identifying Motor Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Attach the 2 claws and install the headrest adjuster.
5. Install the 4 bolts and 2 screws.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf) for bolt

  Fig 15: Locating Front Seat Headrest Adjuster Sub-Assembly Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
1. Install the lumbar support adjuster and attach the 4 clamps.
2. for Driver Side:
  Install the 2 motors with the 4 bolts.
3. for Passenger Side:
  Install the motor with the 2 bolts.

  Fig 16: Identifying Lumbar Support Adjuster Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (BACK SIDE) (w/ Climate Control Seat System)
1. w/ Lumbar Support Adjuster:
  Install the climate control controller with the 2 screws.

  Fig 17: Locating Seat Climate Control Controller Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Lumbar Support Adjuster:
  Install the climate control controller to the seatback frame.

  Fig 18: Locating Seat Climate Control Controller
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEATBACK FRAME ASSEMBLY LH
1. Temporarily install the seatback frame with the 4 bolts.
2. Push the seatback frame towards the vehicle rear, and tighten the 4 bolts.
  Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

  Fig 19: Identifying Seatback Frame Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the clamps and connect the connectors.

  Fig 20: Locating Front Seatback Frame Assembly Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH

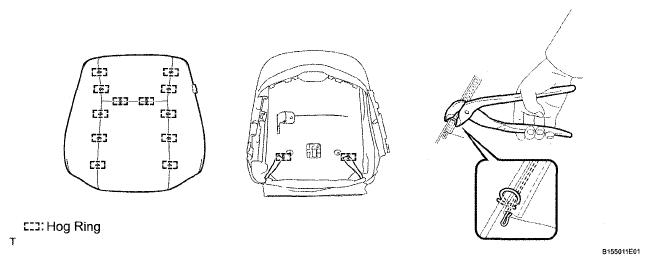

Fig 21: Installing Seatback Cover To Seatback Pad With Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
INSTALL FRONT SEATBACK COVER WITH PAD
1. Install the seatback cover (with pad) to the seatback frame and attach the hooks, Then install the 2 clips.

  Fig 22: Identifying Seatback Cover Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Front Passenger Side:
  1. Attach the 2 claws and install the power seat switch.
  2. Connect the connector.

    Fig 23: Identifying Power Seat Switch Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the seatback cover bracket with the bolt.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 24: Identifying Seatback Cover Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT HEADREST SUPPORT LH
1. Attach the 4 claws and install the 2 headrest supports.

  Fig 25: Identifying Claws On Front Seat Headrest Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT HEADREST ASSEMBLY LH
1. w/ Retractable Headrest:
  Install the headrest.
2. w/o Retractable Headrest:
  Install the headrest with the 2 pins.

  Fig 26: Installing Headrest With Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

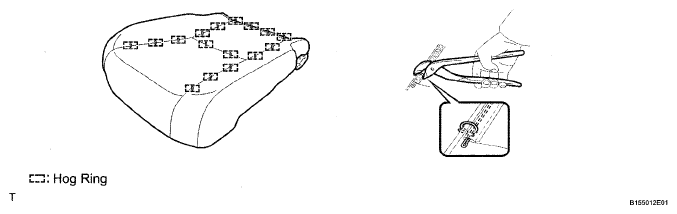

Fig 27: Installing Seat Cushion Cover To Seat Cushion Pad With Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
  - As the front passenger side seat has an occupant classification system, its front seat cushion assembly cannot be disassembled.
  - If replacing the front passenger side seat, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
INSTALL FRONT SEAT CUSHION FRAME SUB-ASSEMBLY LH
NOTE:
- As the front passenger side seat has an occupant classification system, its front seat cushion assembly cannot be disassembled.
- If replacing the front passenger side seat, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
1. Install the seat cushion frame with the 4 clips.
2. Attach the hooks.

  Fig 28: Locating Seat Cushion Frame Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (CUSHION SIDE) (w/ Climate Control Seat System)
1. Install the climate control controller with the 2 screws.

  Fig 29: Identifying Climate Control Controller Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

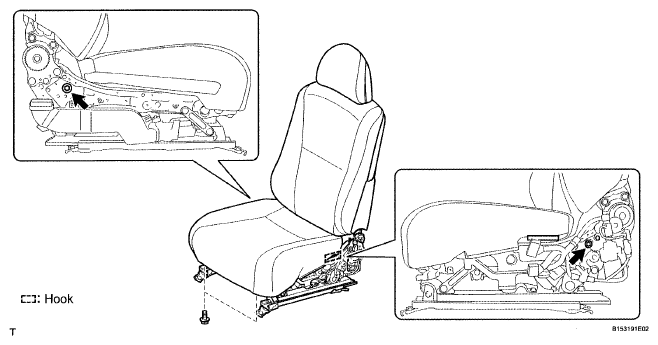

INSTALL FRONT SEAT CUSHION ASSEMBLY LH

Fig 30: Identifying Front Seat Cushion Assembly Hook And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the seat cushion assembly with the 4 bolts and attach the hook.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
2. for Front Passenger Side:
  Connect the connector.

  Fig 31: Locating Connector (Front Passenger Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 clips.

  Fig 32: Locating Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/ Climate Control Seat System:
  1. Attach the 2 claws and connect the climate control duct.
  2. Connect the connector and install the connector clamp.

    Fig 33: Locating Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the 2 connectors and install the wire harness clamp.

    Fig 34: Locating Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Connect the duct of the climate control blower and install the 3 screws.

    Fig 35: Identifying Climate Control Blower With Mounting Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Attach the 2 claws and install the air duct.

    Fig 36: Identifying Air Duct Claws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH
1. Install the interior illumination light with the screw.

  Fig 37: Locating Interior Illumination Light Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 hooks and install the seatback board.
3. Connect the interior illumination light wire harness connector.
4. Install the interior illumination light wire harness clamp.
5. Install the 2 screws.

  Fig 38: Identifying Hooks And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SHIELD INNER LH
1. Attach the claw and install the cushion shield inner.
2. Install the 3 screws.
Fig 39: Identifying Front Seat Cushion Shield Inner Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT SEAT CUSHION SHIELD FRONT LH
1. Install the cushion shield with the 4 screws.

  Fig 40: Identifying Cushion Shield Front Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT HINGE COVER LH
1. Install the hinge cover with the 2 screws.

  Fig 41: Identifying Front Seat Hinge Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 1 SEAT SHIELD SET BRACKET
1. Install the bracket with the 2 screws.

  Fig 42: Identifying Seat Shield Set Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY
1. Install the position control ECU and switch with the 4 screws.

  Fig 43: Identifying Screws On Position Control ECU And Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION SHIELD LH
1. Connect the 2 connectors.
2. Attach the 2 claws in the order shown in the illustration, and install the cushion shield.
3. Install the 3 screws.

  Fig 44: Identifying Front Seat Cushion Shield Claws Installing Order
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the rubber band of the front seatback board to the seat adjuster.

  Fig 45: Identifying Rubber Bands Of Seatback Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
