Front Seat Assembly: Removal

CAUTION: Wear protective gloves. Sharp areas on the seat adjuster and seat cushion frame may injure your hands.

HINT:

Use the same procedures for the LH side and RH side.
The procedure listed below are for the LH side.

REMOVE COWL TOP VENTILATOR LOUVER RH (See REMOVAL )
DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH
1. Operate the power seat switch (slide switch) to move the seat to the foremost position.
2. Pull the seat belt anchor cover cap in the direction indicated by the arrow in the illustration to remove it.

  Fig 1: Pulling Seat Belt Anchor Cover Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and outer belt anchor.

  Fig 2: Identifying Outer Belt Anchor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. for Front Passenger Side: Disconnect the connector.

  Fig 3: Locating Outer Belt Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT ASSEMBLY LH
1. Disable the AUTO TILT AWAY function by changing the customize parameter (see CUSTOMIZE PARAMETERS ).
  NOTE: Record the current customize parameter setting (whether the AUTO TILT AWAY function is enabled or disabled) in order to restore the current setting after finishing the operation.

  HINT:

  Performing the above operation causes the AUTO TILT AWAY function to be disabled when the engine switch is turned off.
2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.
3. Turn the engine switch off.
4. Using a screwdriver, detach the 4 claws and remove the 2 seat track covers.
  HINT:

  Tape the screwdriver tip before use.

  Fig 4: Removing Seat Track Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts.
6. Operate the power seat switch (slide switch) to move the seat to the rearmost position.

  Fig 5: Identifying Power Seat Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Using a screwdriver, detach the 4 claws and remove the 2 seat track covers.
  HINT:

  Tape the screwdriver tip before use.

  Fig 6: Removing Seat Track Covers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the 2 bolts.
9. Operate the power seat switch (slide switch) and move the seat to the center position, and operate the power seat switch (reclining switch) and move the seatback to the upright position.
10. Operate the power seat switch (reclining switch) to the reclining side for approximately 3 seconds.
11. Disconnect the cable from the battery negative (-) terminal.

  Fig 7: Identifying Power Seat Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
12. Place protective tape as shown in the illustration.

  Fig 8: Identifying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. Disconnect the 4 connectors under the seat.
  NOTE: Make sure the center pillar does not contact the power seat switch knob.

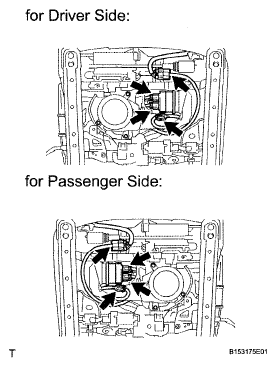

  Fig 9: Locating Connectors Under Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. Remove the front seat assembly as shown in the illustration.
  NOTE:
  - Make sure the center pillar does not contact the power seat switch knob.
  - Make sure the seatback does not contact the shift lever knob.
  - Be careful not to damage the vehicle body.
  HINT:

  Remove the seat assembly through the door frame so that it passes under the steering wheel.
