Lumbar Support Adjuster Assembly: Components

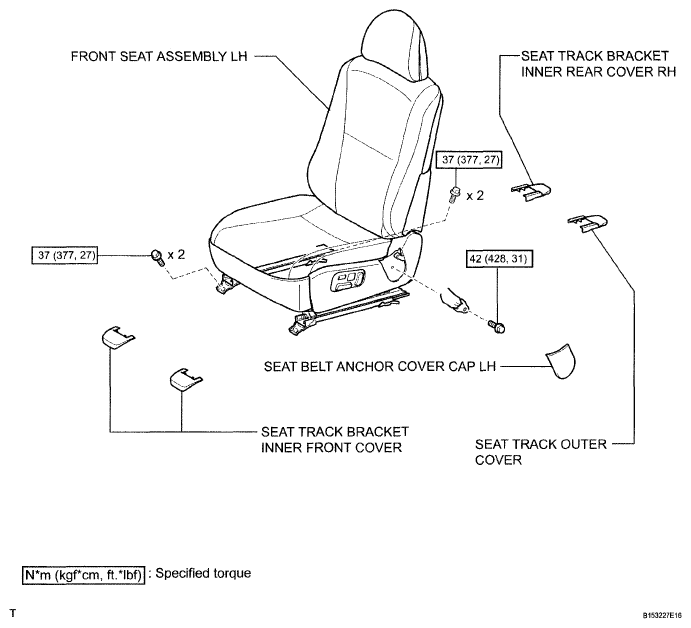

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G04953148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

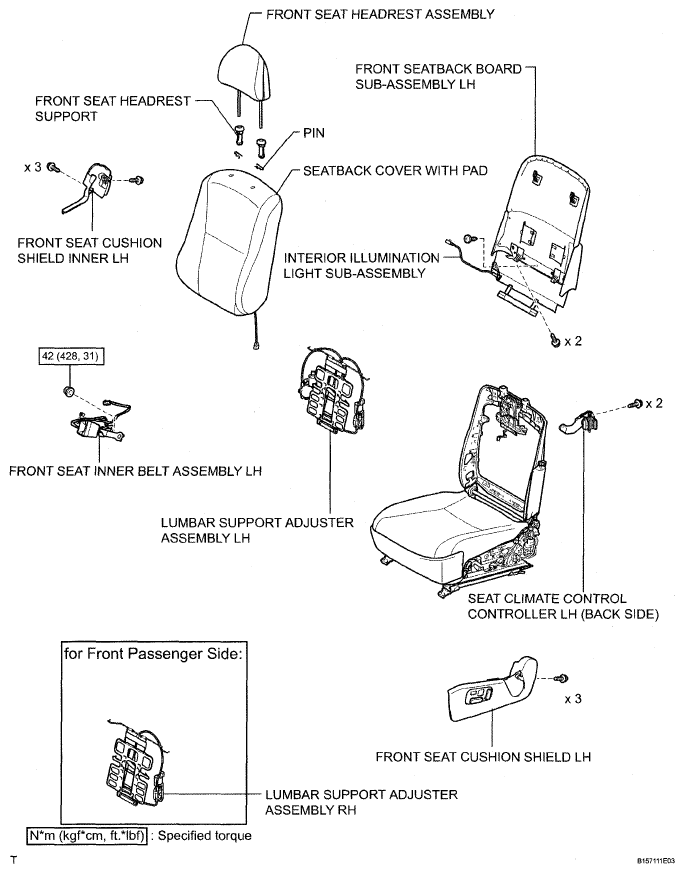

Fig 2: Lumbar Support Adjuster Assembly Replacement Components With Torque Specifications
G04953149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
