Lumbar Support Adjuster Assembly: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedure listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

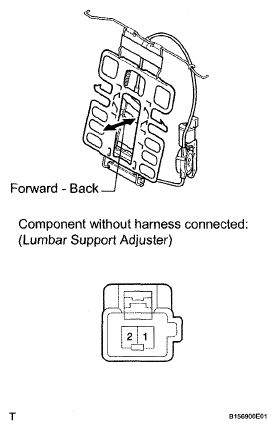

  Fig 1: Checking Lumbar Support Adjuster Operation (Forward - Back)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
   1. Install the lumbar support adjuster and attach the 4 clamps.
   2. for Driver Side:
      1. Install the 2 motors with the 4 bolts.
      2. Connect the 2 connectors.
   3. for Passenger Side:
      1. Install the motor with the 2 bolts.
      2. Connect the connector.
         Fig 2: Identifying Lumbar Support Adjuster Bolts

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (BACK SIDE) (w/ Climate Control Seat System)
   1. Install the climate control controller with the 2 screws.
      Fig 3: Locating Seat Climate Control Controller Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL SEATBACK COVER WITH PAD
   1. Install the seatback cover (with pad) to the seatback frame and attach the hooks and install the 2 clips.
      Fig 4: Identifying Seatback Cover Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. w/ Climate Control Seat System:

      Connect the connector.

      Fig 5: Locating Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. for Front Passenger Side:
      1. Install the power seat switch and attach the 2 claws.
      2. Connect the connector.
         Fig 6: Identifying Power Seat Switch Claws

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the seatback cover bracket with the bolt.
      Fig 7: Identifying Seatback Cover Bracket Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

4. INSTALL FRONT SEAT HEADREST SUPPORT  (See REASSEMBLY  )
5. INSTALL FRONT SEAT HEADREST ASSEMBLY  (See REASSEMBLY  )
6. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH  (See REASSEMBLY  )
7. INSTALL FRONT SEAT CUSHION SHIELD INNER LH  (See REASSEMBLY  )
8. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH  (See INSTALLATION )
9. INSTALL FRONT SEAT CUSHION SHIELD LH  (See REASSEMBLY  )
10. INSTALL FRONT SEAT ASSEMBLY LH
    1. Install the front seat assembly (see REASSEMBLY  ).
