System Diagram

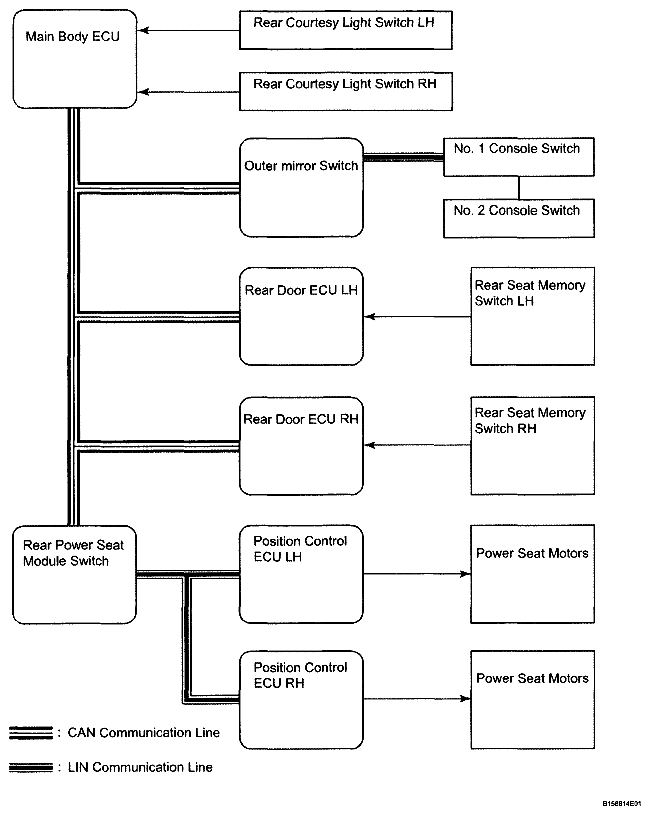

Fig 1: Rear Power Seat Control System Diagram

G04952501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Rear Door ECU LH	Position Control ECU LH	Rear seat memory switch LH SET ON signal Rear seat memory switch LH M ON signal Rear seat memory switch LH C ON signal	CAN, LIN
Rear Door ECU RH	Position Control ECU RH	Rear seat memory switch RH SET ON signal Rear seat memory switch RH M ON signal Rear seat memory switch RH C ON signal	CAN, LIN
Main Body ECU	Position Control ECU LH	Rear door courtesy switch LH signal	CAN, LIN
Main Body ECU	Position Control ECU RH	Rear door courtesy switch RH signal	CAN, LIN
Rear Power Seat Module Switch	Position Control ECU LH	Rear seat LH activation command signal	LIN
Rear Power Seat Module Switch	Position Control ECU RH	Rear seat RH activation command signal	LIN
Rear Power Seat Module Switch	Front Power Seat Switch RH	Power seat switch signal	CAN
