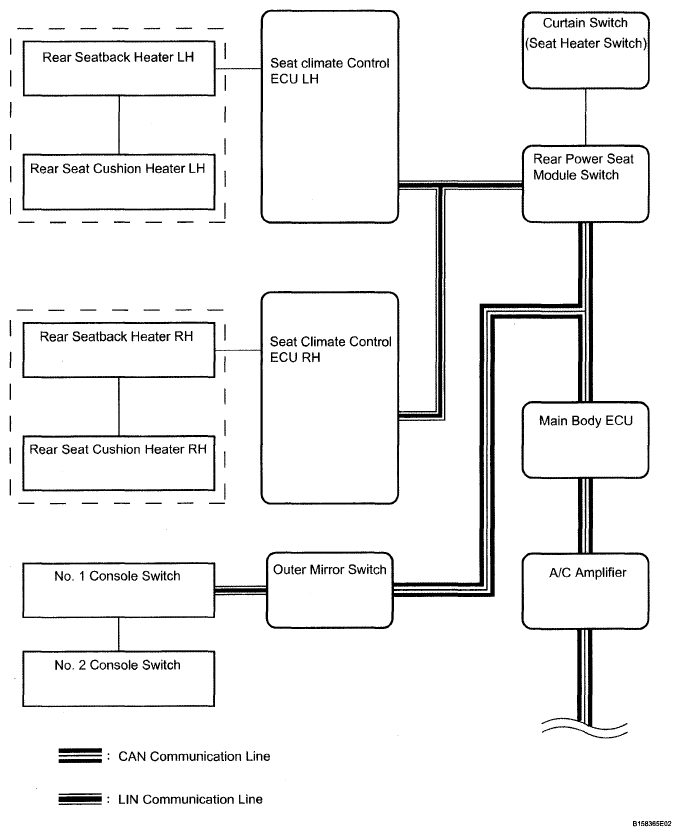

System Diagram
Communication table
COMMUNICATION CHART
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Rear power seat module switch | Climate control ECU | Seat heater signal | LIN line |
| Seat heater switch | Rear power seat module switch | Seat heater signal | Serial line |
| Outer mirror switch | Rear power seat module switch | Seat heater signal | CAN line |
| Rear power seat module switch | A/C amplifier | Voltage signal | CAN line |
