DTC B2312: Power Window Switch Malfunction: Wiring Diagram

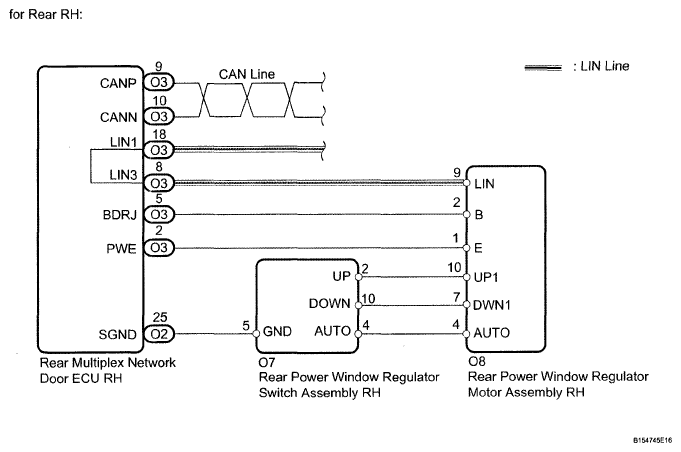

Fig 1: Identifying Power Window Switch Malfunction - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

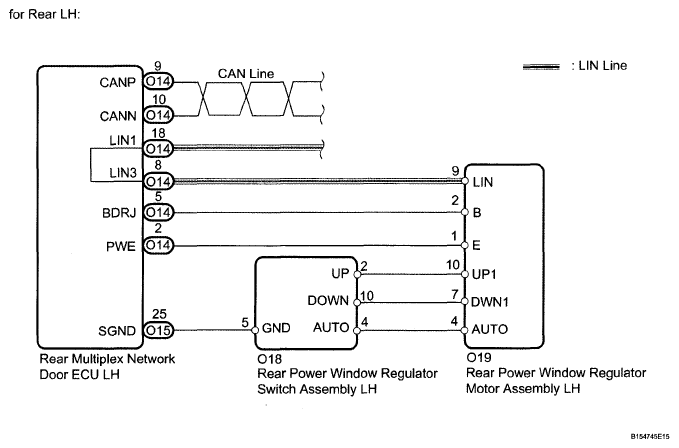

Fig 2: Identifying Power Window Switch Malfunction - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

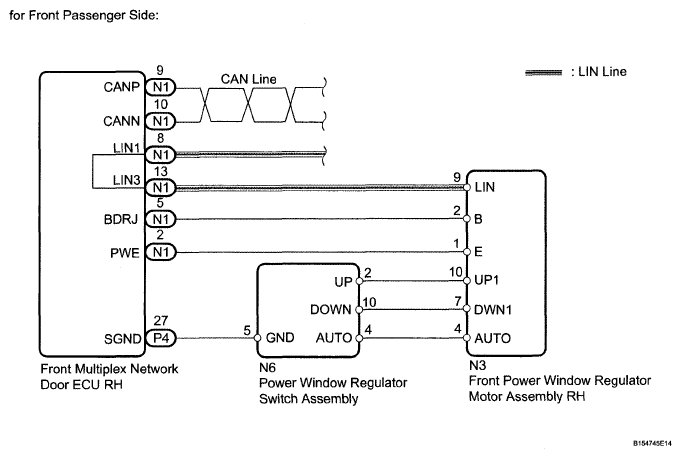

Fig 3: Identifying Power Window Switch Malfunction - Wiring Diagram (3 Of 4)

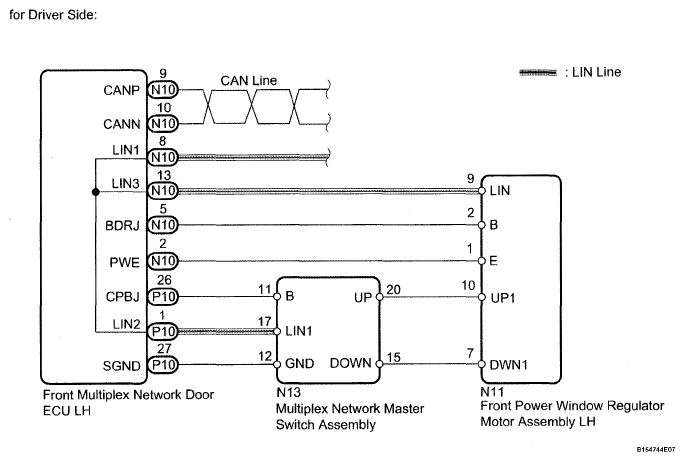

Fig 4: Identifying Power Window Switch Malfunction - Wiring Diagram (4 Of 4)
