Front Passenger Side Power Window Auto Up/Down Function Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

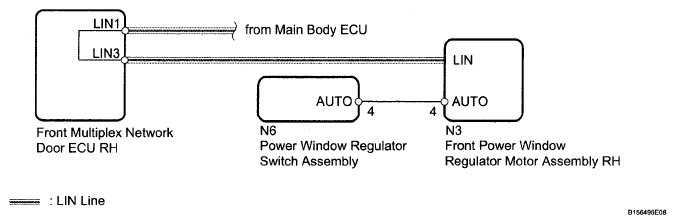

Fig 1: Identifying N6 Power Window Regulator Switch Assembly - Wiring Diagram
G05853313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
