Key-off Operation Function Operates Even If Operating Conditions Are Not Satisfied: Wiring Diagram

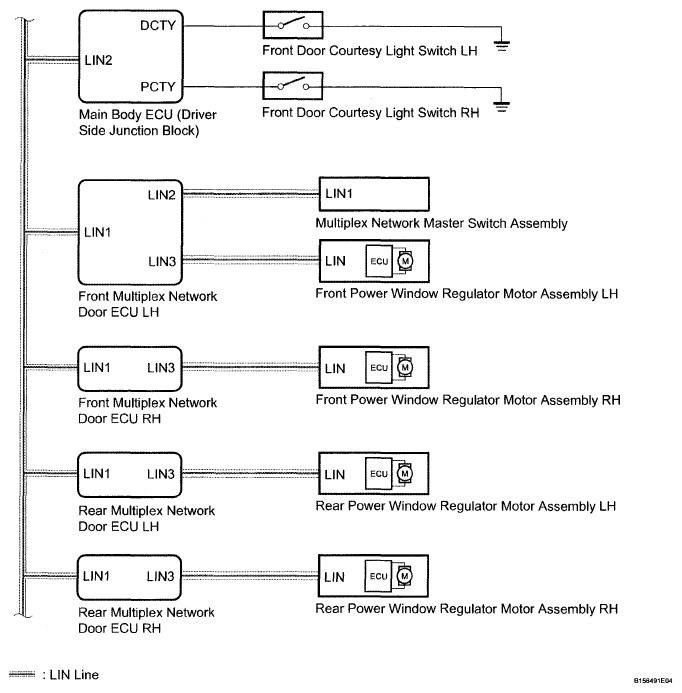

Fig 1: Identifying Key-Off Operation Function - Wiring Diagram
G05853322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
