Parking Brake Assembly: Components

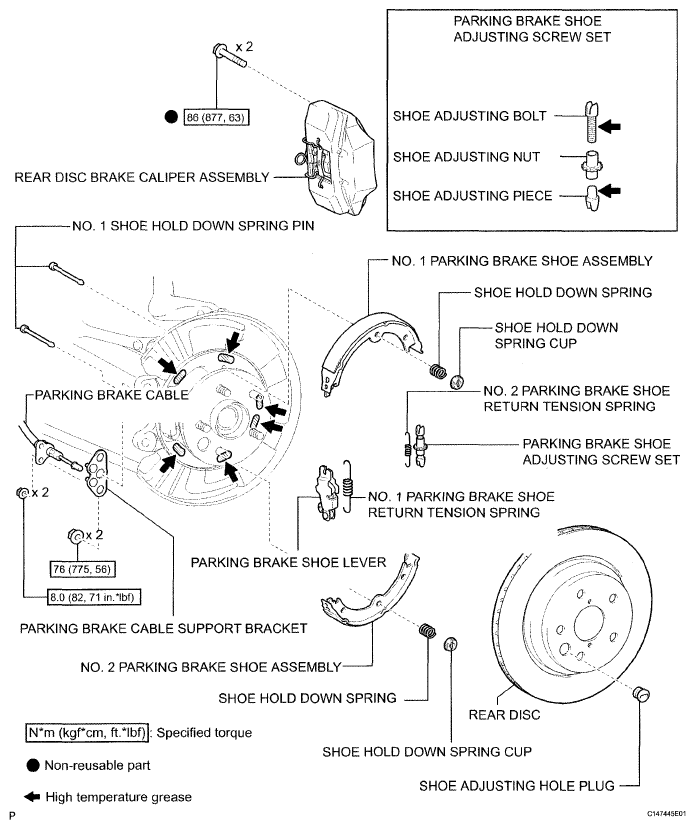

Fig 1: Identifying Parking Brake Replacement Components With Torque Specifications (1 Of 3)
G04950018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

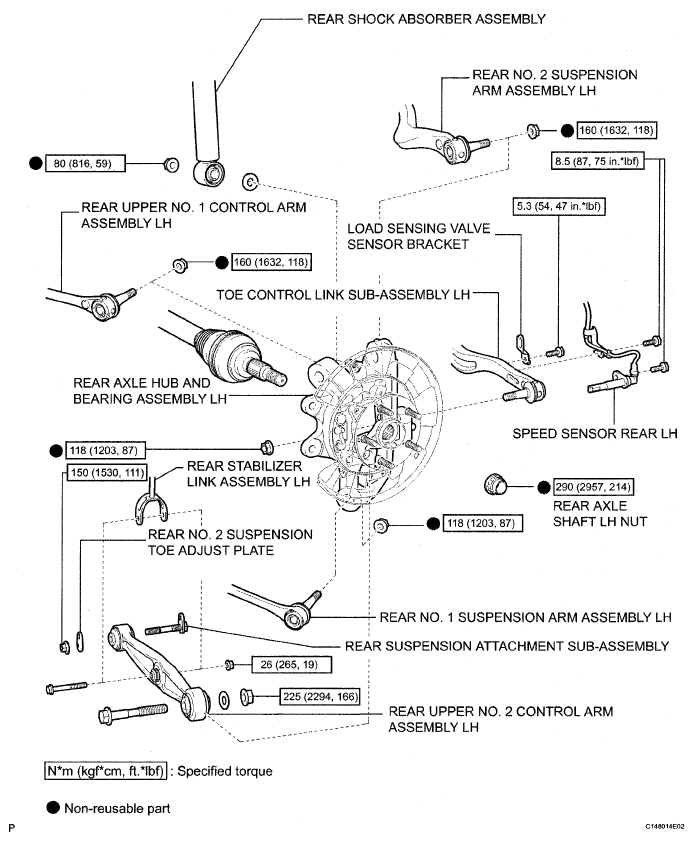

Fig 2: Identifying Parking Brake Replacement Components With Torque Specifications (2 Of 3)
G04950019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

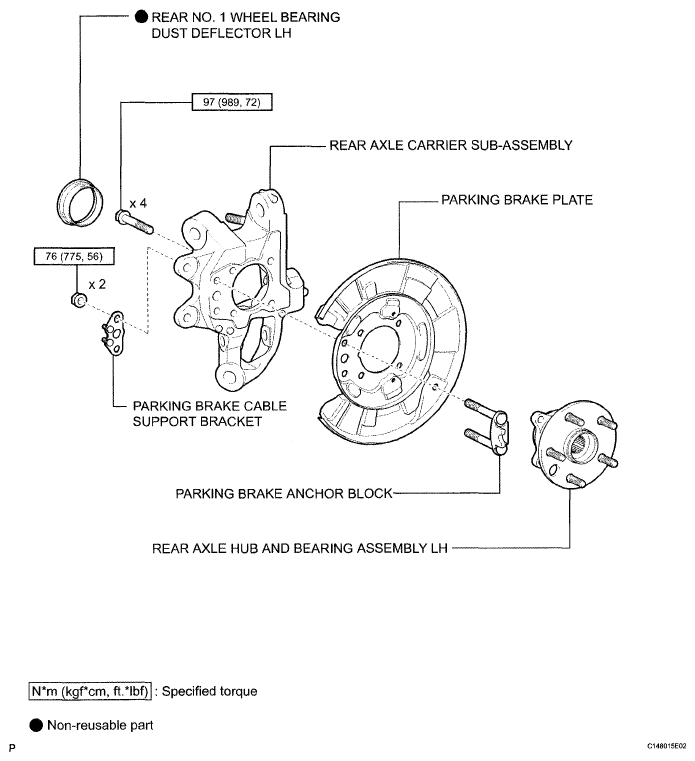

Fig 3: Identifying Parking Brake Replacement Components With Torque Specifications (3 Of 3)
G04950020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
