Power Trunk Opener and Closer: Notes

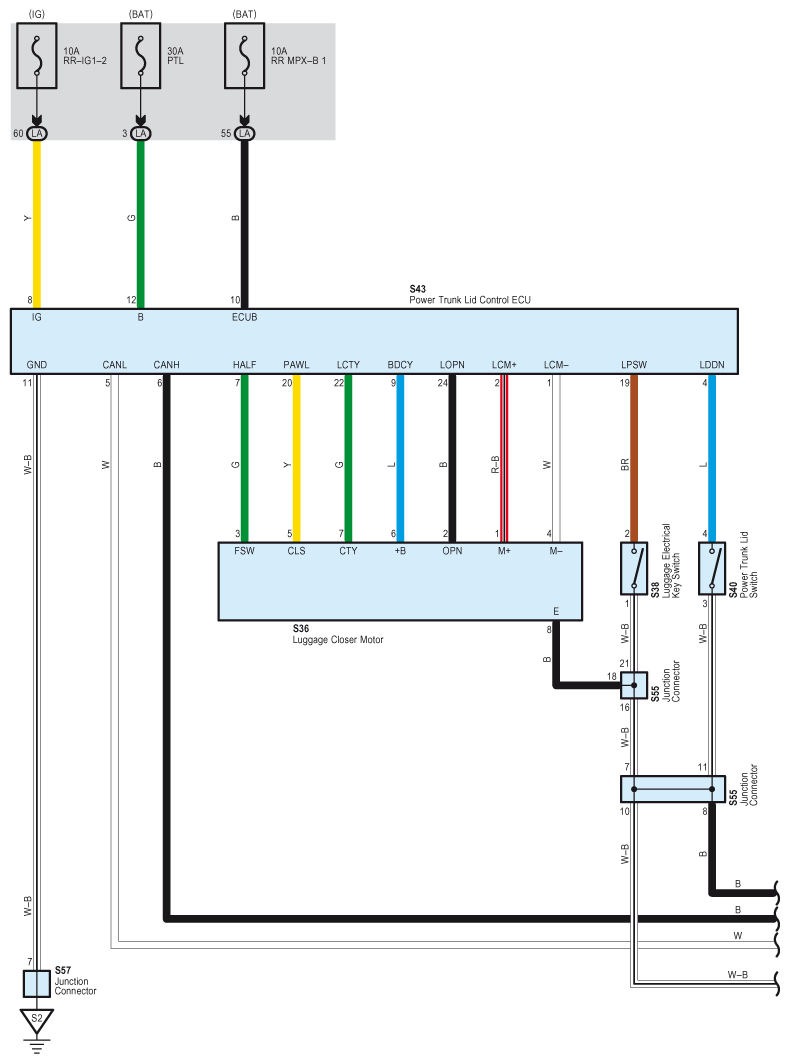

Fig 1: Power Trunk Opener And Closer - Circuit Diagram (1 Of 5)
G07598376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Trunk Opener And Closer - Circuit Diagram (2 Of 5)
G07598377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

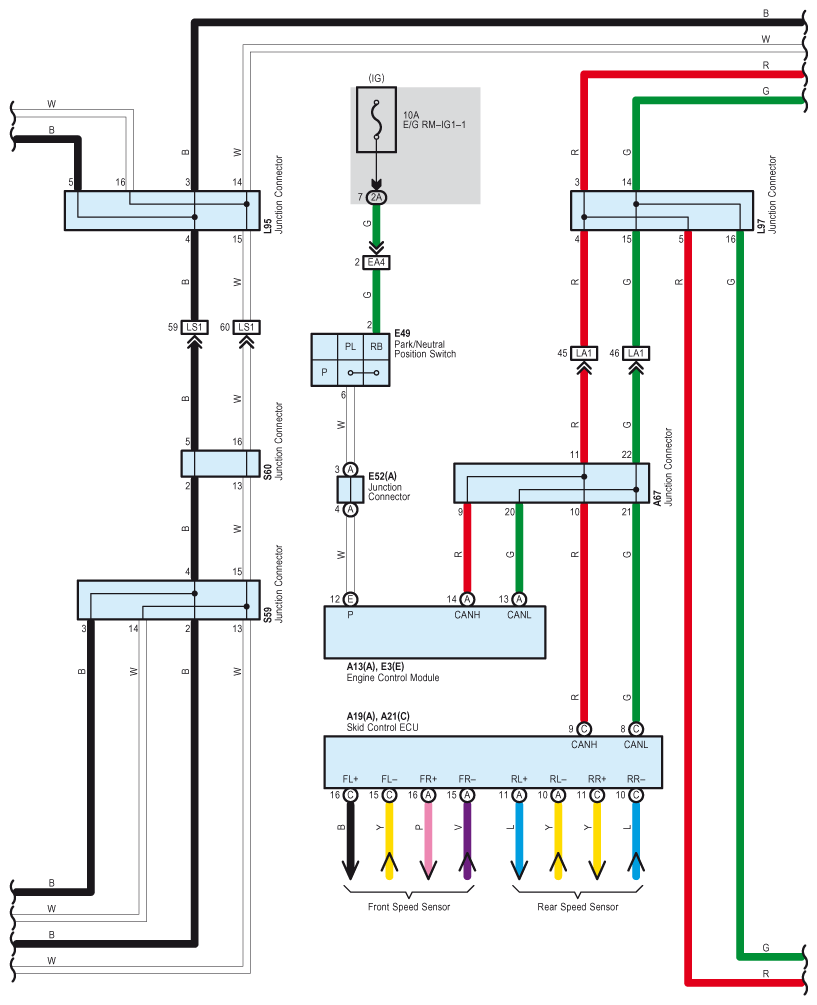

Fig 3: Power Trunk Opener And Closer - Circuit Diagram (3 Of 5)
G07598378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

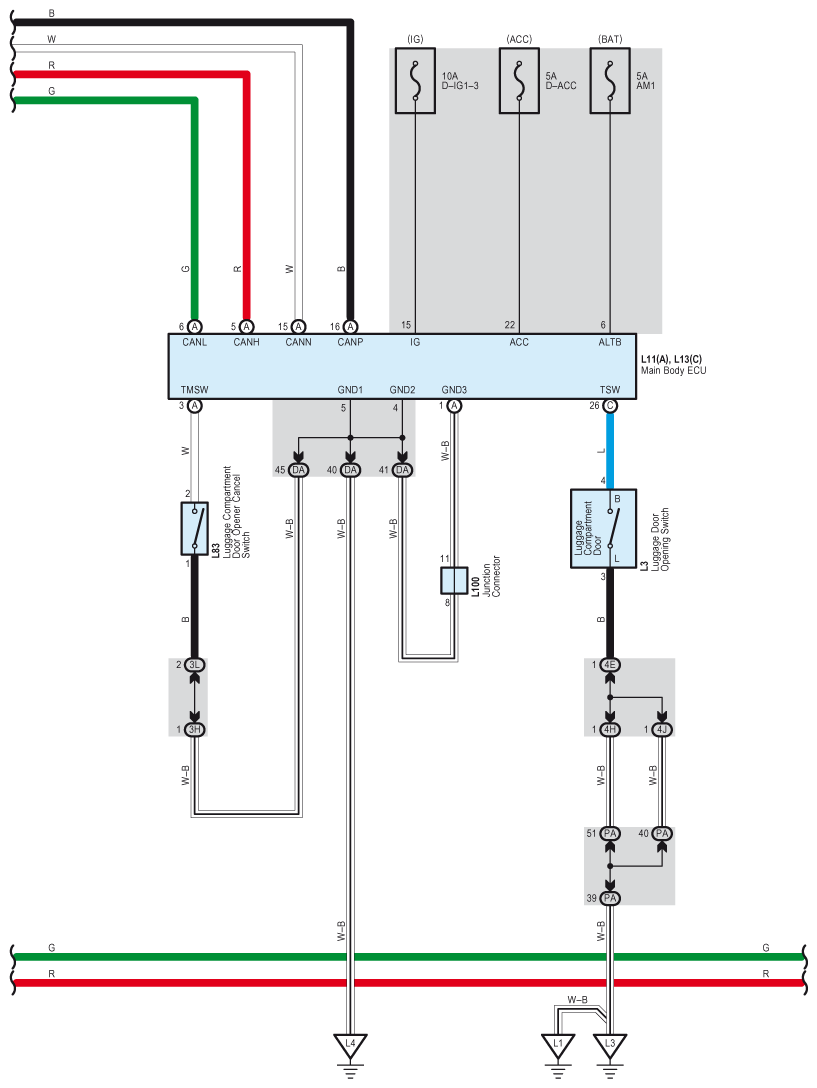

Fig 4: Power Trunk Opener And Closer - Circuit Diagram (4 Of 5)
G07598379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Power Trunk Opener And Closer - Circuit Diagram (5 Of 5)
G07598380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
