Other Systems: Clock: Components

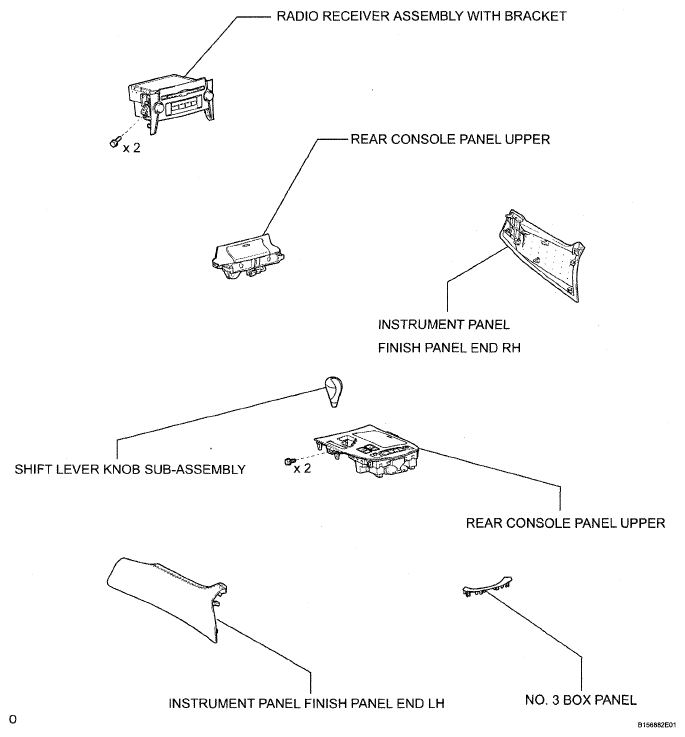

Fig 1: Identifying Clock Components (1 Of 2)
G04945884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

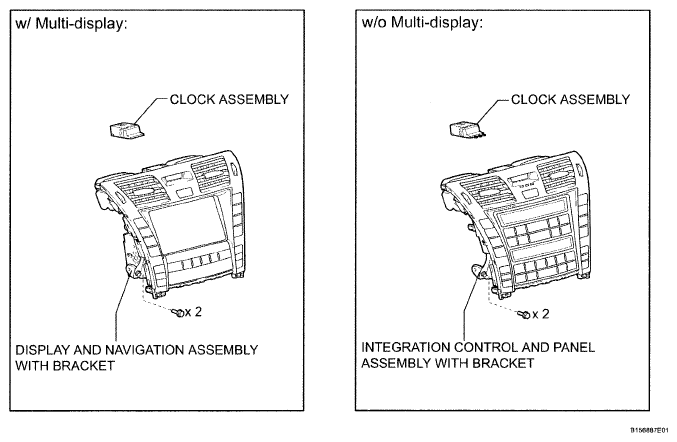

Fig 2: Identifying Clock Components (2 Of 2)
G04945885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
