DTC B2286 Runnable Signal Malfunction: Wiring Diagram

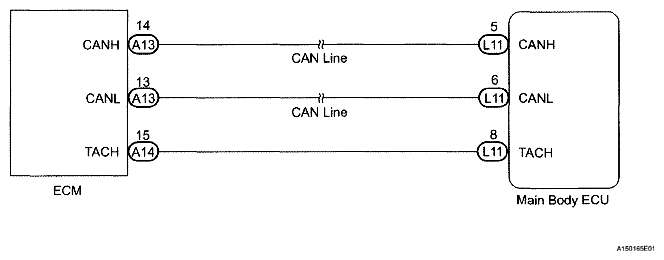

Fig 1: Runnable Signal Malfunction - Wiring Diagram
G04943856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
