HDD Navigation Map Update Process (SS007-07)

Publication date: 2008-01-31
Reference number: SS007-07

HDD NAVIGATION MAP UPDATE PROCESS

HDD NAVIGATION MAP UPDATE PROCESS

Technical Service Bulletin

Reference Number(s): SS007-07, Date of Issue:  January 31, 2008
Affected Models: 2007-08 LS 460/460L & 2008 LS 600h & 2008 LX 570
Section: SPECIAL SERVICE TOOLS
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002
Superceded Bulletin(s): SS007-07, Date of Issue:  October 26, 2007
NOTE: TSB REVISION NOTICE: January 31, 2008: 2008 model year LX 570 has been added to Applicable Vehicles. Previous versions of this TSB should be discarded.

Introduction

Lexus models equipped with Hard Disk Drive (HDD) Navigation require a Special Service Tool and follow a unique process for updating map, points of interest, and system software. Instead of individual DVDs installed into the vehicle, all Map Data is uploaded directly to the HDD system.

Map Data will be released annually through the direct shipment of two Map Data DVDs to each dealership service manager. The annual Map Data release must then be installed onto the Navigation Update Tool. Individual map updates are then loaded into vehicles with special map security keys. These keys are available through the normal parts ordering system. Keys are loaded onto the Navigation Update Tool through a PC or TIS techstream unit using software found on the Technical Information System (TIS).

Follow the procedures listed in this bulletin to:

NOTE:
  • In order to perform the procedures outlined in this TSIB, you MUST have completed the setup procedure.
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).
  • For additional details, refer to the Navigation Update Tool Operator's Manual on TIS.

Applicable Vehicles

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME QTY
N/A PT219-HDDMP-07 HDD Map Key 1

Required Materials

REQUIRED MATERIALS

MATERIAL PART NUMBER QTY
HDD Map Disc(1) 00230-HDDMP-DSC07 1
(1) Essential SSTs.
NOTE: *For additional Map Discs, order from the Materials Distribution Center (MDC) through the Dealer Daily Dealer Support Materials System, or by calling the MDC at 1-800-622-2033.

Required Tools & Equipment

REQUIRED TOOLS & EQUIPMENT

REQUIRED EQUIPMENT SUPPLIER PART NUMBER QTY
TIS techstream*
G05443992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 ADE TSUNT 1
REQUIRED SPECIAL SERVICE TOOLS

REQUIRED SPECIAL SERVICE TOOLS (SSTs) SUPPLIER PART NUMBER QTY DRW(2)
Navigation Update Tool (1)
G05443993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 SPX/OTC 95079-00002-KIT 1 8
(1) Essential SSTs.

(2) Drawer number in SST Storage System.

Version Verification

Before performing a Map update, verify the version of Map Data on the Navigation Update Tool and on the vehicle's Navigation System.

Check Map Data version on Navigation Update Tool:

  1. Open the Navigation Programs Installer.
    NOTE:
    • When properly installed, the Navigation Programs Installer icon will be found on the TIS techstream desktop.
    Fig 1: Identifying Navigation Programs Installer Icon
    G05443994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Click Version Check.
    Fig 2: View Of Navigation Programs Installer Display - Version Check
    G05443995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the Navigation Update Tool.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    4. Press Continue.
    Fig 3: View Of Navigation Programs Installer Display - Continue
    G05443996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Compare the Map version with the Map version shown on the DVD.
NOTE:
  • If the Map version on the Navigation Update Tool is the same as shown on the DVD, then go to the "SECURITY KEY LOAD " section in this TSIB.
  • If the Map version on the Navigation Update Tool is NOT the same as shown on the DVD, then go to the "TOOL LOAD " section in this TSIB.
Fig 4: View Of Navigation Programs Installer Display - Version Check
G05443997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check Map Data version on Vehicle HDD Navigation System:

NOTE: Prior to connecting to the vehicle you MUST disconnect navigation update tool from the PC.
  1. Connect the Navigation Update Tool to vehicle.
    1. Make sure IEEE1394 cable is secured in both the Navigation Update Tool and the vehicle connector.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    Fig 5: Connecting Navigation Update Tool To Vehicle
    G05443998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Turn vehicle ignition ON (engine OFF).
  3. From the multi-information display, press I Agree.
    Fig 6: View Of Multi-Information Display - I Agree
    G05443999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Press the "MENU" button.
    Fig 7: Identifying MENU Button
    G05444000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. From the multi-information display, press HDD Data.
    Fig 8: View Of Multi-Information Display - HDD Data
    G05444001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Compare the Map Data version on the Navigation System to that on the Navigation Update Tool.
Fig 9: View Of Multi-Information Display - Map Data Version
G05444002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
  • If the Map version on the Navigation System is the same as shown on the navigation update tool, then the vehicle does NOT need the update.
  • If the Map version on the Navigation System is NOT the same as shown on the navigation update tool, then go to the "TOOL LOAD " section in this TSIB.

Tool Load

NOTE: There are three separate processes used to update the Map Data on the vehicle:
  • Loading the Map Data onto the Navigation Update Tool
  • Loading the Map Data security key onto the Navigation Update Tool
  • Loading the Map Data into the vehicle HDD Navigation System

    If the Map version on the Navigation Update Tool is the same as shown on TIS, then go to the "SECURITY KEY LOAD " section in this TSIB.

    If the Map version on the Navigation Update Tool is NOT the same as shown on TIS, then follow the instructions below.

Loading Map Data onto Navigation Update Tool

NOTE: Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).
  1. Open the Navigation Programs Installer.
    NOTE:
    • When properly installed, the Navigation Programs Installer icon will be found on the TIS techstream desktop.
    Fig 10: Identifying Navigation Programs Installer Icon
    G05444003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Select Load Map Data.
    Fig 11: View Of Navigation Programs Installer Display - Load Map Data
    G05444004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the Navigation Update Tool.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    4. Press Continue.
    Fig 12: View Of Navigation Programs Installer Display - Continue
    G05444005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Insert Map Disk 1 into the CD/DVD-ROM drive.
    Fig 13: View Of Navigation Programs Installer Display - CD/DVD-ROM Drive
    G05444006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Allow Map Data to copy onto the PC hard drive (requires about 20 minutes).
    Fig 14: View Of Navigation Programs Installer Display - Load Map Data
    G05444007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If necessary:

    • Insert the additional Map Disk as instructed into the CD/DVD-ROM drive.
    • Allow the additional Map Data to copy onto the PC hard drive (requires about 20 minutes).

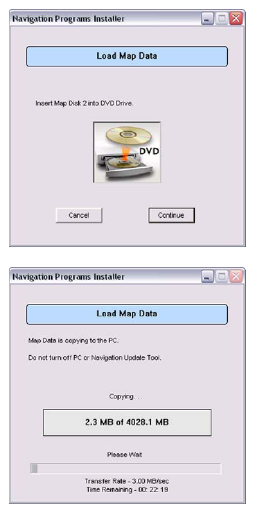

    Fig 15: View Of Navigation Programs Installer Display - Load Map Data
    G05444008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Verify the correct version of Map data to load onto the Navigation Update Tool.
    Fig 16: View Of Navigation Programs Installer Display - Load Map Data
    G05444009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Click Continue  to load Map Data onto the Navigation Update Tool.

    Map Data will then copy to the Navigation Update Tool (requires about 10 minutes).

    Fig 17: View Of Navigation Programs Installer Display - Load Map Data
    G05444010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Verify the Map Data is loaded onto the Navigation Update Tool and can now be used to update the vehicle.
    Fig 18: View Of Navigation Programs Installer Display - Load Map Data
    G05444011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Security Key Load

NOTE:
  • In order to load the Map Data onto the vehicle's Navigation System, you MUST load a security key EACH time.
  • The Navigation Update Tool will hold up to ten security keys. One key is required per vehicle update.
  • Storing keys on the Navigation Update Tool is NOT recommended.
  • Map Data MUST be loaded onto the Navigation Update Tool before a Key File can be loaded.
  • Before performing this procedure, disconnect all other USB peripheral and external storage devices (i.e., USB thumb drives, hard drives, cameras, mice, etc.).
  1. Open the Navigation Programs Installer.
    NOTE:
    • When properly installed, the Navigation Programs Installer icon will be found on the TIS techstream desktop.
    Fig 19: Identifying Navigation Programs Installer Icon
    G05444012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Select Load Key File.
    Fig 20: View Of Navigation Programs Installer Display - Load Key File
    G05444013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Connect the Navigation Update Tool.
    1. Make sure the USB cable is secured in both the PC and the Navigation Update Tool USB ports.
    2. Confirm that the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    4. Press Continue.
    Fig 21: View Of Navigation Programs Installer Display - Continue
    G05444014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Connect USB Key File and press Continue.
    Fig 22: View Of Navigation Programs Installer Display - Continue
    G05444015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Click Load to continue.
    Fig 23: View Of Navigation Programs Installer Display - Load
    G05444016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Allow the Key File to copy onto the Navigation Update Tool (requires about 5 seconds).
    Fig 24: View Of Navigation Programs Installer Display - Load Key File
    G05444017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Verify the Key File is loaded onto the Navigation Update Tool and can now be used to update the vehicle.
    Fig 25: View Of Navigation Programs Installer Display - Load Key File
    G05444018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • The Navigation Update Tool will hold up to ten security keys. One key is required per vehicle update.
    • Storing keys on the Navigation Update Tool is NOT recommended.

Vehicle Load

Loading Map Data onto vehicle HDD Navigation System

NOTE:
  • The Map Data security key MUST be loaded onto the Navigation Update Tool before Map Data can be loaded to the vehicle.
  • Prior to connecting to the vehicle you MUST disconnect navigation update tool from the PC.
  • Connect the battery charger to the vehicle prior to beginning process to ensure constant battery voltage.
  1. Connect the Navigation Update Tool to the vehicle.
    1. Make sure the IEEE1394 cable is secured in both the Navigation Update Tool and the vehicle connector.
    2. Confirm the Navigation Update Tool is powered correctly.
    3. Turn power ON.
    Fig 26: Connecting Navigation Update Tool To Vehicle
    G05444019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Turn vehicle ignition ON (engine OFF).
  3. From the multi-information display, press I Agree.
    Fig 27: View Of Multi-Information Display - I Agree
    G05444020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Press the "MENU" button.
    Fig 28: Identifying MENU Button
    G05444021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. From the multi-information display, press HDD Data.
    Fig 29: View Of Multi-Information Display - HDD Data
    G05444022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Press Map Data Update.
    Fig 30: View Of Multi-Information Display - Map Data Update
    G05444023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Press I Agree.
    Fig 31: View Of Multi-Information Display - I Agree
    G05444024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. Allow Map Data to copy (requires about 25 minutes).
    Fig 32: View Of Multi-Information Display - Map Data Update
    G05444025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Press OK.
  10. Disconnect the Navigation Update Tool from the vehicle.
Fig 33: View Of Multi-Information Display - OK
G05444026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
