Inspection Procedure

  1. INSPECT FUSE (D-IG1-1)
    1. Remove the D-IG1-1 fuse from the main body ECU.
    2. Measure the resistance of the fuse.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      D-IG1-1 fuse Always Below 1 Ω

    NG: REPLACE FUSE

    OK: Go to next step

  2. CHECK MULTIPLEX TILT AND TELESCOPIC ECU (IG TERMINAL VOLTAGE)
    1. Disconnect the L34 connector from the multiplex tilt and telescopic ECU.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      L34-8 (IG) - L34-11 (GND) Engine switch on (IG) 11 to 14 V
      Fig 1: Identifying L34 Multiplex Tilt And Telescopic ECU Connector
      G04950125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MULTIPLEX TILT AND TELESCOPIC ECU  (See REMOVAL  )

    NG: Go to next step

  3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L34-11 (GND) - Body ground Always Below 1 Ω
      Fig 2: Identifying L34 Multiplex Tilt And Telescopic ECU Connector
      G04950107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - MAIN BODY ECU)

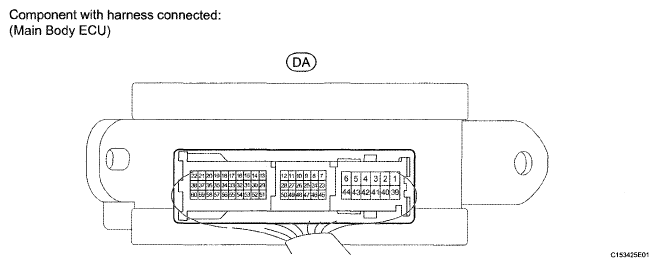

    Fig 3: Identifying Multiplex Tilt And Telescopic ECU - Main Body ECU Connector
    G04950127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      DA-21 - Body ground Engine switch on (IG) 11 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU - BATTERY)

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU MAIN BODY ECU)
