Inspection Procedure

HINT:

When the engine switch is off, the main body ECU may occasionally go into a non-active state called sleep mode. Therefore, before proceeding with the inspection, it is necessary to perform the following step to wake up the ECU:

With the engine switch off, open the driver door. Then (with the engine switch still off) open and close any door several times at 1.5 second intervals.

1. CHECK VEHICLE CONDITION
   1. Check the problem symptom of the steering lock system.

      Result

      RESULT CHART



      Condition	Proceed to
      Steering lock cannot be released	A
      Steering cannot be locked	B

   B: Go to step  6

   A: Go to next step

2. READ VALUE OF TECHSTREAM (STEERING LOCK COMMAND)
   1. Use the Data List to check if the steering lock command is functioning properly.

      Smart Access

      SMART ACCESS DATA LIST REFERENCE



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      Lock/Unlock Receive	Steering lock command reception record / YES or NO	YES: Steering lock/unlock signal received NO: Steering lock/unlock signal not received	-

      OK: YES is displayed on the Techstream screen.

   NG: CHECK SMART ACCESS SYSTEM WITH PUSH-BUTTON START  (See HOW TO PROCEED WITH TROUBLESHOOTING )

   OK: Go to next step

3. CHECK STEERING LOCK ACTUATOR
   1. Immediately after turning the engine switch on (IG), measure the voltage between terminals L33-3 (IGE) and L33-2 (SGND) of the steering lock actuator.

      Result

      RESULT CHART



      Result	Proceed to
      Below 1 V	A
      11 to 14 V (measured voltage never becomes below 1 V	B

      Fig 1: Identifying L33 Steering Lock Actuator Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )

   B: Go to next step

4. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR - MAIN BODY ECU)

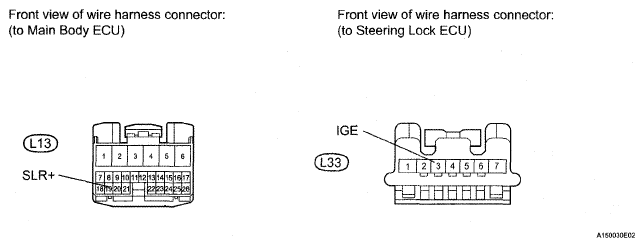

   Fig 2: Identifying L13 Main Body ECU And L33 Steering Lock Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the L13 main body ECU connector.
   2. Disconnect the L33 steering lock actuator connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      L.33-3 (IGE) - L13-19 (SLR+)	Always	Below 1 Ω
      L33-3 (IGE) or L13-19 (SLR+) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE MAIN BODY ECU

5. CHECK STEERING LOCK ACTUATOR (IGE VOLTAGE)
   1. Shift the shift lever to the P position.
   2. Turn the engine switch off.
   3. Open the driver side door.
   4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      L33-3 (IGE) - L33-2 (SGND)	Steering lock motor is operating	Below 1 V
      	Steering lock motor is not operating	11 to 14 V

      Fig 3: Identifying L33 Steering Lock Actuator Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )

   NG: Go to next step

6. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR - MAIN BODY ECU)
   Fig 4: Identifying L13 Main Body ECU And L33 Steering Lock Actuator Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the L13 main body ECU connector.
   2. Disconnect the L33 steering lock actuator connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      L33-3 (IGE) - L13-19 (SLR+)	Always	Below 1 Ω
      L33-3 (IGE) or L13-19 (SLR+) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE MAIN BODY ECU
