DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

INSTALLATION





1. INSTALL DOOR CONTROL RECEIVER

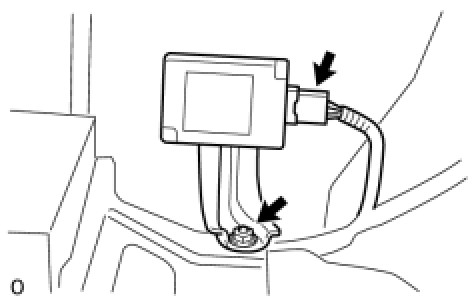

(a) Install the receiver with the nut.
(b) Connect the connector.
NOTE: When replacing or inspecting the door control receiver and wire harness, do not change the position or length of the wire harness. If the wire harness is too close to the door control receiver, entry and wireless function performance may be affected.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

3. INSTALL REAR FLOOR FINISH PLATE

4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

5. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler) Installation

6. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY Installation

7. INSTALL DECK TRIM SIDE BOARD RH

8. INSTALL ROPE HOOK ASSEMBLY

9. INSTALL ROPE HOOK

10. INSTALL BATTERY SERVICE HOLE COVER Hybrid Battery Service Switch

11. INSTALL BATTERY SERVICE HOLE COVER LH Battery

12. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
