Inspection Procedure

1. When the master switch's door control switch is operated, check that the locked doors unlock (see OPERATION CHECK  )

   OK: Locked doors unlock.

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next Step

1. Using the intelligent tester or Techstream, read the Data List (see DATA LIST / ACTIVE TEST  )
   1. Intelligent tester

      D-DOOR

      DIAGNOSTIC NOTE NORMAL CONDITION CHART



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      TRIGGER SW	Driver side door outside handle lock switch / ON or OFF	ON Driver side door outside handle lock switch is pushed OFF Driver side door outside handle lock switch is not pushed	-

   2. Techstream

      Driver Door

      DIAGNOSTIC NOTE NORMAL CONDITION CHART



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Outside Handle Trigger SW	Driver side door outside handle lock switch / ON or OFF	ON Driver side door outside handle lock switch is pushed OFF Driver side door outside handle lock switch is not pushed	-

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG:  Go to step  4

OK: Go to next Step

1. Replace the front door ECU LH with a new one or normally functioning one (see FRONT DOOR ).
2. Check that the entry function operates normally (See REMOVAL )

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU  (See REMOVAL )

OK: END (FRONT DOOR ECU LH IS DEFECTIVE)

1. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Switch Condition	Specified Condition
   b2-3 (TRG+) - b2-1 (TRG-)	ON	Below 1 Ω
   b2-3 (TRG+) - b2-1 (TRG-)	OFF	10 kΩ or higher

NG: REPLACE FRONT DOOR OUTSIDE HANDLE LH  (see FRONT DOOR )

Fig 1: Identifying Front Door Outside Handle LH Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next Step

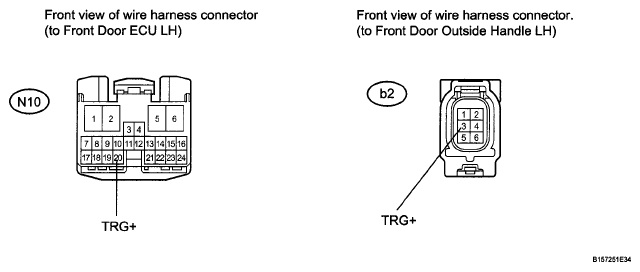

Fig 2: Identifying N10 ECU Connector Terminals And B2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the N10 ECU connector
2. Disconnect the b2 handle connector.
3. Measure the resistance according to the value (s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   N10-20 (TRG+) - b2-3 (TRG+)	Always	Below 1 Ω
   b2-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next Step

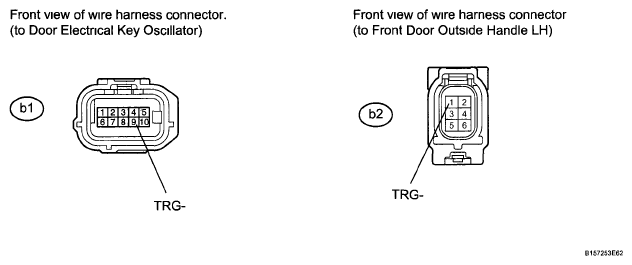

Fig 3: Identifying B1 Oscillator Connector Terminals And B2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b1 oscillator connector
2. Disconnect the b2 handle connector
3. Measure the resistance according to the value (s) in the table below

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   b1-9 (TRG-) - b2-1 (TRG-)	Always	Below 1 Ω
   b2-1 (TRG-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next Step

1. Replace the door electrical key oscillator with a new one or normally functioning one (see FRONT DOOR )
2. Check that the entry function operates normally (see OPERATION CHECK  )

   OK: Operates normally

NG: Go to step 8

OK: END (DOOR ELECTRICAL OSCILLATOR IS DEFECTIVE)

1. Replace the front door ECU LH with a new one or normally functioning one (see FRONT DOOR ).
2. Check that the entry function operates normally (see OPERATION CHECK  ).

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU  (See REMOVAL )

OK: END (FRONT DOOR ECU LH IS DEFECTIVE)
