Engine Control: Notes

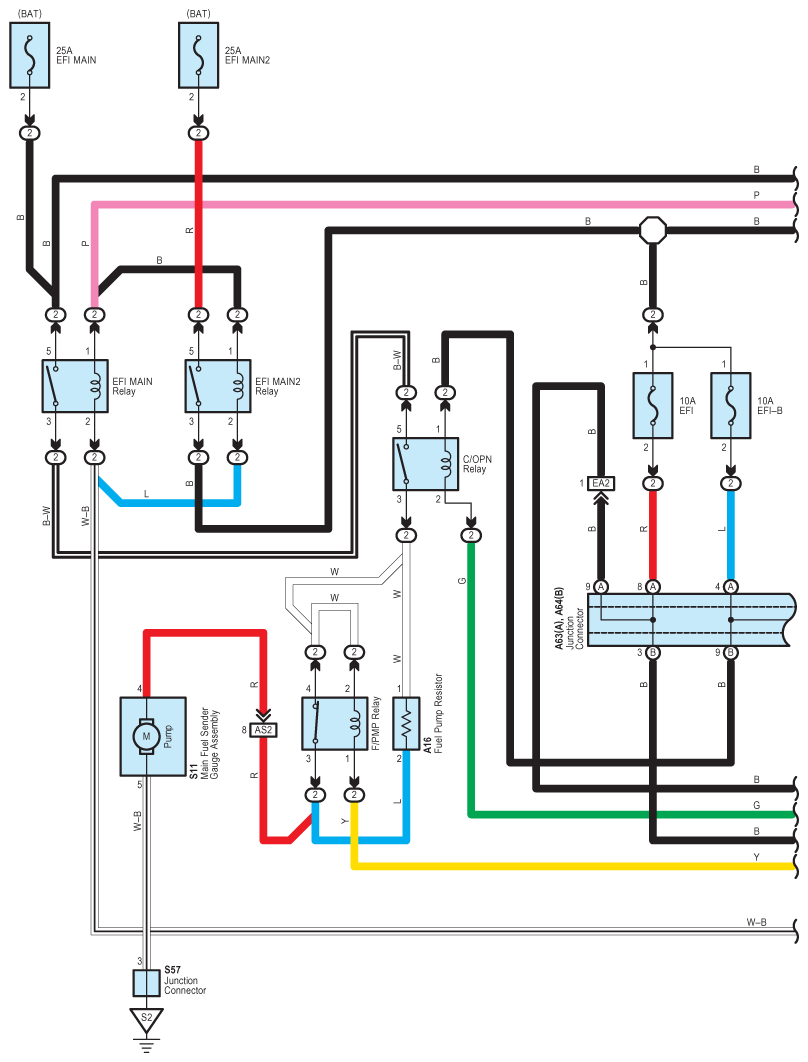

Fig 1: Engine Control - Circuit Diagram (1 Of 24)

G07592784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

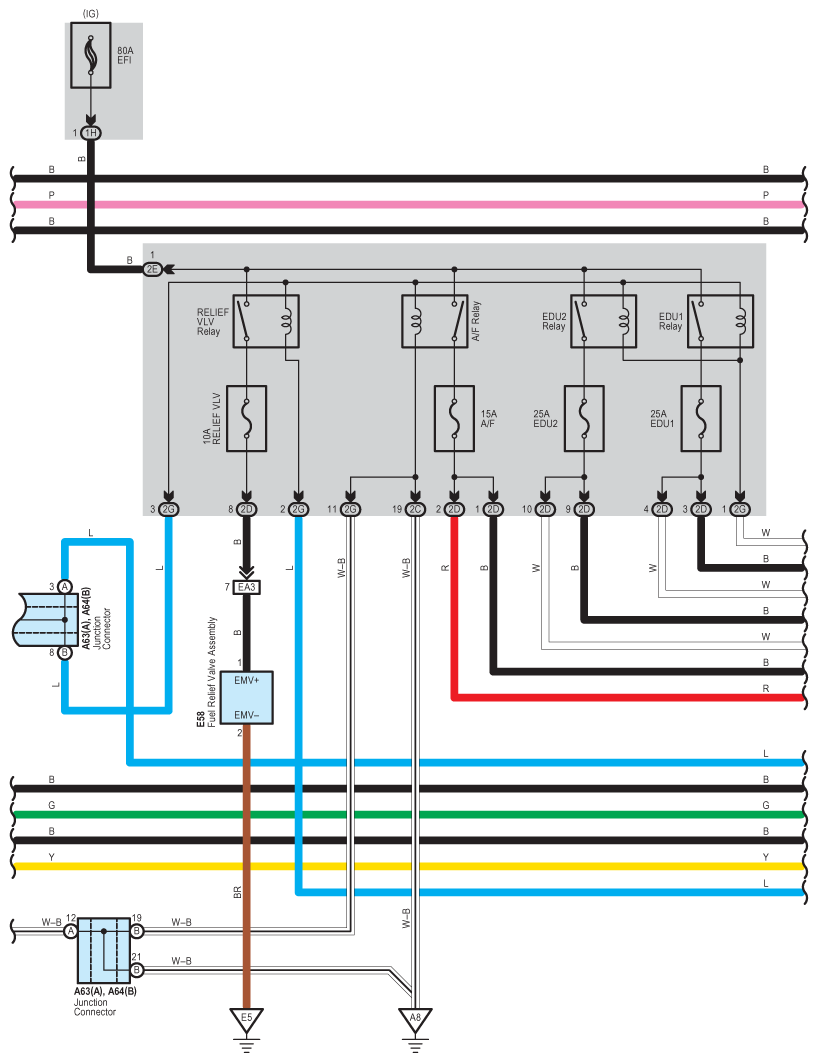

Fig 2: Engine Control - Circuit Diagram (2 Of 24)

G07592785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

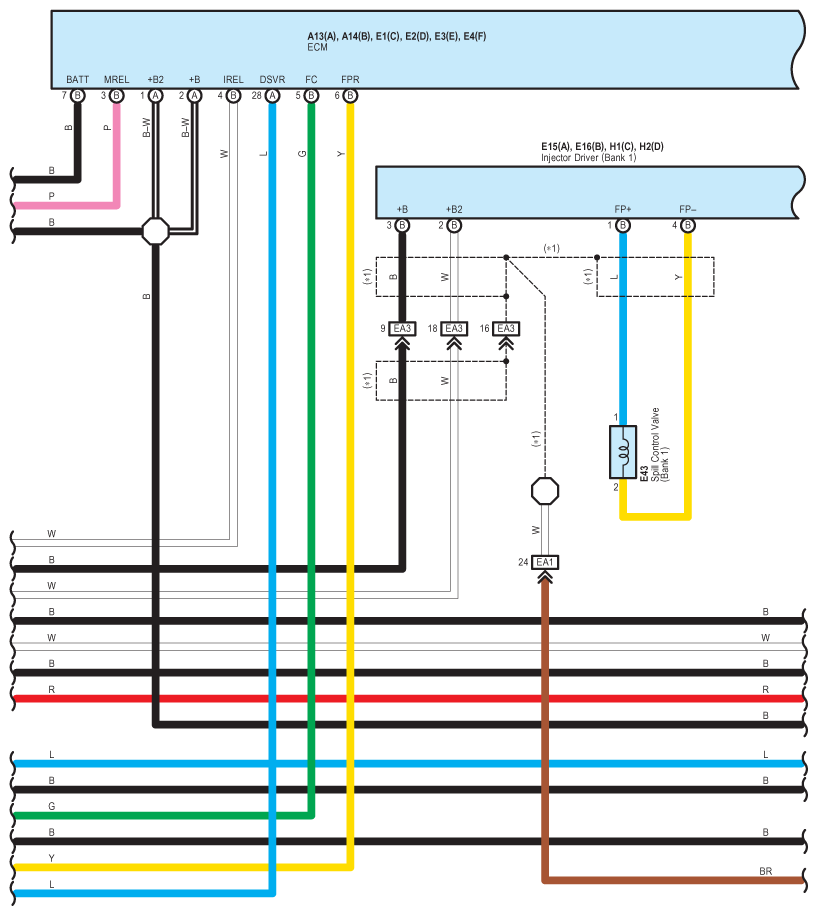

Fig 3: Engine Control - Circuit Diagram (3 Of 24)

G07592786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

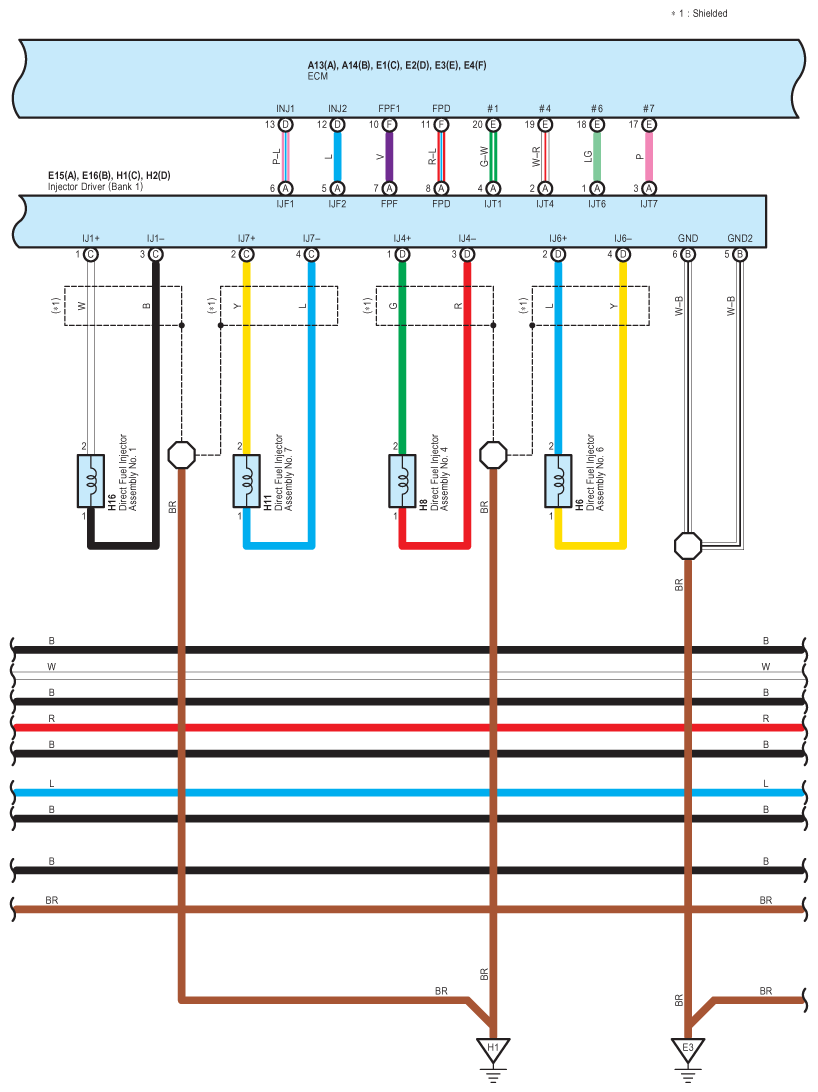

Fig 4: Engine Control - Circuit Diagram (4 Of 24)

G07592787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

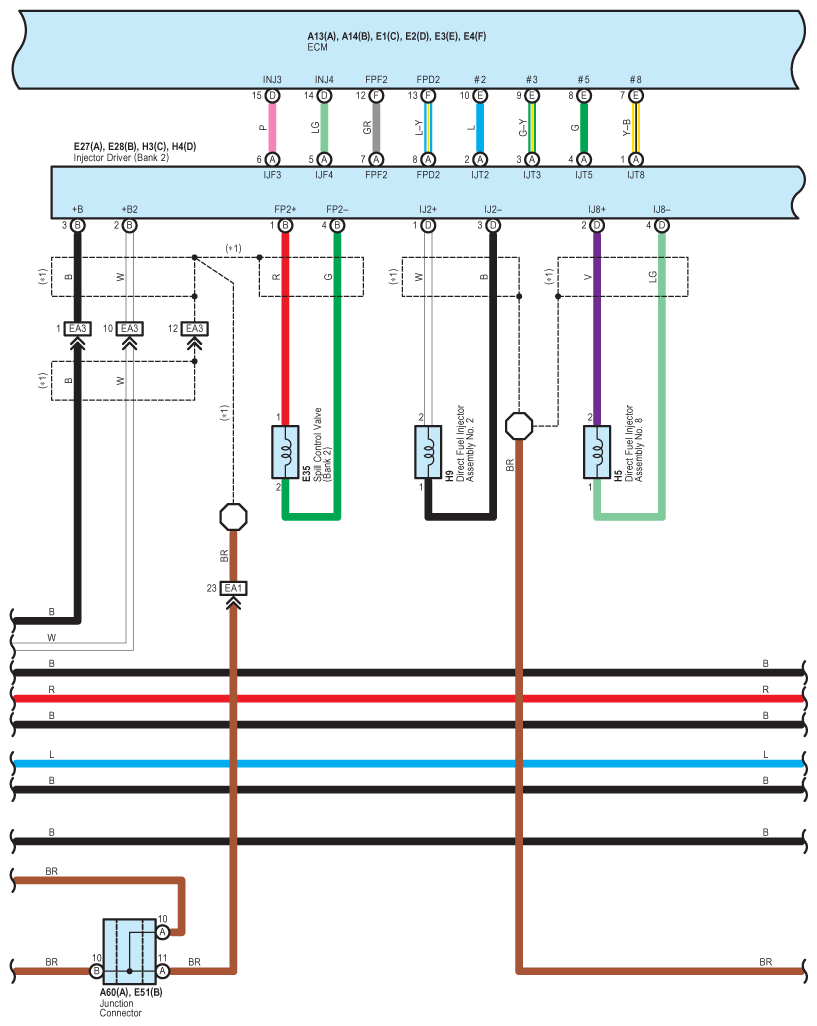

Fig 5: Engine Control - Circuit Diagram (5 Of 24)

G07592788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

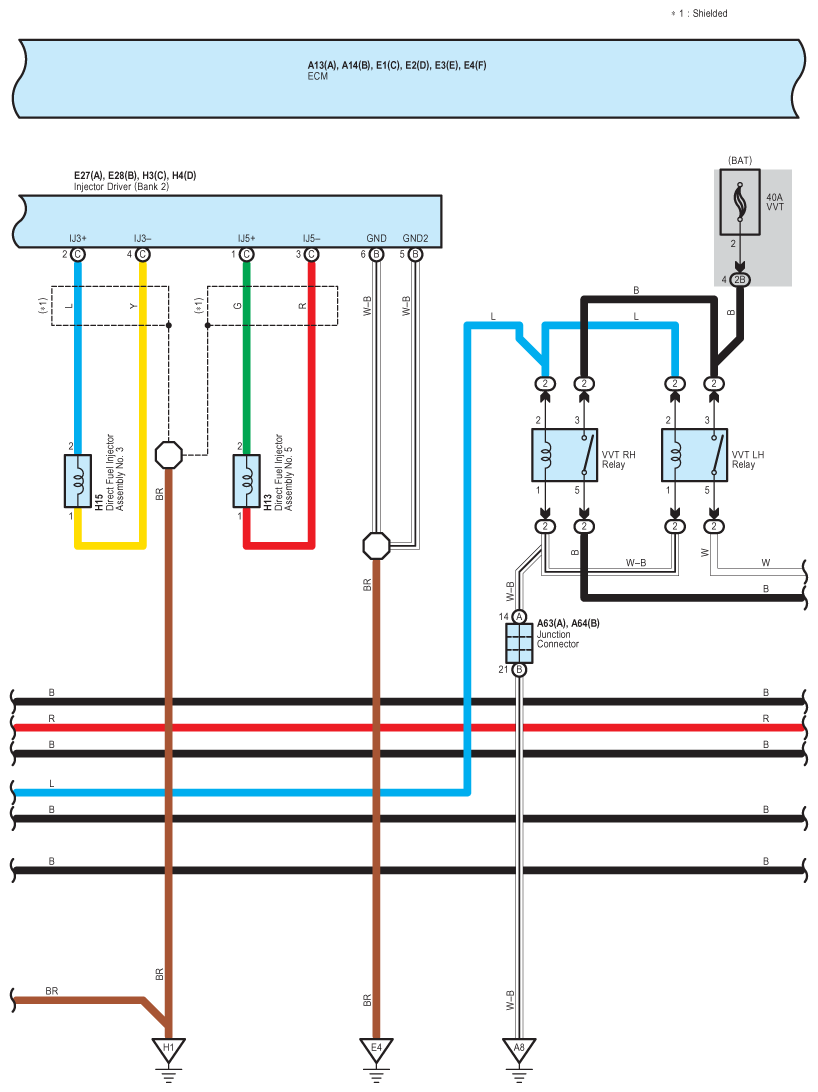

Fig 6: Engine Control - Circuit Diagram (6 Of 24)

G07592789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

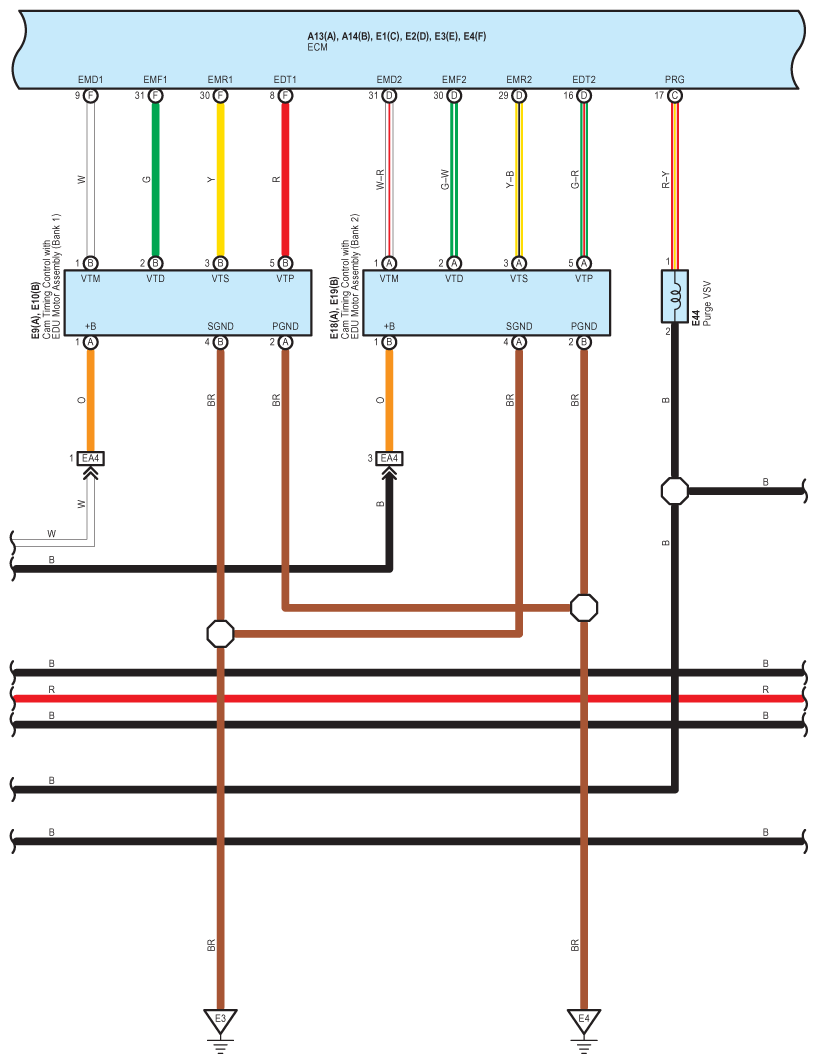

Fig 7: Engine Control - Circuit Diagram (7 Of 24)

G07592790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

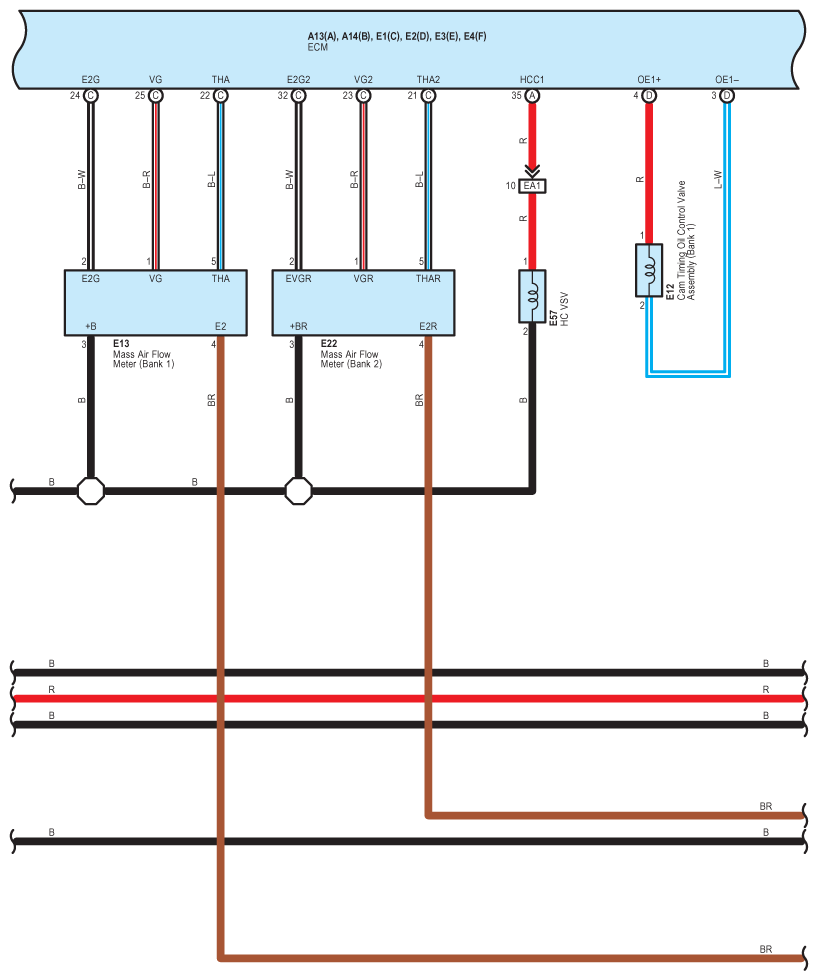

Fig 8: Engine Control - Circuit Diagram (8 Of 24)

G07592791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

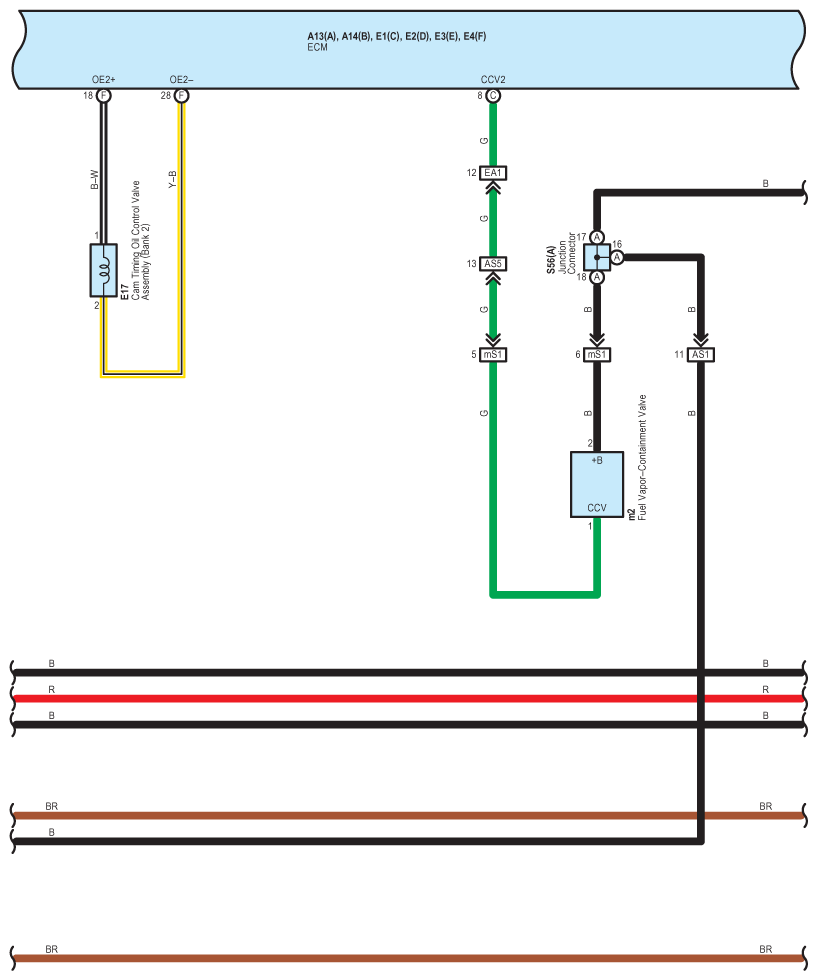

Fig 9: Engine Control - Circuit Diagram (9 Of 24)

G07592792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

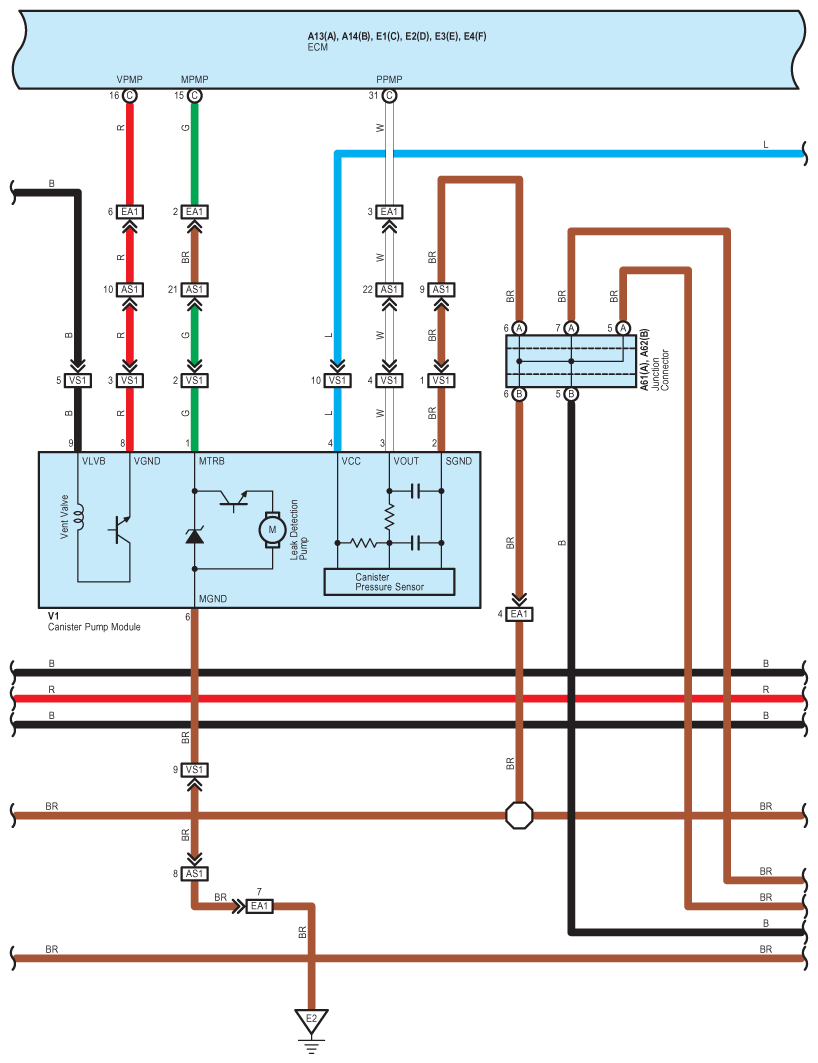

Fig 10: Engine Control - Circuit Diagram (10 Of 24)

G07592793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

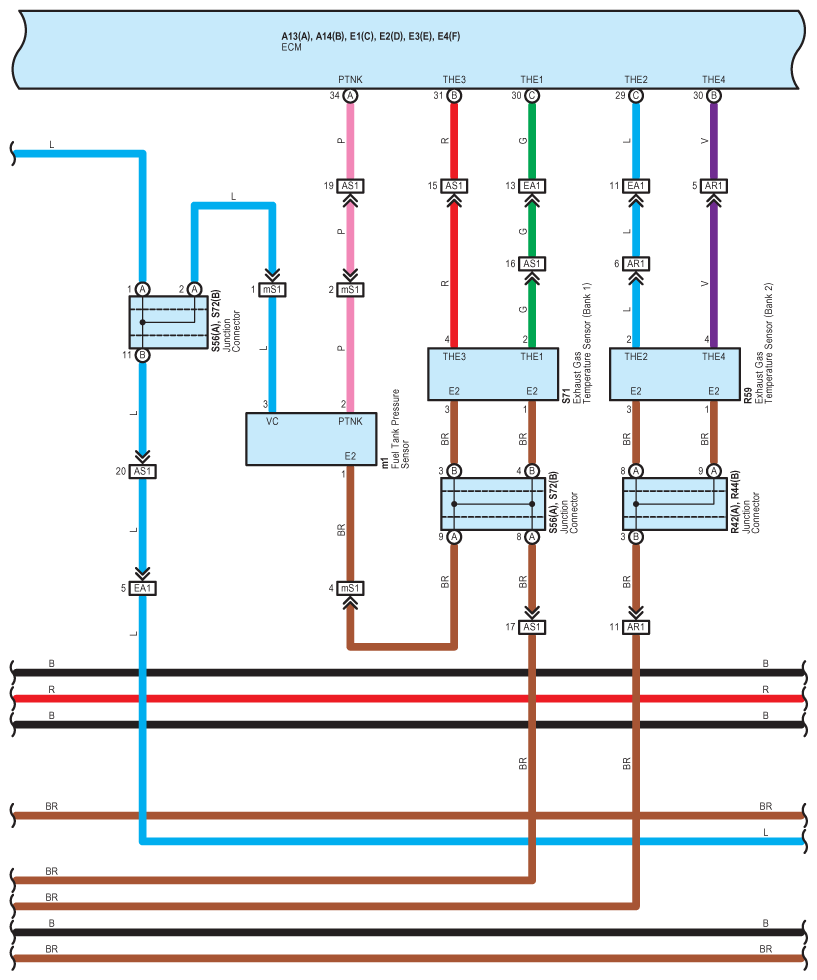

Fig 11: Engine Control - Circuit Diagram (11 Of 24)

G07592794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

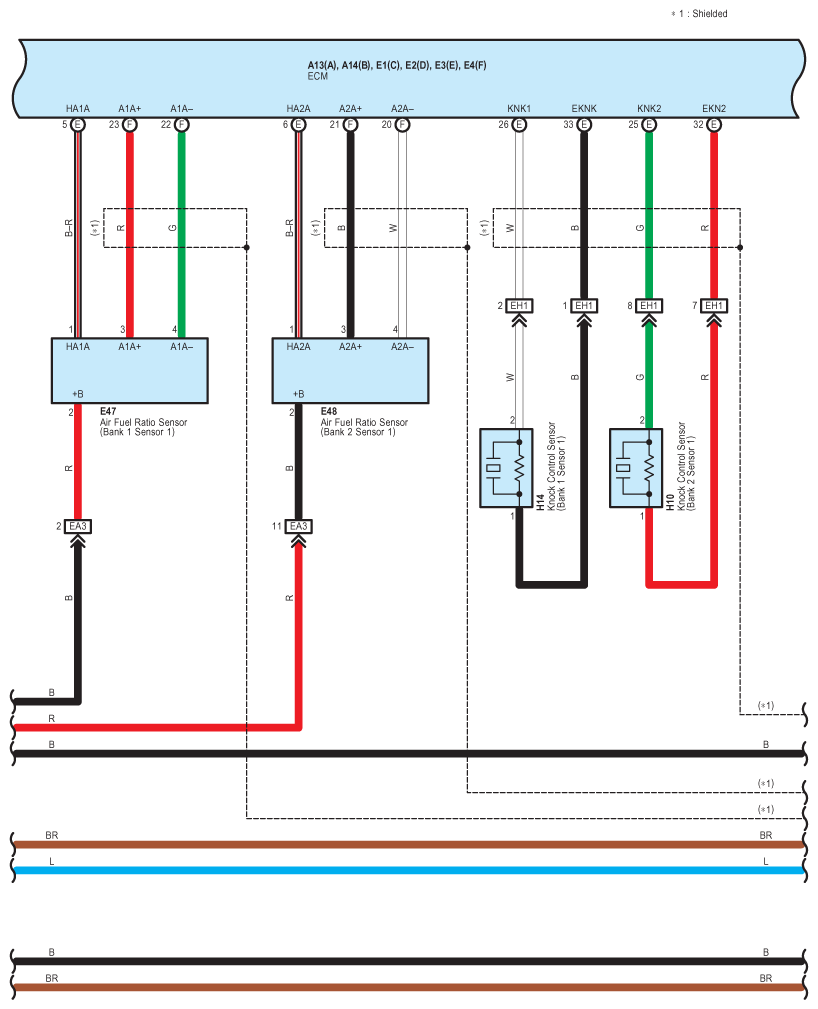

Fig 12: Engine Control - Circuit Diagram (12 Of 24)

G07592795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

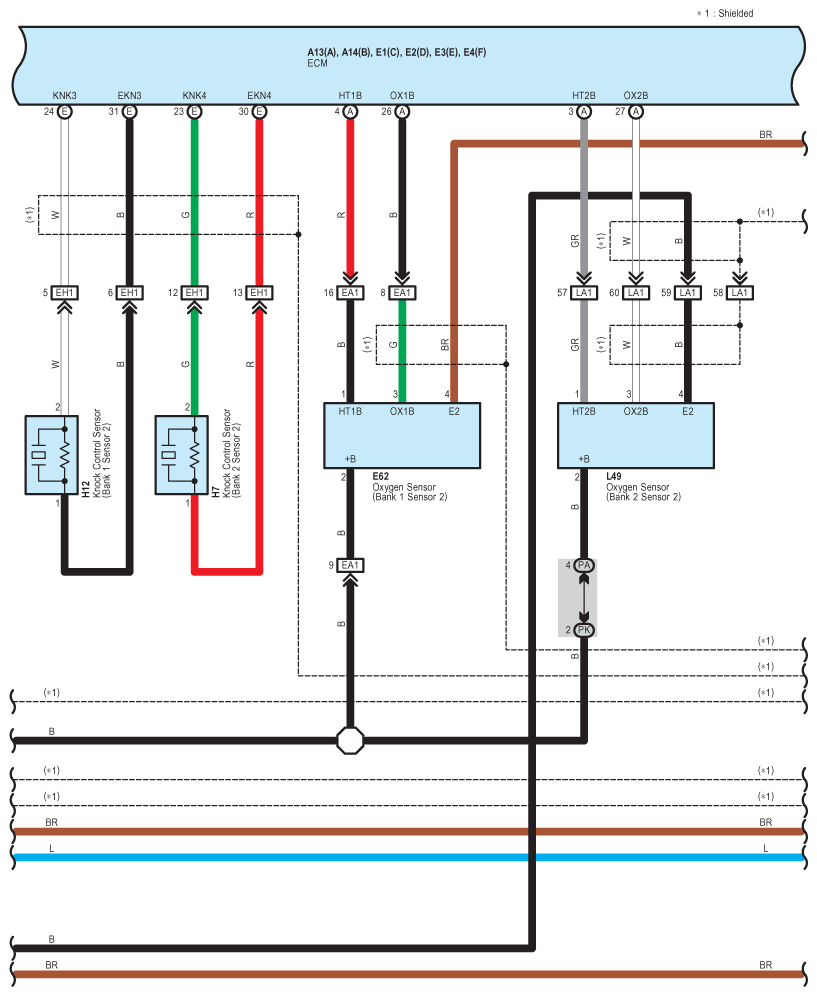

Fig 13: Engine Control - Circuit Diagram (13 Of 24)

G07592796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

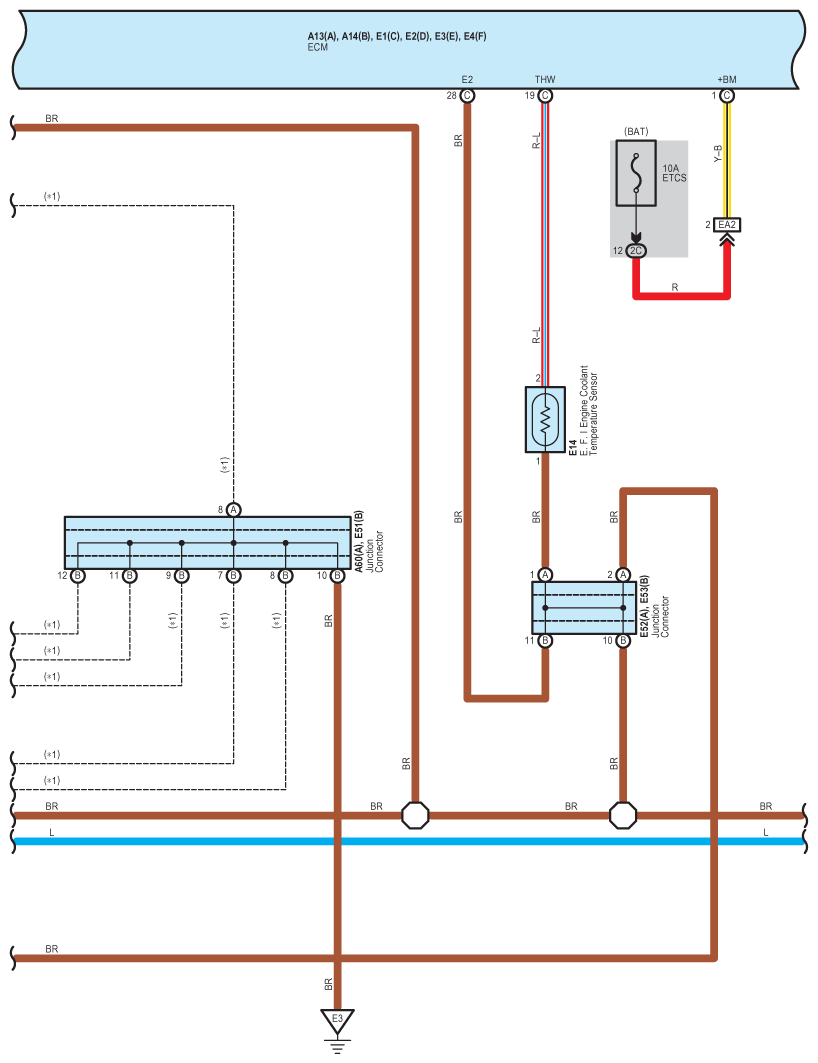

Fig 14: Engine Control - Circuit Diagram (14 Of 24)

G07592797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

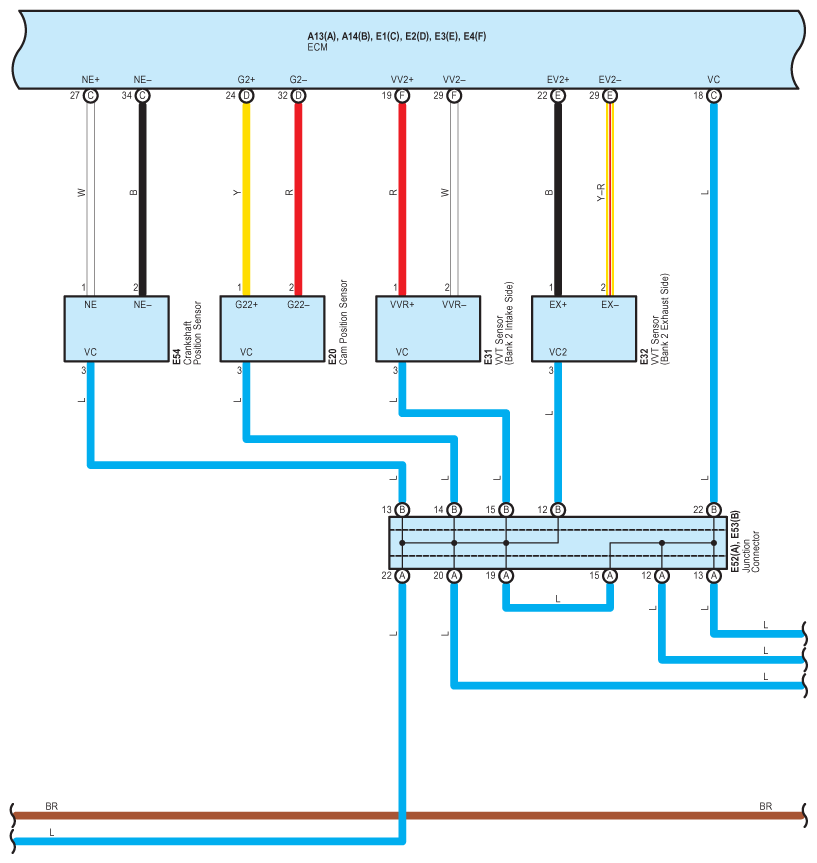

Fig 15: Engine Control - Circuit Diagram (15 Of 24)

G07592798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

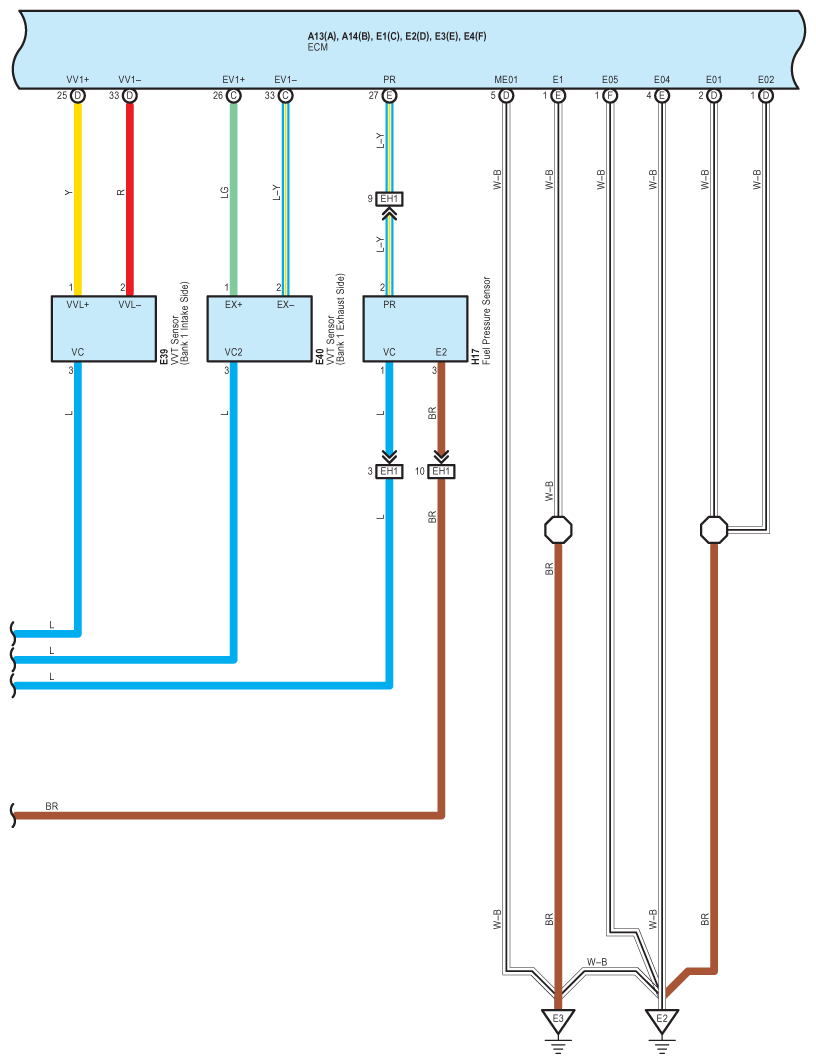

Fig 16: Engine Control - Circuit Diagram (16 Of 24)

G07592799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

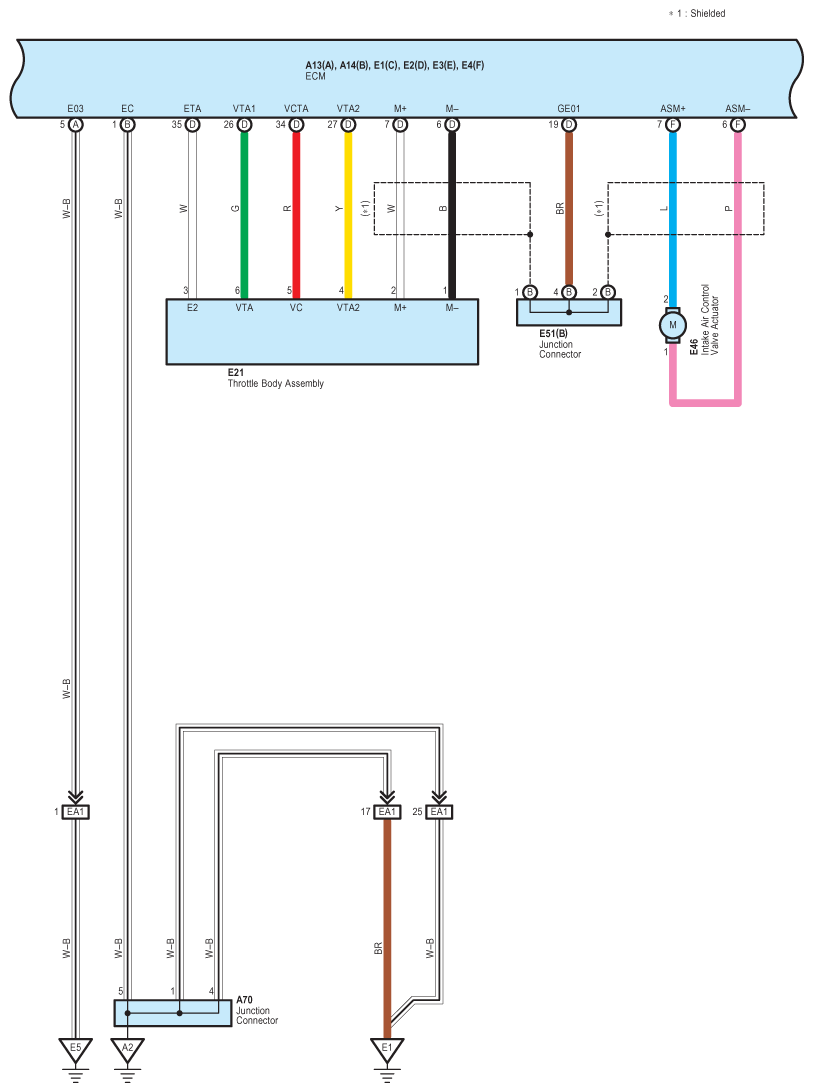

Fig 17: Engine Control - Circuit Diagram (17 Of 24)

G07592800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

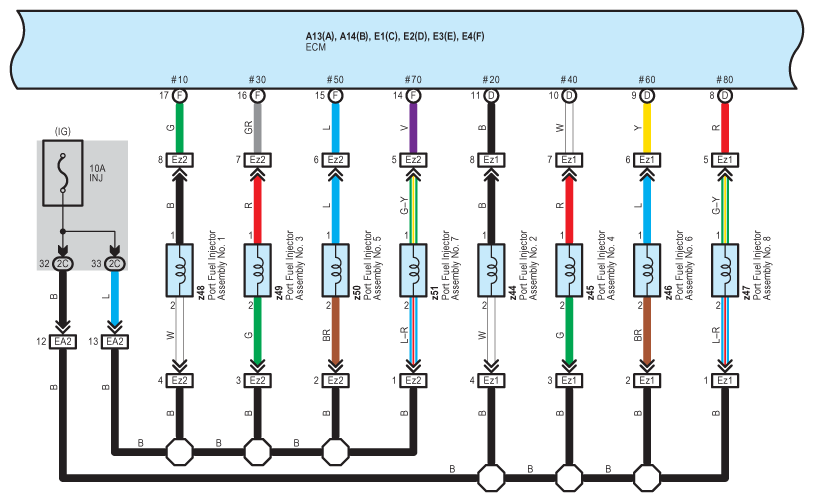

Fig 18: Engine Control - Circuit Diagram (18 Of 24)

G07592801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

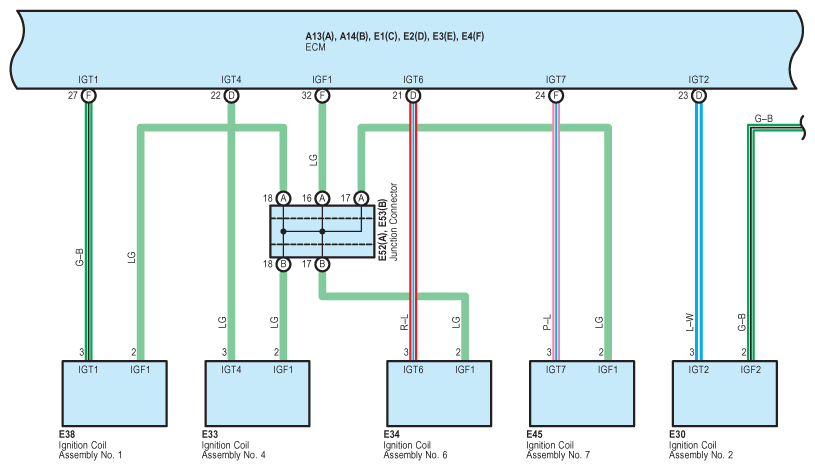

Fig 19: Engine Control - Circuit Diagram (19 Of 24)

G07592802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

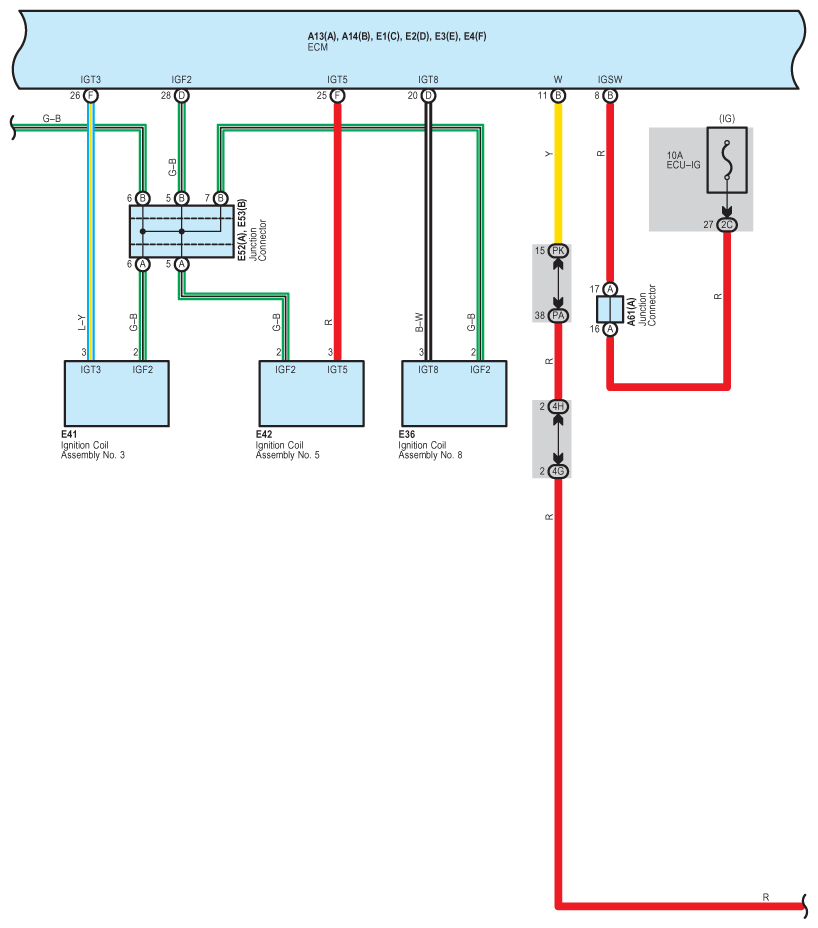

Fig 20: Engine Control - Circuit Diagram (20 Of 24)

G07592803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

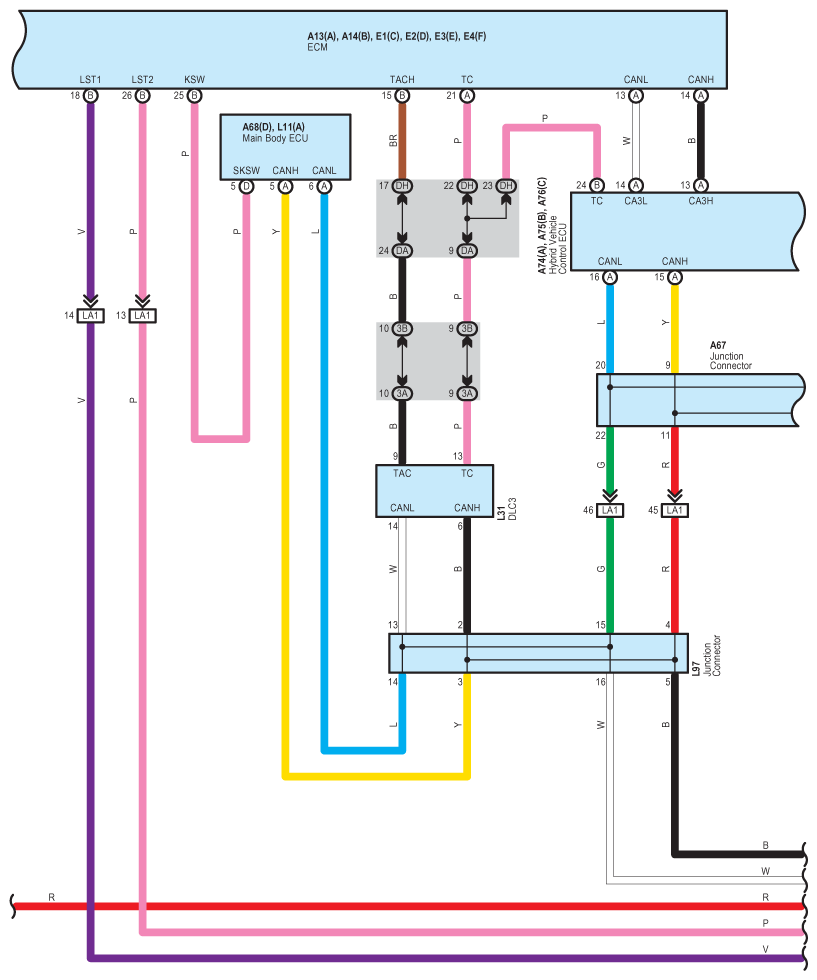

Fig 21: Engine Control - Circuit Diagram (21 Of 24)

G07592804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

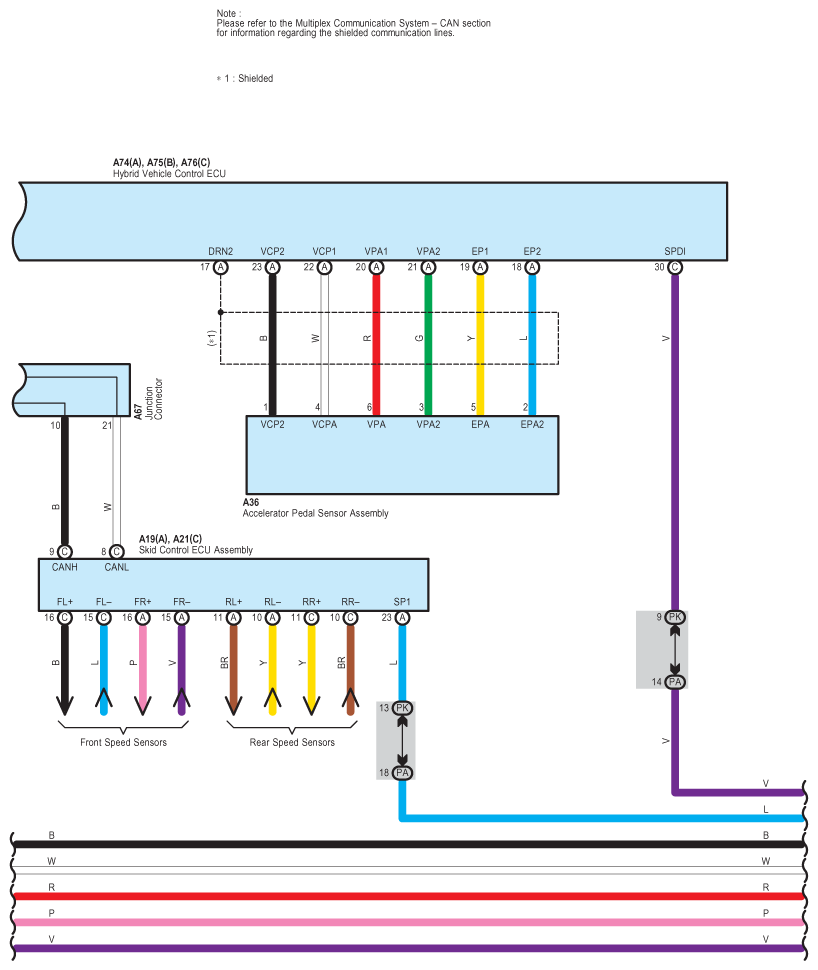

Fig 22: Engine Control - Circuit Diagram (22 Of 24)

G07592805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

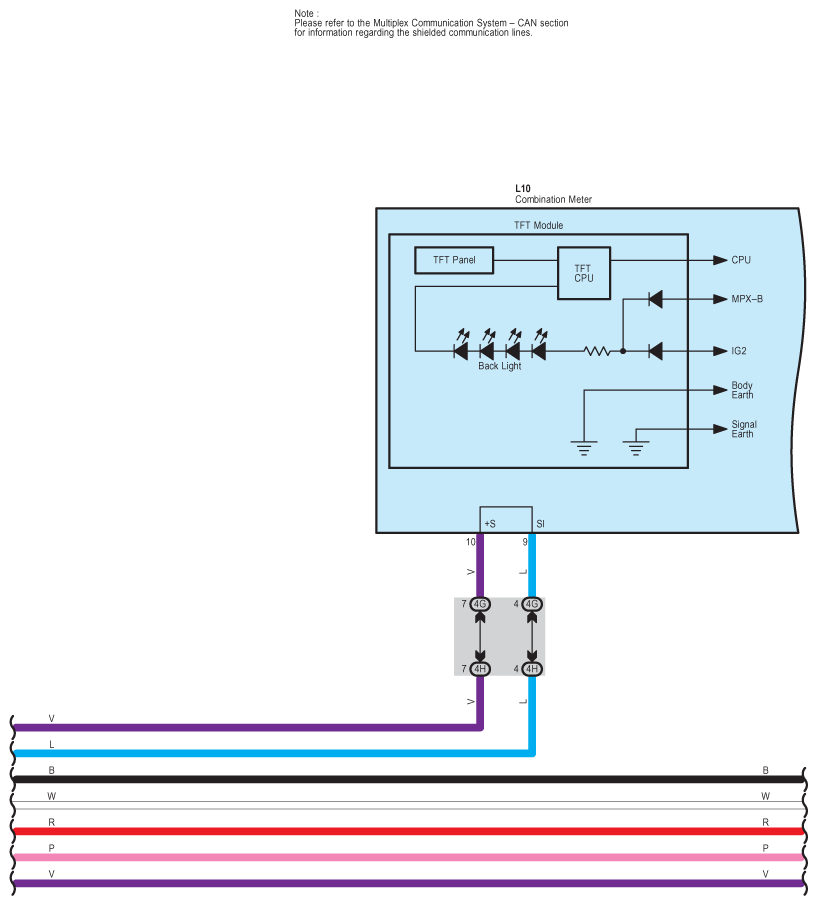

Fig 23: Engine Control - Circuit Diagram (23 Of 24)

G07592806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

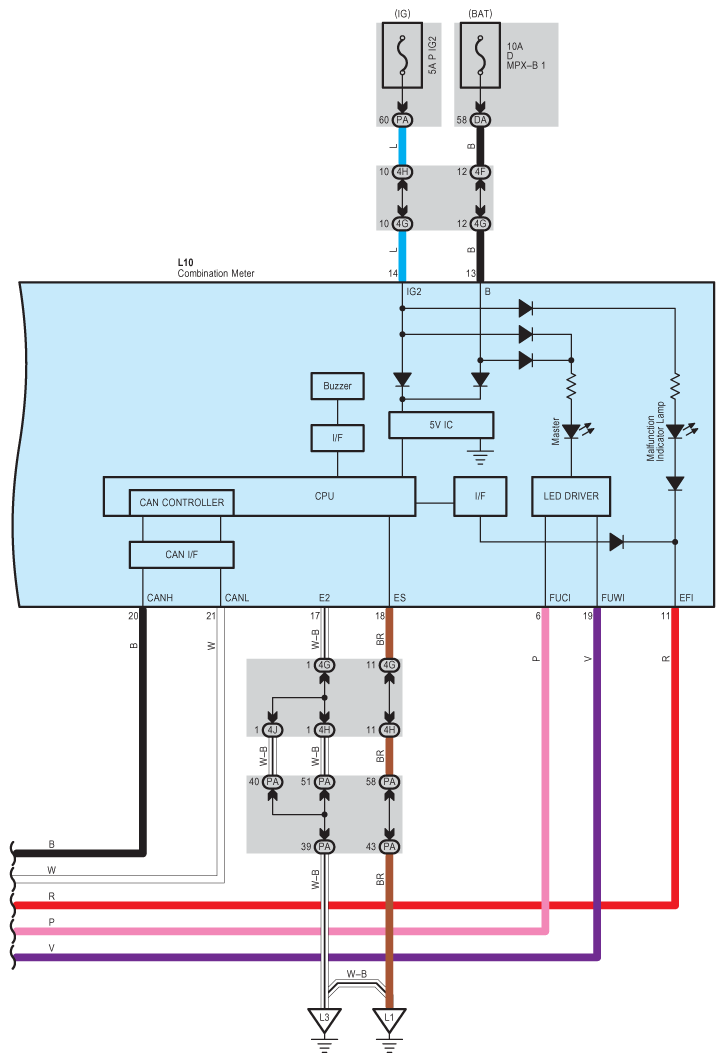

Fig 24: Engine Control - Circuit Diagram (24 Of 24)

G07592807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
