VGRS System: Notes

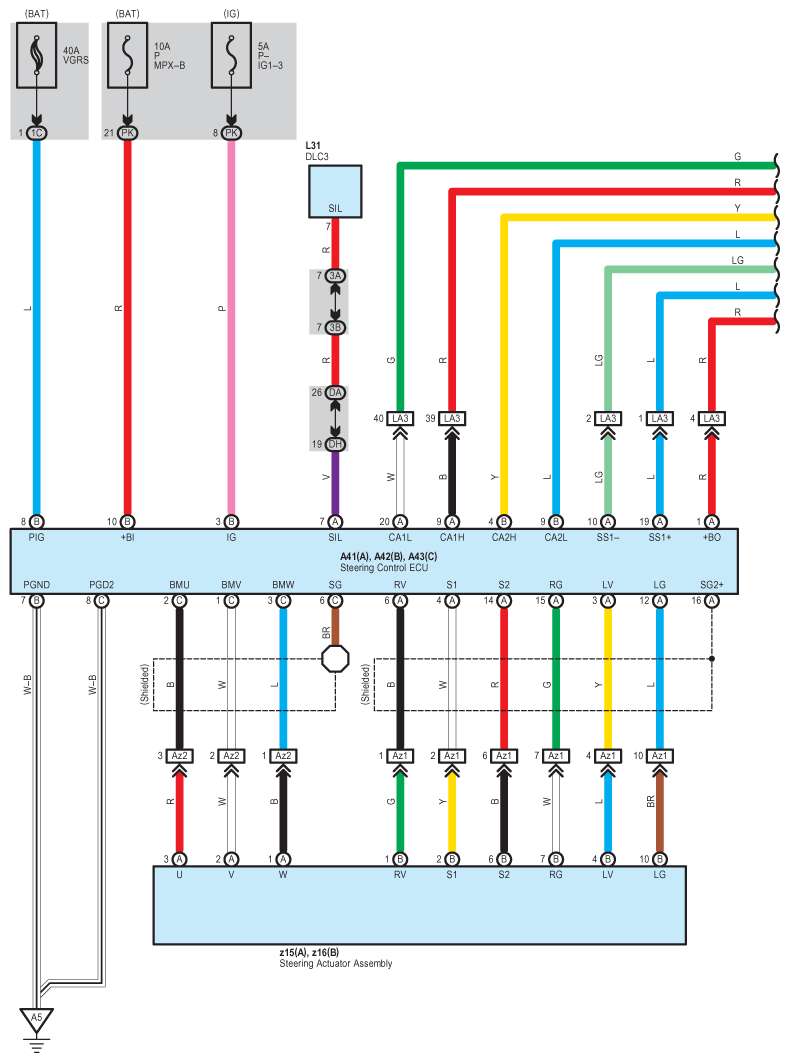

Fig 1: VGRS System - Circuit Diagram (1 Of 5)
G07592995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

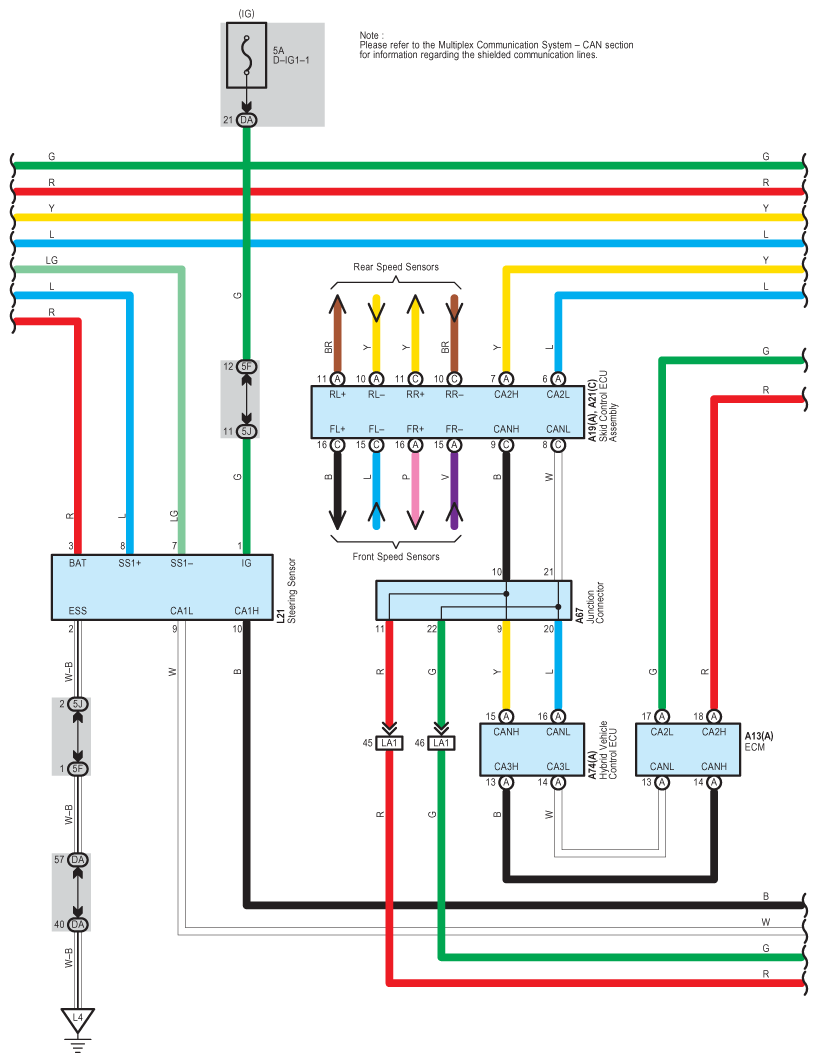

Fig 2: VGRS System - Circuit Diagram (2 Of 5)
G07592996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

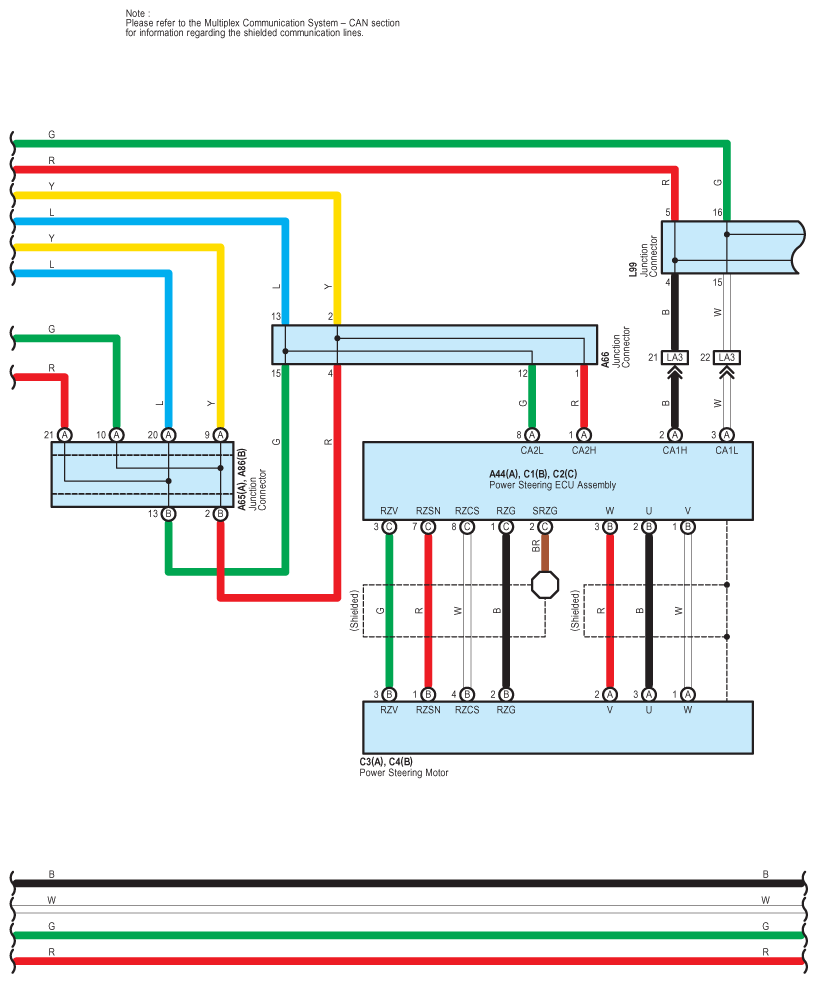

Fig 3: VGRS System - Circuit Diagram (3 Of 5)
G07592997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

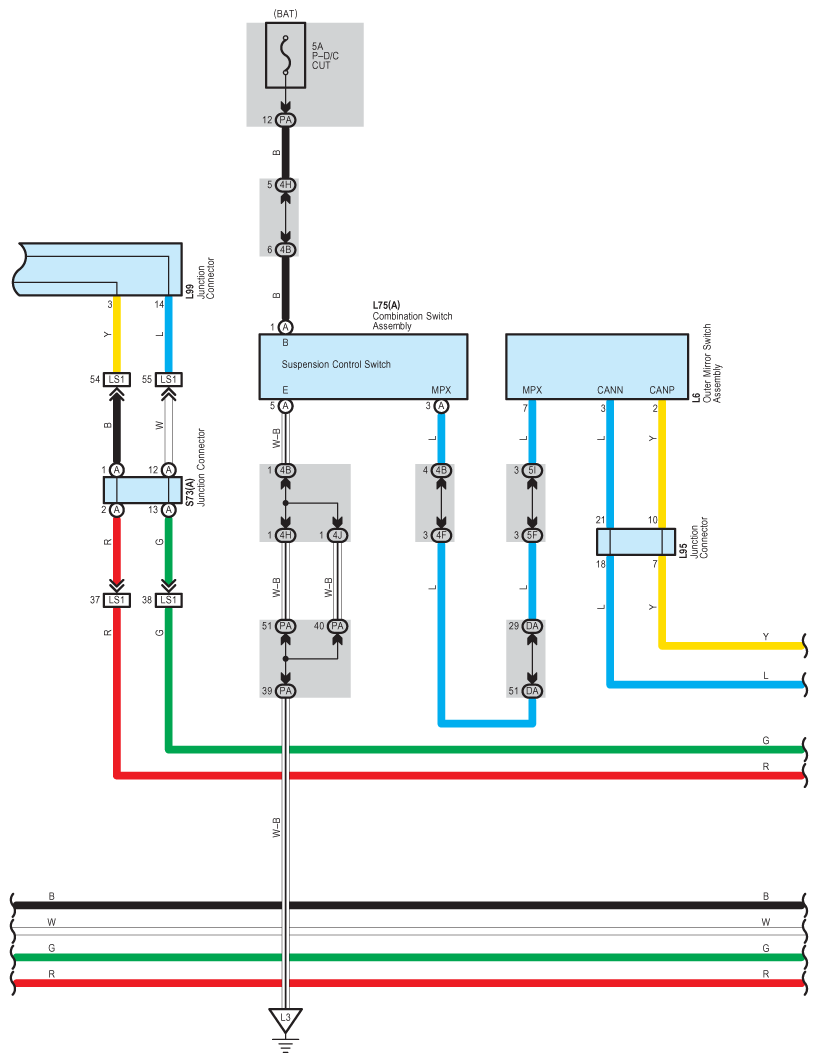

Fig 4: VGRS System - Circuit Diagram (4 Of 5)
G07592998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

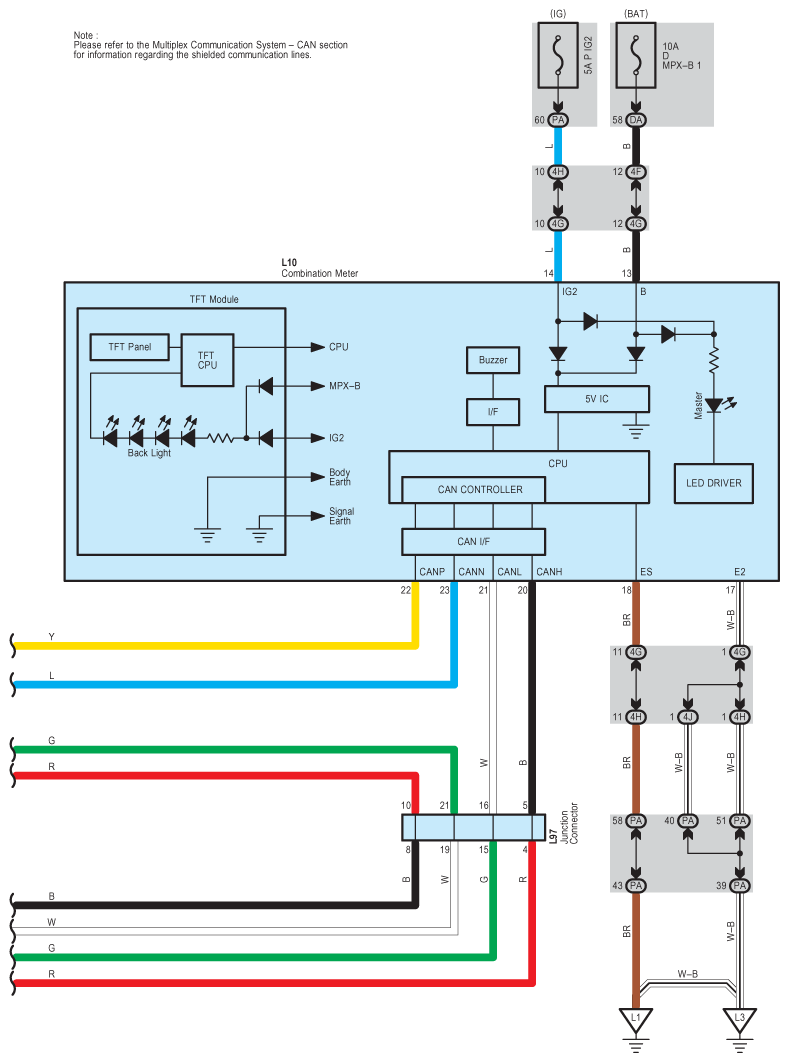

Fig 5: VGRS System - Circuit Diagram (5 Of 5)
G07592999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
