Front Console Box: Disassembly

REMOVE LOWER CONSOLE BOX POCKET
1. Detach the 8 claws and remove the box pocket
REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

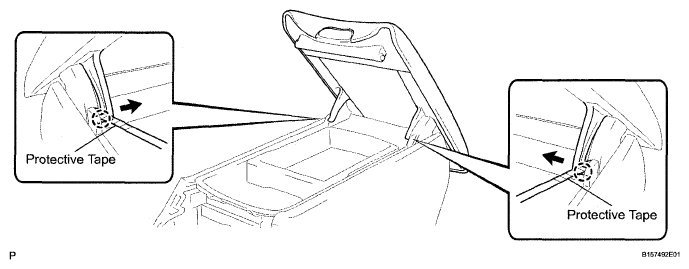

1. Using a screwdriver, detach the 2 claws
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Console Compartment Door Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

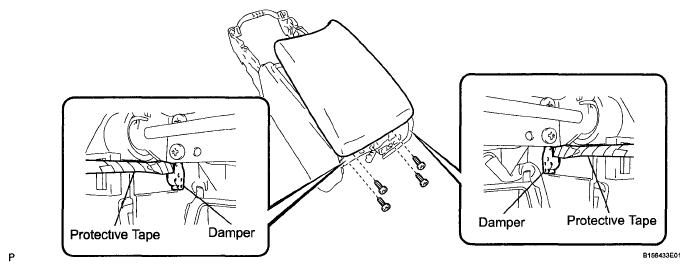

2. Using a screwdriver, detach the 2 dampers
  HINT:

  Tape the screwdriver tip before use.
3. Remove the 4 screws and compartment door
Fig 3: Identifying Compartment Door And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

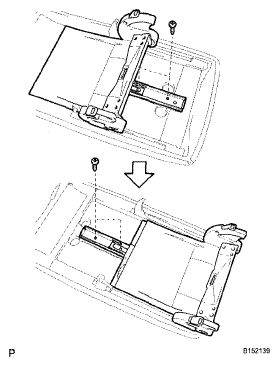

REMOVE CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY
1. Slide the door hinge and remove the 2 screws.
2. Remove the 2 screws and door hinge.
Fig 4: Removing Door Hinge And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
1. Place protective tape as shown in the illustration
2. Using a screwdriver, detach the 2 clips
  HINT:

  Tape the screwdriver tip before use.
3. Detach the 2 claws and remove the door lock
Fig 5: Identifying Console Compartment Door Lock With Protective Tape
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
