Inner Rear View Mirror: Components

Fig 1: Identifying Inner Rear View Mirror Replacement Components (1 Of 2)
G05784643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

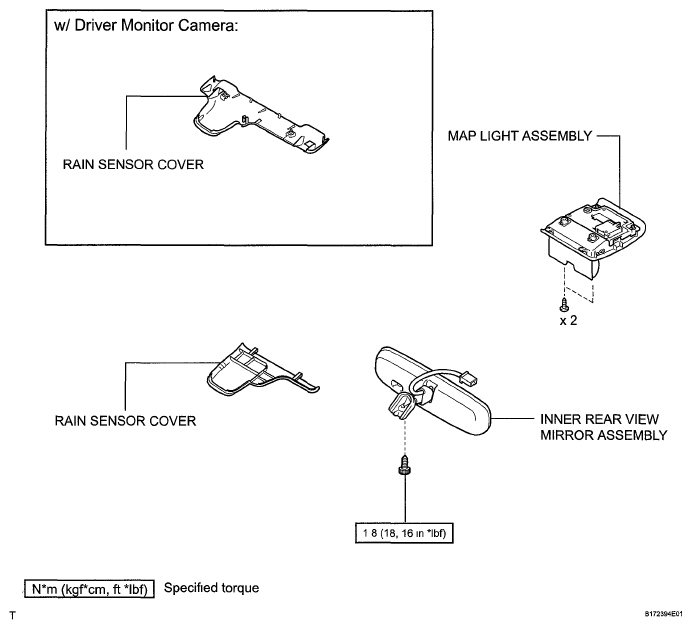

Fig 2: Identifying Inner Rear View Mirror Replacement Components With Torque Specification (2 Of 2)
G05784644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
