DTC B2312 Power Window Switch Malfunction: Wiring Diagram

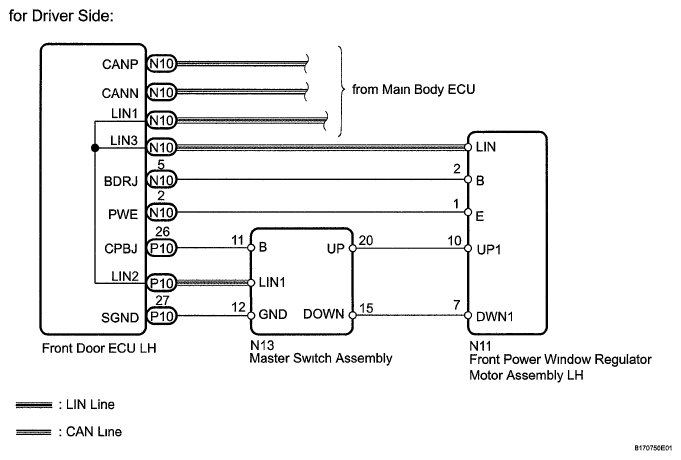

Fig 1: Power Window Switch - Wiring Diagram (Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

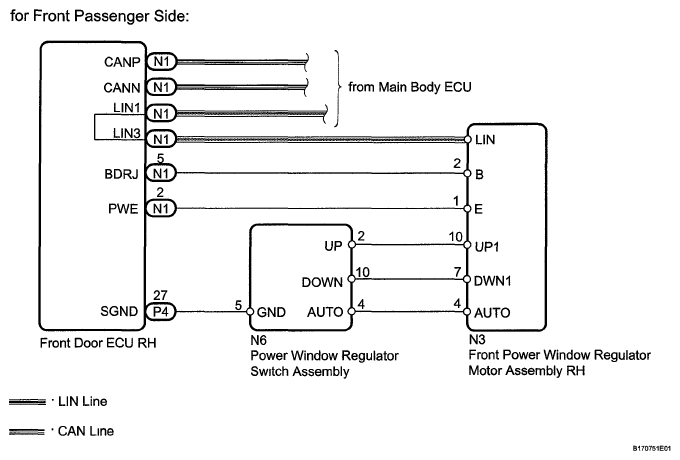

Fig 2: Power Window Switch - Wiring Diagram (Front Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

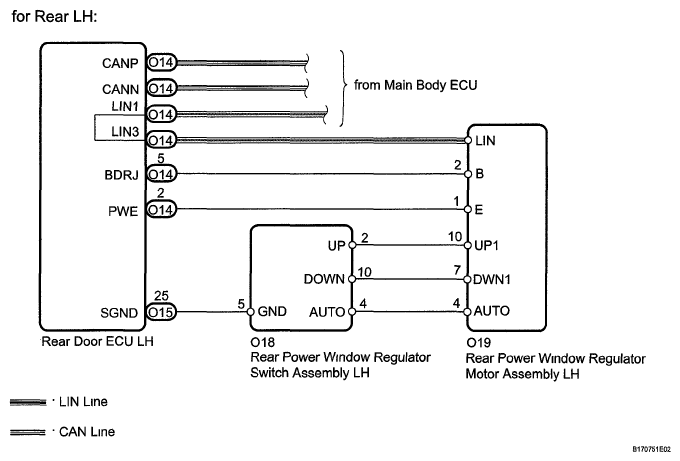

Fig 3: Power Window Switch - Wiring Diagram (Rear LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

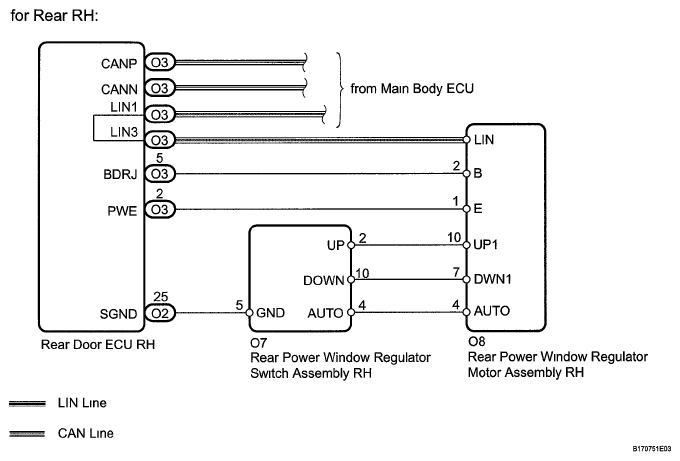

Fig 4: Power Window Switch - Wiring Diagram (Rear RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
