Rear Window Defogger System Does Not Operate: Wiring Diagram

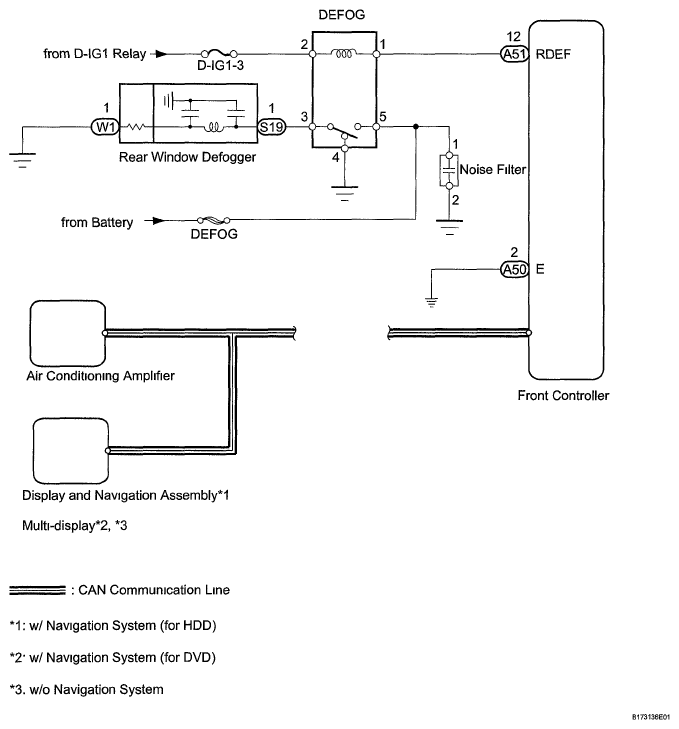

Fig 1: Rear Window Defogger Switch - Wiring Diagram
G05776780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
