System Diagram

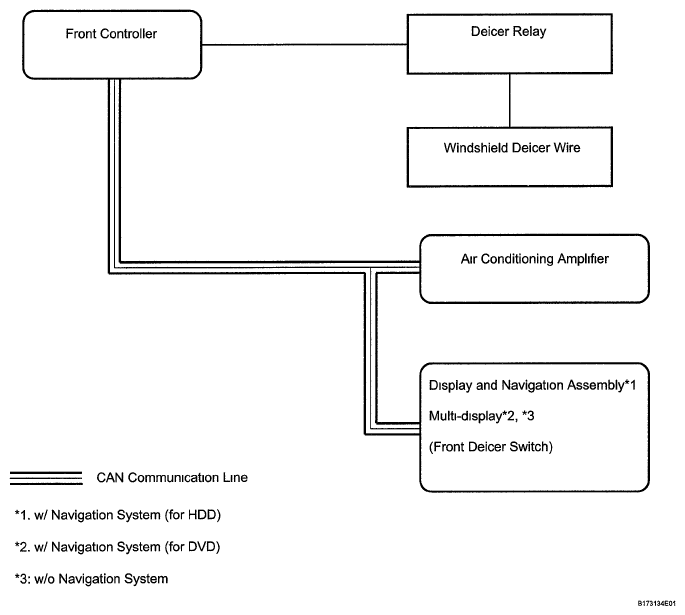

Fig 1: Windshield Deicer System Diagram
G05776765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

SIGNAL REFERENCE

Transmitter Receiver Signal Line
Display and navigation assembly*1
Multi-display*2, *3		 Air conditioning amplifier Windshield deicer switch signal CAN
Air conditioning amplifier Front controller Windshield deicer switch signal CAN
HINT
  • *1. w/ Navigation System (for HDD)
  • *2: w/ Navigation System (for DVD)
  • *3: w/o Navigation System
