Terminals Of Ecu

  1. CHECK FRONT CONTROLLER

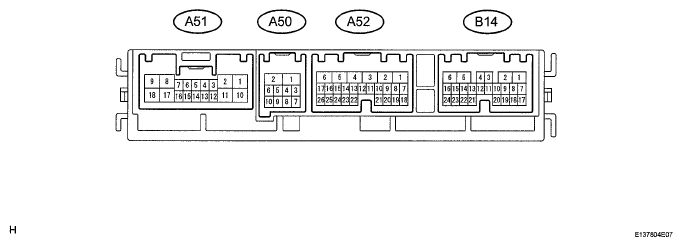

    Fig 1: Identifying A50, A51, A52 And B14 Front Controller Connectors
    G05776766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A50 and A52 front controller connectors.
    2. Measure the resistance and voltage according to the value (s) in the table below.
      CONNECTOR TERMINAL REFERENCE

      Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
      A52-1 (BATB) - A50-2 (E) P - W-B Power source Always 11 to 14 V
      A52-5 (ALTB) - A50-2 (E) L - W-B Power source Always 11 to 14 V
      A50-1 (FMB3) - A50-2 (E) LG - W-B Power source Always 11 to 14 V
      A50-2 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω
      A50-5 (FMIG) - A50-2 (E) Y - W-B Ignition power supply Power switch ON (IG) 11 to 14 V
      Power switch OFF Below 1 V

      If the result is not as specified, there may be a malfunction on the wire harness side

    3. Reconnect the front controller connectors
    4. Measure the voltage according to the value (s) in the table below
    CONNECTOR TERMINAL REFERENCE

    Terminal No (Symbols) Wiring Color Terminal Description Condition Specified Condition
    A51-13 (FDEF) - A50-2 (E) L - W-B Deicer relay Power switch ON (IG) Windshield deicer switch ON Below 1 V
    Power switch ON (IG) Windshield deicer switch OFF 11 to 14 V

    If the result is not as specified, the front controller may have a malfunction.

  2. CHECK AIR CONDITIONING AMPLIFIER
    Fig 2: Identifying L76 And L77 Air Conditioning Amplifier Connectors
    G05776767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L76 and L77 air conditioning amplifier connectors.
    2. Measure the resistance and voltage according to the value (s) in the table below.
    CONNECTOR TERMINAL REFERENCE

    Terminal No (Symbols) Wiring Color Terminal Description Condition Specified Condition
    L76-5 (1G+) - L76-1 (GND) V - W-B Ignition power supply Power switch ON (IG) 11 to 14 V
    Power switch OFF Below 1 V
    L76-6 (+B1) - L76-1 (GND) L - W-B Battery power source Always 11 to 14V
    L76-7 (+B2) - L76-1 (GND) L - W-B Battery power source Always 11 to 14 V
    L76-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
    L76-2 (FGND) - Body ground W-B - Body ground Ground Always Below 1 Ω
    L77-6 (RGND) - Body ground W-B - Body ground Ground Always Below 1 Ω

    If the result is not as specified, there may be a malfunction on the wire harness side.

  3. CHECK DISPLAY AND NAVIGATION ASSEMBLY*1, MULTI-DISPLAY*2, *3

    HINT

    • *1 w/ Navigation System (for HDD)
    • *2. w/ Navigation System (for DVD)
    • *3: w/o Navigation System
    Fig 3: Identifying L59 Display Connector
    G04950361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L59 display connector
    2. Measure the resistance and voltage according to the value (s) in the table below
    CONNECTOR TERMINAL REFERENCE

    Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
    L59-1 (+B1) - L59-10 (GND1) R - W-B Battery power source Always 11 to 14 V
    L59-3 (IG) - L59-10 (GND1) V - W-B Ignition power supply Power switch OFF Below 1 V
    Power switch ON (IG) 11 to 14V
    L59-10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω

    If the result is not as specified, there may be a malfunction on the wire harness side
