Brake Actuator: Installation

NOTE: While the battery is connected, even if the power switch is OFF, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal or open/ close the doors while the battery is connected.
  1. INSTALL BRAKE ACTUATOR
    NOTE: Do not remove the hole plug before installing a new brake actuator because the brake actuator is filled with brake fluid.
    1. Install the No. 3 brake actuator bracket to the brake actuator with the 3 bolts.

      Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

      NOTE: Temporarily install either bolt A or B first.

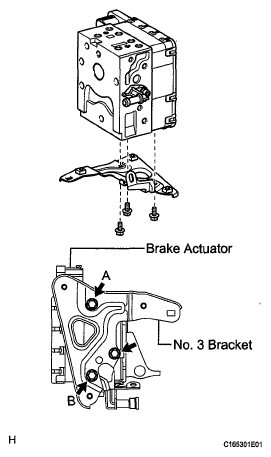

      Fig 1: Locating Brake Actuator Bracket To Brake Actuator With Bolts
      G05774094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 cushions and 3 spacers to the bracket.

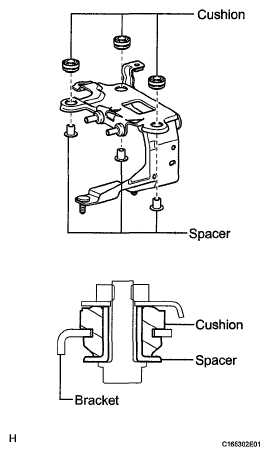

      Fig 2: Identifying Cushions And Spacers To Bracket
      G05774095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the brake actuator bracket to the brake actuator with the 3 bolts.

      Torque: 9.2 N*m (94 kgf*cm, 81 in.*lbf)

      Fig 3: Identifying Brake Actuator Bracket And Brake Actuator With Bolts
      G04949717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BRAKE ACCUMULATOR PUMP
    1. Install the brake booster pump collars (labeled A) and brake booster pump bushes (labeled B) to the brake accumulator pump.
    2. Install the brake accumulator pump to the brake actuator bracket.
      NOTE: After installing the brake accumulator pump, make sure the collar has not fallen off.
    3. Install the brake booster pump bush (labeled C) and a new brake actuator bracket clamp (labeled D) to the brake accumulator pump.
      NOTE: Make sure to securely insert the brake accumulator pump until the claws of the clamp are attached.

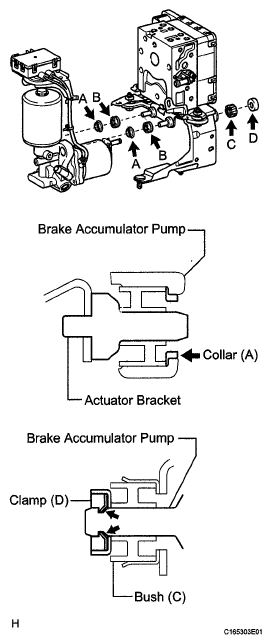

      Fig 4: Identifying Brake Accumulator Pump Collar And Clamp
      G05774097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 BRAKE ACTUATOR BRACKET
    1. Install the No. 4 brake actuator bracket to the brake actuator with the bolt.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      Fig 5: Identifying Brake Actuator Bracket And Bolt
      G04949714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT BRAKE ACCUMULATOR PUMP CONNECTOR BOX
    1. Connect the brake accumulator pump connector box.
      1. Install the connector box with the nut.

        Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

      2. Attach the wiring harness clamp.
        Fig 6: Identifying Brake Accumulator Pump Connector Box And Nut
        G05774099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 3 BRAKE ACTUATOR TUBE
    NOTE:
    • Do not damage the No. 3 brake actuator tube, brake actuator and brake accumulator pump.
    • When installing the No. 3 brake actuator tube, hold the tube, brake actuator and brake accumulator pump securely.
    • When tightening the nut, make sure that other parts do not move with the nut.
    1. Using a union nut wrench, connect the No 3 brake actuator tube.

      Torque: without union nut wrench

      15 N*m (155 kgf*cm, 11 ft.*lbf)

      with union nut wrench

      14 N*m (145 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.
      Fig 7: Identifying Brake Actuator Hose And Union Nut Wrench With Fulcrum Length
      G05774100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 BRAKE ACTUATOR HOSE
    NOTE: Do not remove the cap installed to the reservoir connector until it is connected to the reservoir.
    1. Install the reservoir connector to the No. 2 brake actuator hose with the hose clip as shown in the illustration

      Length "A":

      4.0 to 7.0 mm (0.157 to 0.276 in.)

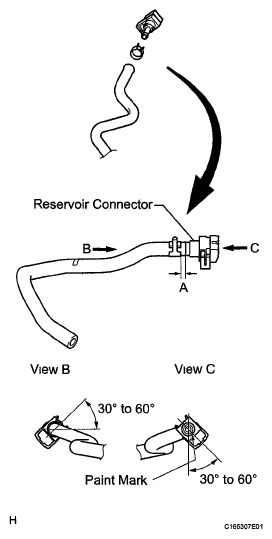

      Fig 8: Identifying Reservoir Connector To Brake Actuator Hose With Hose Clip
      G05774101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. With the paint mark on the hose's tip facing the bottom of the vehicle, install the No. 2 brake actuator hose to the brake accumulator pump with the hose clip.
      NOTE: When inserting the hose, be careful that there is no excessive weight applied to the union of the brake accumulator pump (especially in the union rotation direction).
      Fig 9: Identifying Brake Actuator Hose And Hose Clip
      G04949735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the hose clip so that its claws face the rear of the vehicle.

    3. Connect the No. 2 brake actuator hose to the No. 3 brake actuator bracket with the clamp.
  7. INSTALL BRAKE ACTUATOR PROTECTOR
    1. Install the protector.
      Fig 10: Identifying Brake Actuator Protector
      G04949709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 BRAKE ACTUATOR HOSE
    1. With the paint mark on the hose's tip facing the bottom of the vehicle, install the No. 1 brake actuator hose to the brake actuator with the hose clip.
      NOTE: When inserting the hose, be careful that there is no excessive weight applied to the union of the brake actuator (especially in the union rotation direction).

      HINT:

      Install the hose clip so that its claws face the rear of the vehicle.

      Fig 11: Identifying Brake Actuator Hose And Hose Clip
      G05774081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 5 BRAKE ACTUATOR BRACKET
    1. Install the No. 5 brake actuator bracket to the body with the bolt.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      Fig 12: Identifying Brake Actuator Bracket And Bolt
      G04949707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL BRAKE ACTUATOR AND BRAKE ACCUMULATOR PUMP ASSEMBLY
    1. Install the brake actuator and brake accumulator pump to the body with the bolt and 2 nuts
      NOTE:
      • Do not damage the brake tubes.
      • When installing the brake actuator and brake accumulator pump to the vehicle, do not hold the connector, harness, hose or tube parts.
      • Do not drop the brake actuator and brake accumulator pump. Do not use parts that have been dropped.
        Fig 13: Locating Brake Actuator And Brake Accumulator Pump With Bolt And Nuts
        G05774106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      First insert the bracket bottom's longer stud bolt (vehicle outer side, labeled A) into the body.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the front fender liner rear side.
    3. Connect the No 1 brake actuator hose to the body with the clamp.
      Fig 14: Identifying No 1 Brake Actuator Hose From Clamp
      G04949705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CONNECT BRAKE TUBE
    1. Using a union nut wrench, connect the No. 1 (labeled A) and No 2 (labeled B) brake actuator tubes.

      Torque: without union nut wrench

      15 N*m (155 kgf*cm, 11 ft.*lbf)

      with union nut wrench

      14 N*m (145 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.
      • Do not damage the No. 1 and No. 2 brake actuator tubes.
        Fig 15: Identifying Union Nut Wrench With Fulcrum Length
        G05774108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set each brake tube to the correct positions on the brake actuator as shown in the illustration
      Fig 16: Identifying Brake Tube To Correct Positions On Brake Actuator
      G05774076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a union nut wrench, connect the 6 brake tubes

      Torque: without union nut wrench

      15 N*m (155 kgf*cm, 11 ft.*lbf)

      with union nut wrench

      14 N*m (145 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.
        Fig 17: Identifying Brake Tubes And Union Nut Wrench With Fulcrum Length
        G05774110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the brake actuator connector
      NOTE:
      • Before connecting the vehicle wire harnesses, make sure that the connector faces are free of foreign matter.
      • Make sure that the connector is locked securely.
        Fig 18: Locating Brake Actuator Connector
        G04949741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT WHEEL

    Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)

  13. INSTALL RESERVOIR BRACKET  (See INSTALLATION )
  14. INSTALL NO. 1 RESERVOIR HOSE  (See INSTALLATION )
  15. INSTALL SKID CONTROL ECU BRACKET  (See INSTALLATION  ).
  16. INSTALL BRAKE FLUID RESERVOIR  (See INSTALLATION ).
  17. CONNECT NO. 3 RELAY BLOCK
    1. Install the No. 3 relay block to the reservoir bracket.
      NOTE: Make sure that the claw of the No. 3 relay block is securely attached to the reservoir bracket.
      Fig 19: Locating No 3 Relay Block To Reservoir Bracket
      G05774112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL SKID CONTROL ECU  (See INSTALLATION  ).
  19. CONNECT NO. 1 MOTOR COOLING PIPE  (See INSTALLATION  ).
  20. INSTALL SERVICE PLUG GRIP  (See INSTALLATION ).
  21. REMOVE BATTERY SERVICE HOLE COVER  (See INSTALLATION ).
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  23. INSTALL BATTERY SERVICE HOLE COVER LH  (See INSTALLATION ).
  24. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See INSTALLATION ).
  25. BLEEDING PRECAUTION
    CAUTION: Be sure to read the "PRECAUTION" thoroughly before bleeding (see BRAKE SYSTEM ).
  26. CONNECT BRAKE ACCUMULATOR PUMP CONNECTORS
    1. Connect the 2 brake accumulator pump connectors.
      Fig 20: Locating Brake Accumulator Pump Connectors
      G04949820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before connecting the vehicle wire harnesses, make sure that the connector faces are free of foreign matter.
      • Make sure that the connectors are locked securely.
  27. PERFORM ACCUMULATOR ZERO DOWN  (See REPLACEMENT ).
  28. DISCONNECT BRAKE ACCUMULATOR PUMP CONNECTORS  (See REPLACEMENT ).
  29. FILL RESERVOIR WITH BRAKE FLUID  (See REPLACEMENT ).
  30. DISABLE BRAKE CONTROL  (See REPLACEMENT ).
  31. BLEED AIR FROM FRONT BRAKE SYSTEM  (See REPLACEMENT ).
  32. CANCEL DISABLE BRAKE CONTROL  (See REPLACEMENT ).
  33. CONNECT BRAKE ACCUMULATOR PUMP CONNECTORS  (See REPLACEMENT ).
  34. BLEED AIR FROM PUMP SUCTION SYSTEM (RR)  (See REPLACEMENT ).
  35. DISABLE BRAKE CONTROL  (See REPLACEMENT ).
  36. BLEED AIR FROM REAR BRAKE SYSTEM  (See REPLACEMENT ).
  37. CANCEL DISABLE BRAKE CONTROL  (See REPLACEMENT ).
  38. PERFORM ACCUMULATOR ZERO DOWN  (See REPLACEMENT ).
  39. CHECK AND ADJUST BRAKE FLUID LEVEL IN RESERVOIR  (See REPLACEMENT ).
  40. INSPECT FOR BRAKE FLUID LEAK
  41. CLEAR THE DTC  (See REPLACEMENT ).
  42. PERFORM LINEAR VALVE OFFSET LEARNING
    1. When the brake actuator is replaced, perform the linear valve offset learning (see INITIALIZATION  ).
  43. CHECK FOR DTC
    1. Check for DTC If any DTC is output, perform the troubleshooting for that DTC (see DIAGNOSTIC TROUBLE CODE CHART  ).
  44. READ VALUE OF ACCUMULATOR PRESSURE SENSOR OUTPUT VOLTAGE

    HINT:

    If removing and installing the No. 3 brake actuator tube, check for a brake fluid leak from the No. 3 tube connection area by monitoring the accumulator pressure sensor output value from the brake actuator. Directly checking for a brake fluid leak from the No. 3 tube connection area is difficult.

    1. Turn the power switch OFF.
    2. Connect the Intelligent tester or Techstream to the DLC3.
    3. Turn the power switch ON (IG).
    4. Operate the Intelligent tester or Techstream according to the display and select "DATA LIST".

      Skid control ECU

      Intelligent tester

      SKID CONTROL ECU REFERENCE

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      ACC PRESS SENS Accumulator pressure sensor/ min.: 0 V, max.. 5 V Specified value. 2.6 to 3 8 V -

      Techstream

      VOLTAGE SPECIFICATION

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Accumulator Pressure Sensor Accumulator pressure sensor/ min.. 0 V, max.: 5 V Specified value 2 6 to 3 8 V -
    5. Depress the brake pedal 4 or 5 times to operate the pump motor, and check the output value on the Intelligent tester or Techstream with the motor stopped (not braking).

      OK: Accumulator pressure sensor's output voltage drops 0.2 V or less for 30 seconds.

      If the voltage drops more than 0.2 V, there may be a brake fluid leak from the No 3 brake actuator tube connection area. Remove the brake actuator and brake accumulator pump, and then repeat the procedures above from the retightening of the 2 union nuts of the No 3 brake actuator tube.

      Fig 21: Identifying Brake Actuator Tube And Union Nut Wrench With Fulcrum Length
      G05774100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: without union nut wrench

      15 N*m (155 kgf*cm, 11 ft.*lbf)

      with union nut wrench

      14 N*m (145 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • The torque value for use with a union nut wrench is effective when the union nut wrench is parallel to the torque wrench.
  45. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See INSTALLATION )
  46. INSTALL COWL TOP VENTILATOR LOUVER PROTECTOR LH  (See INSTALLATION )
  47. INSTALL FRONT FENDER TO COWL SIDE SEAL LH  (See INSTALLATION ).
  48. INSTALL FRONT FENDER TO COWL SIDE SEAL RH  (See INSTALLATION ).
  49. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION ).
  50. INSTALL FRONT UPPER FENDER PROTECTOR LH  (See INSTALLATION ).
  51. INSTALL FRONT UPPER FENDER PROTECTOR RH  (See INSTALLATION ).
  52. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION ).
  53. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION ).
  54. INSTALL FRONT WIPER ARM LH  (See INSTALLATION ).
  55. INSTALL FRONT WIPER ARM RH  (See INSTALLATION ).
  56. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION ).
  57. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION ).
