Door Closer: Notes

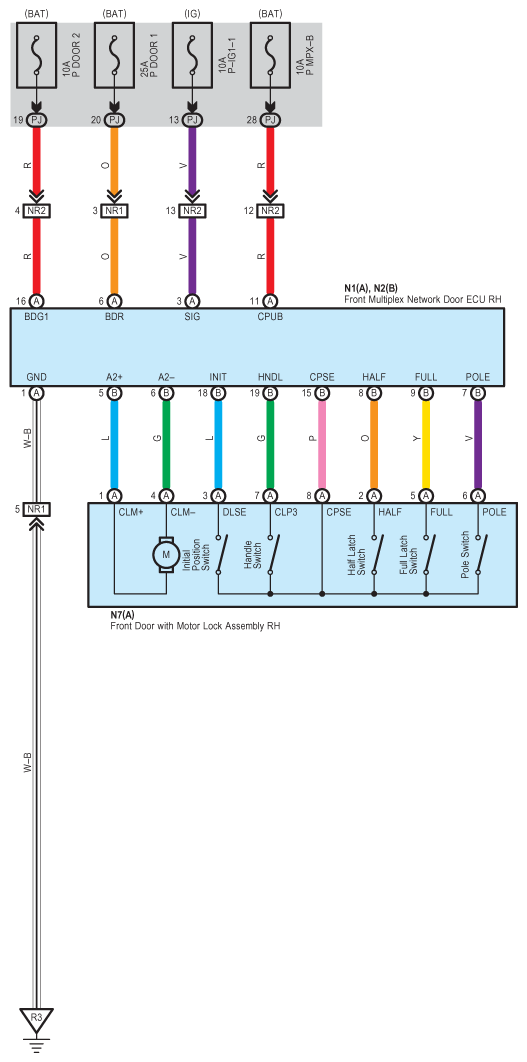

Fig 1: Door Closer - Circuit Diagram (1 Of 4)
G07592908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

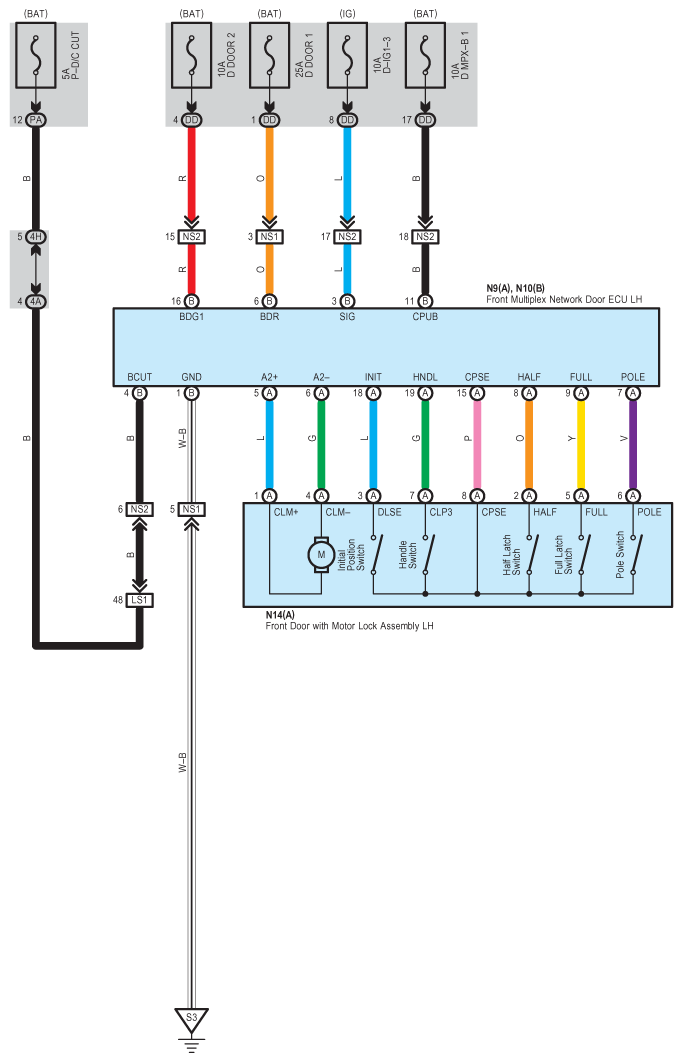

Fig 2: Door Closer - Circuit Diagram (2 Of 4)
G07592909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

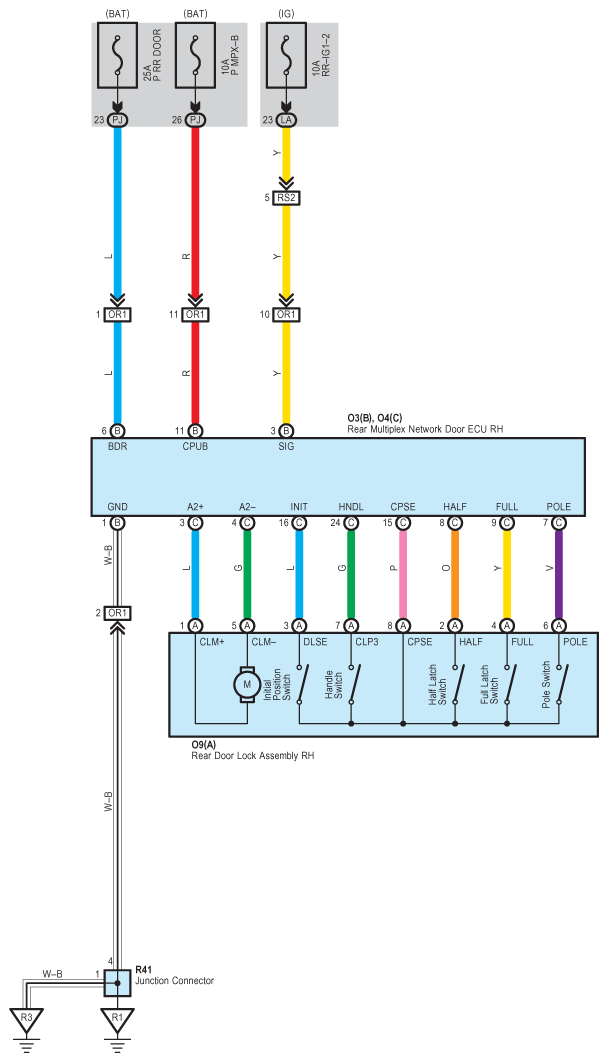

Fig 3: Door Closer - Circuit Diagram (3 Of 4)
G07592910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

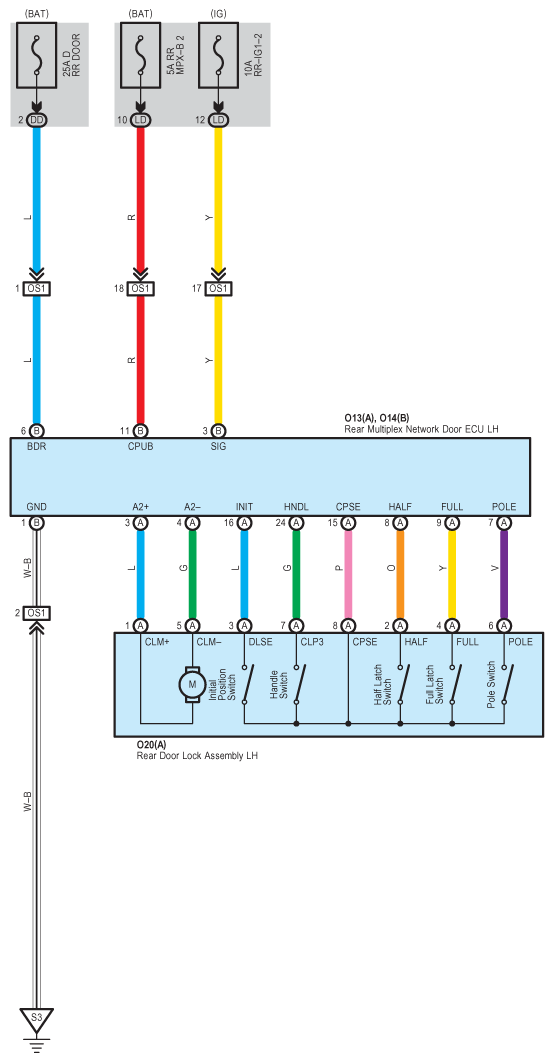

Fig 4: Door Closer - Circuit Diagram (4 Of 4)
G07592911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
