OEM System Circuits: Illumination: Notes

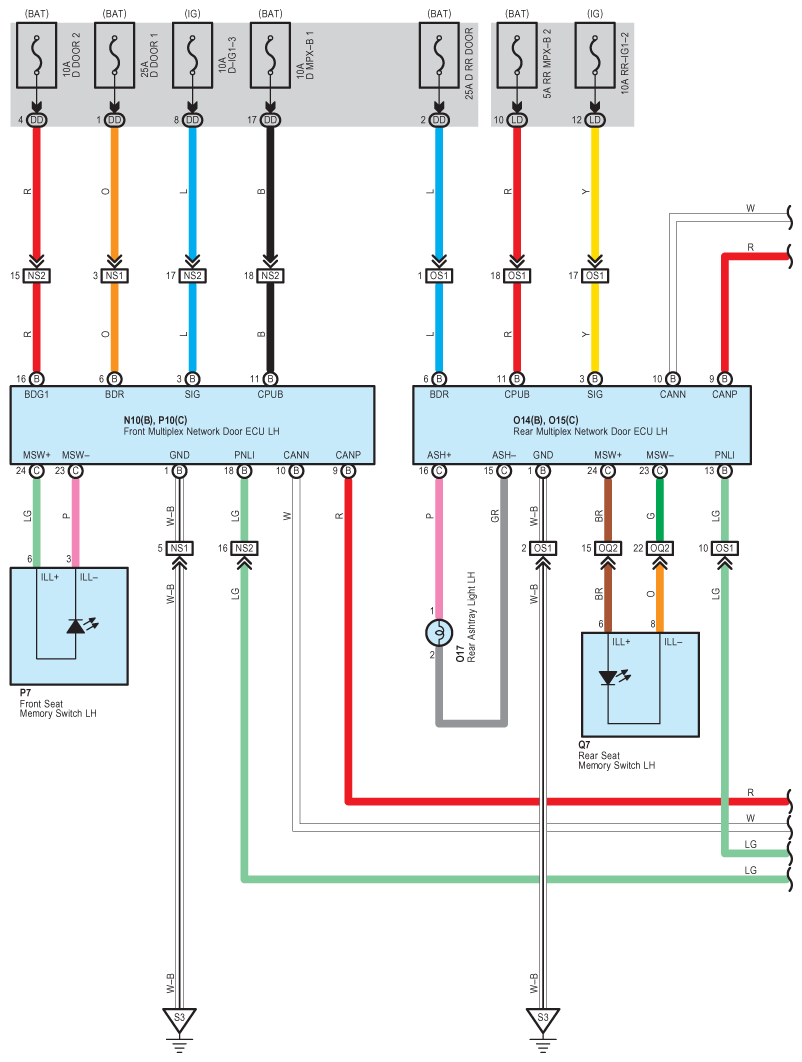

Fig 1: Illumination - Circuit Diagram (1 Of 14)

G07592849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

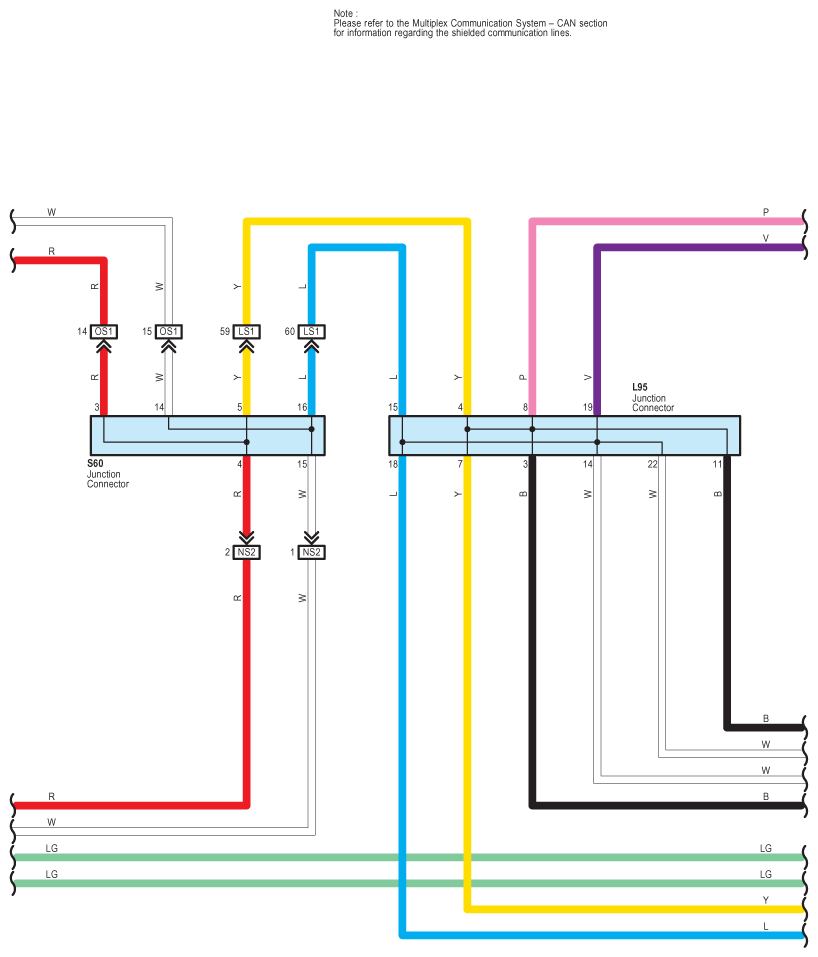

Fig 2: Illumination - Circuit Diagram (2 Of 14)

G07592850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

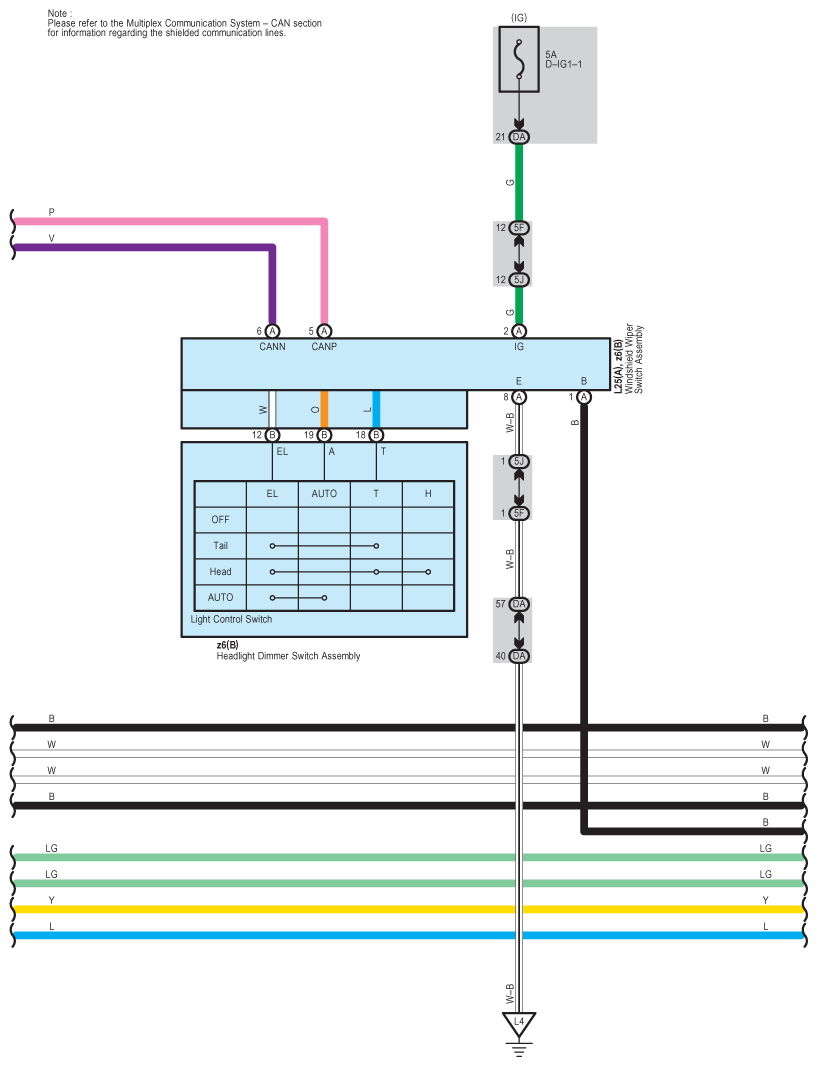

Fig 3: Illumination - Circuit Diagram (3 Of 14)

G07592851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

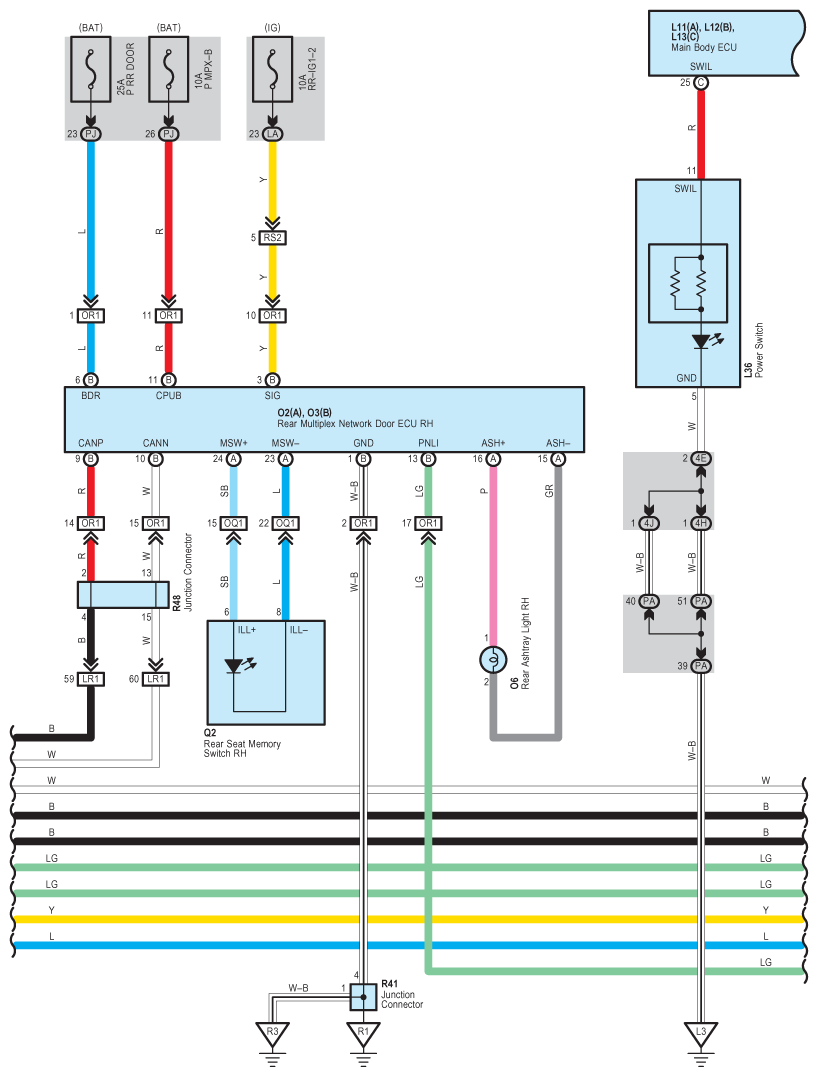

Fig 4: Illumination - Circuit Diagram (4 Of 14)

G07592852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

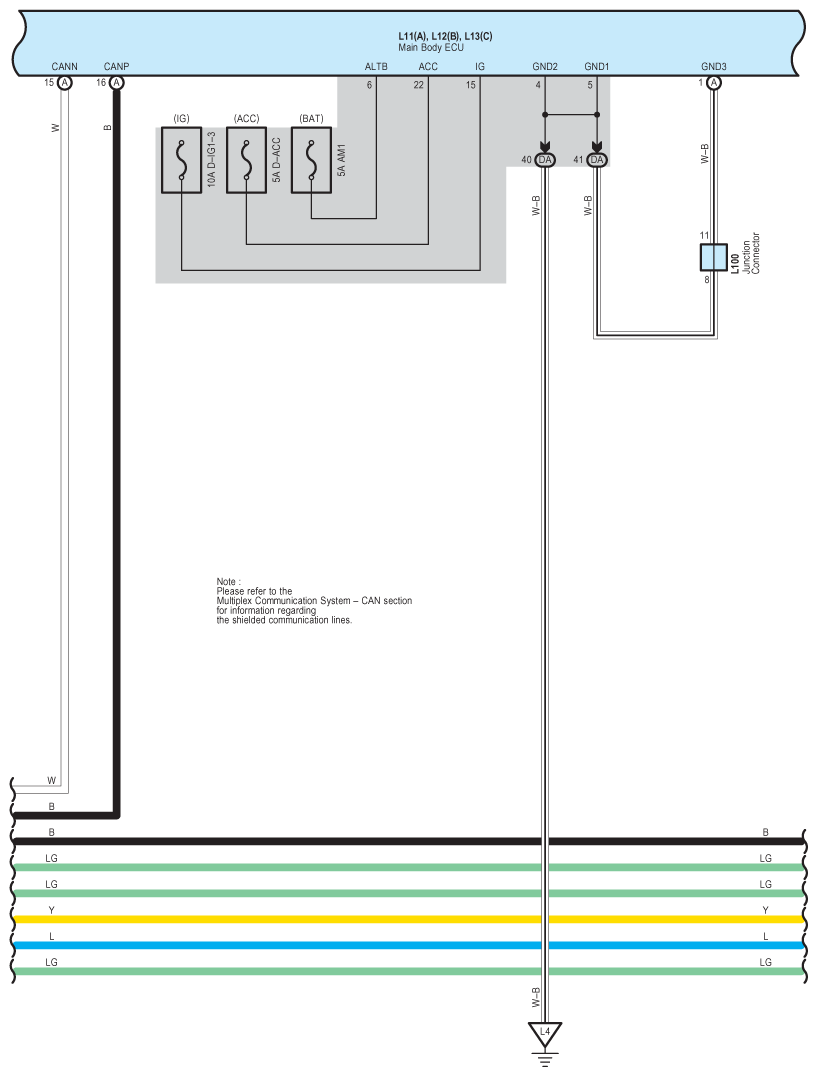

Fig 5: Illumination - Circuit Diagram (5 Of 14)

G07592853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

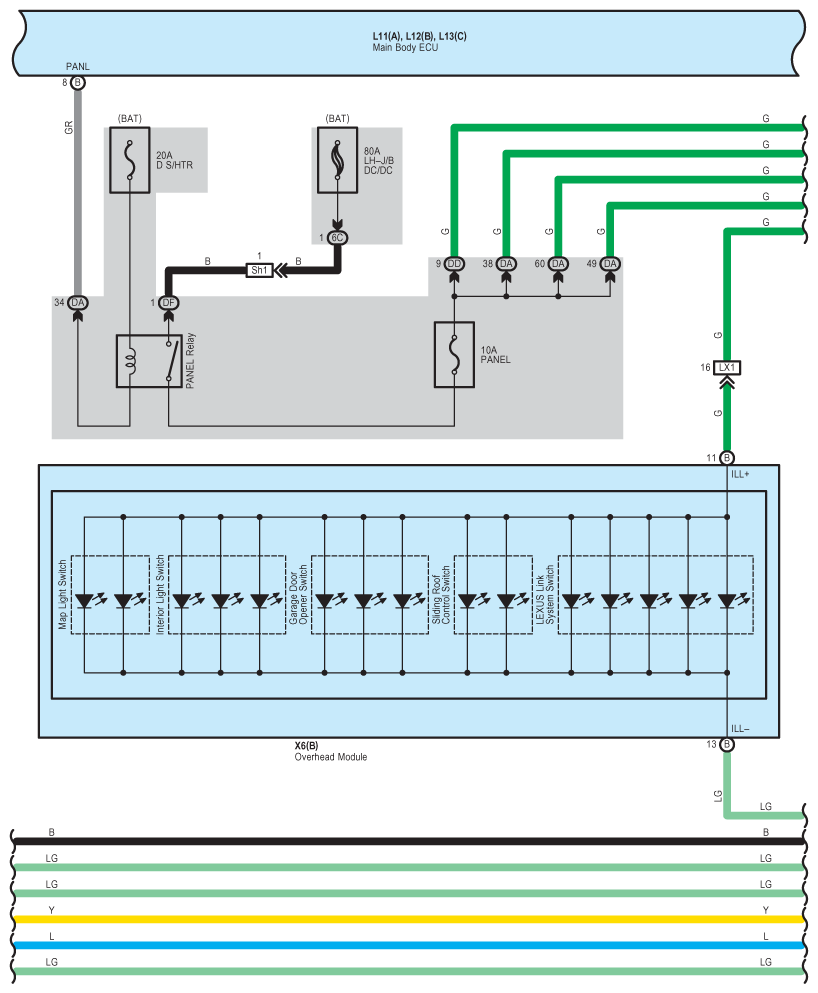

Fig 6: Illumination - Circuit Diagram (6 Of 14)

G07592854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

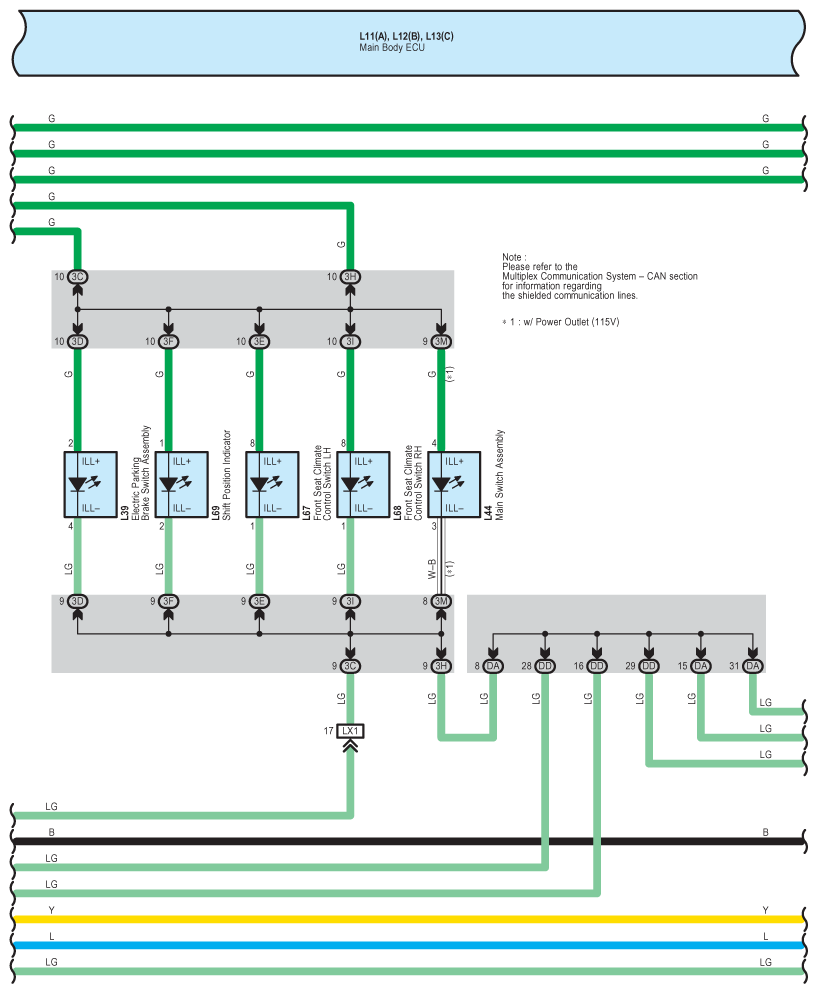

Fig 7: Illumination - Circuit Diagram (7 Of 14)

G07592855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

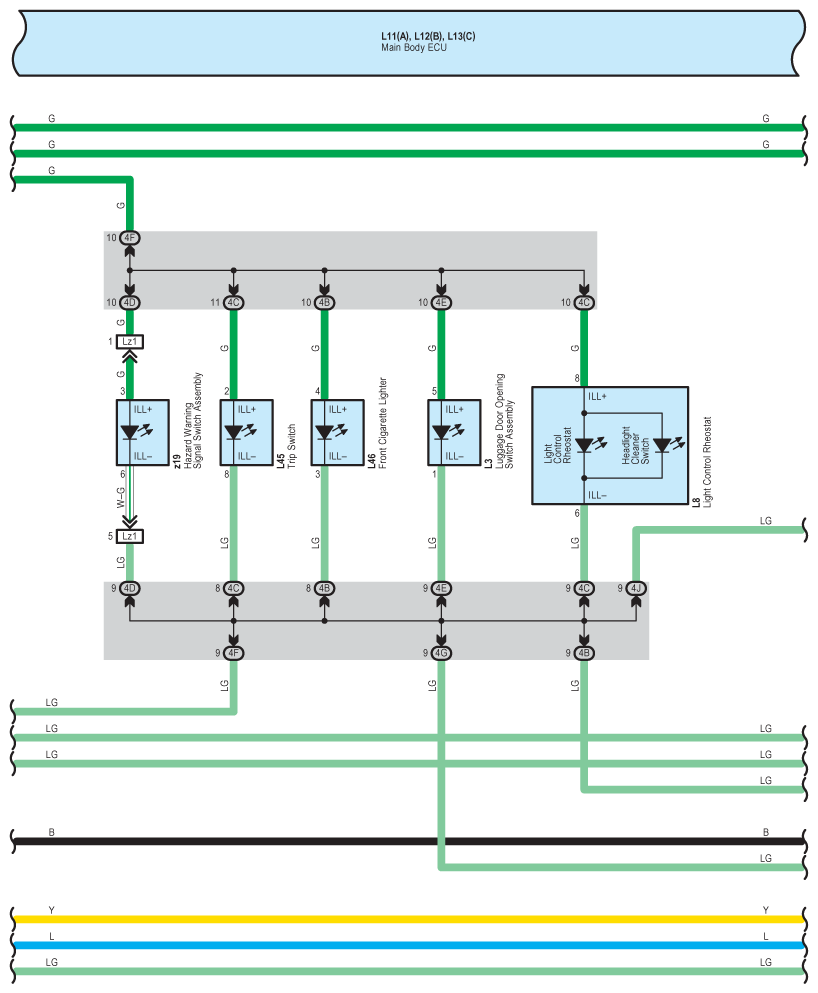

Fig 8: Illumination - Circuit Diagram (8 Of 14)

G07592856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

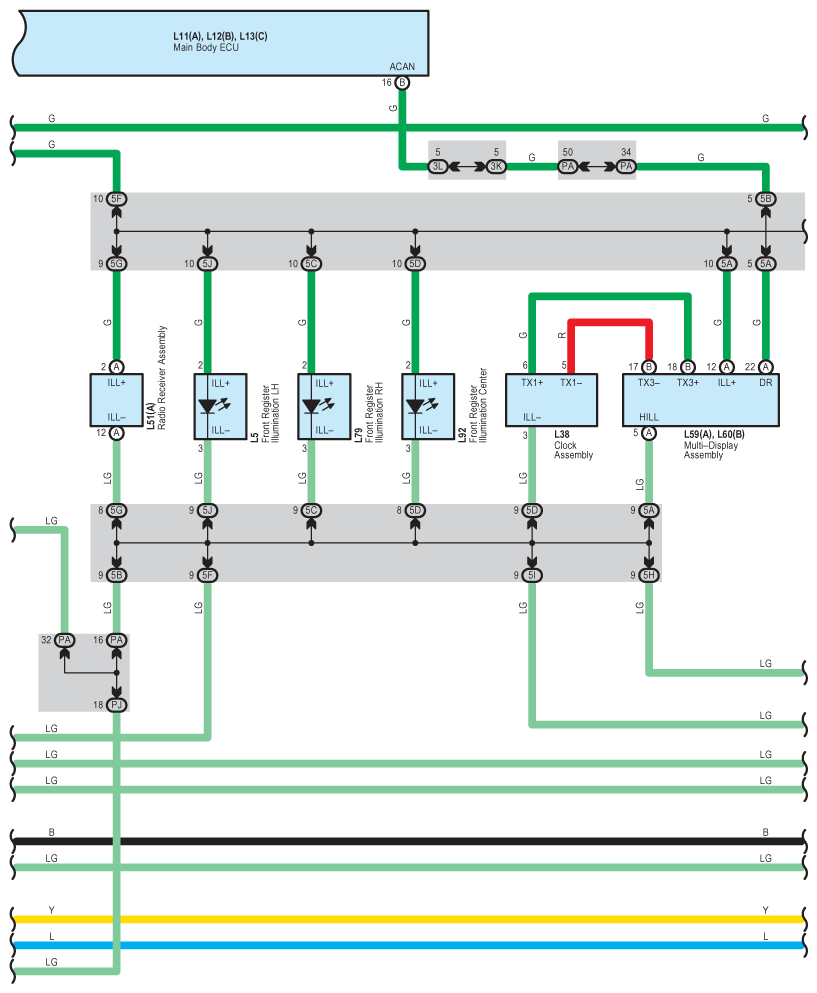

Fig 9: Illumination - Circuit Diagram (9 Of 14)

G07592857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

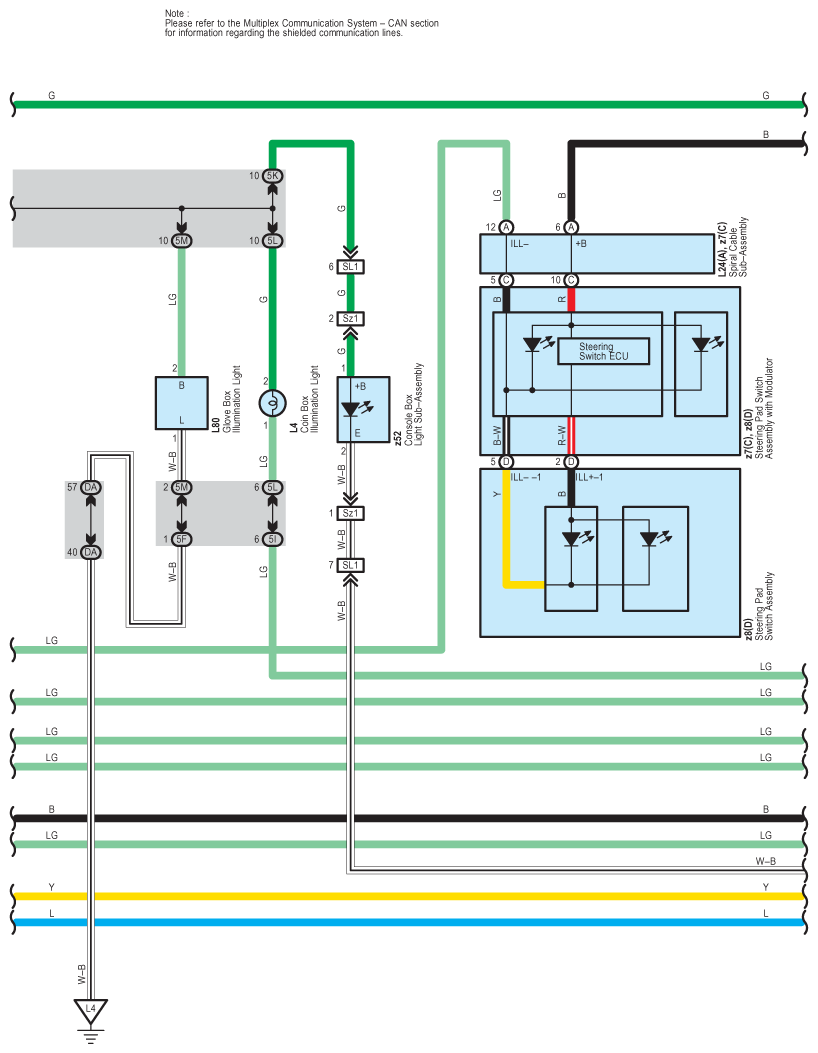

Fig 10: Illumination - Circuit Diagram (10 Of 14)

G07592858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

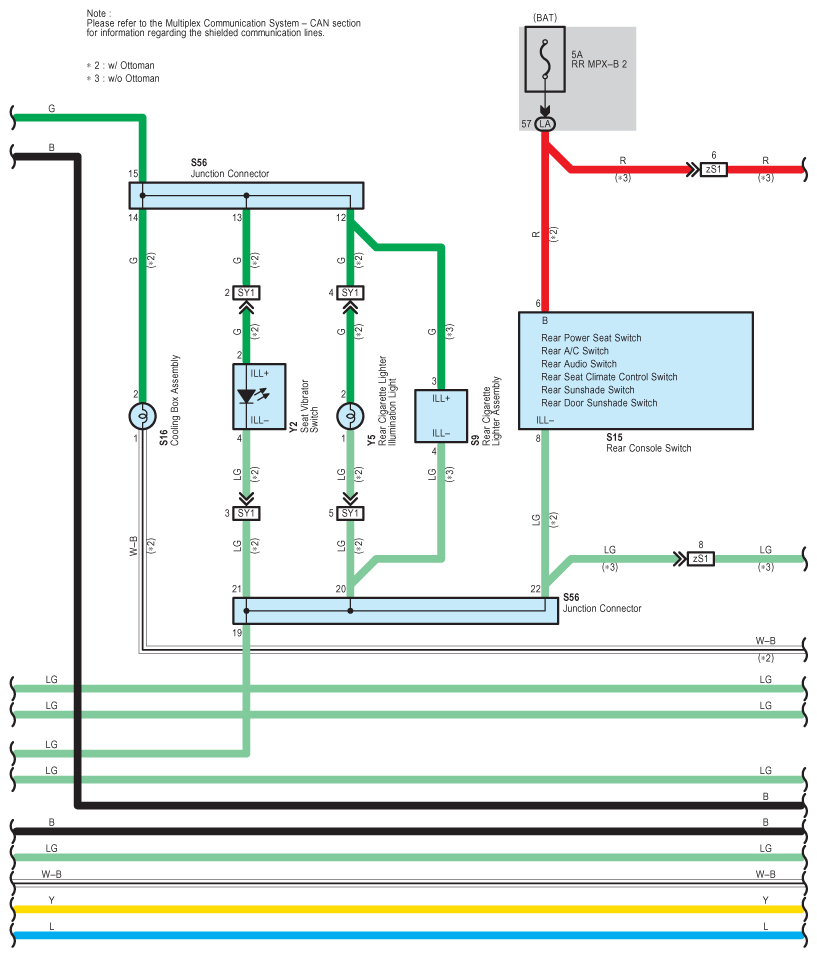

Fig 11: Illumination - Circuit Diagram (11 Of 14)

G07592859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

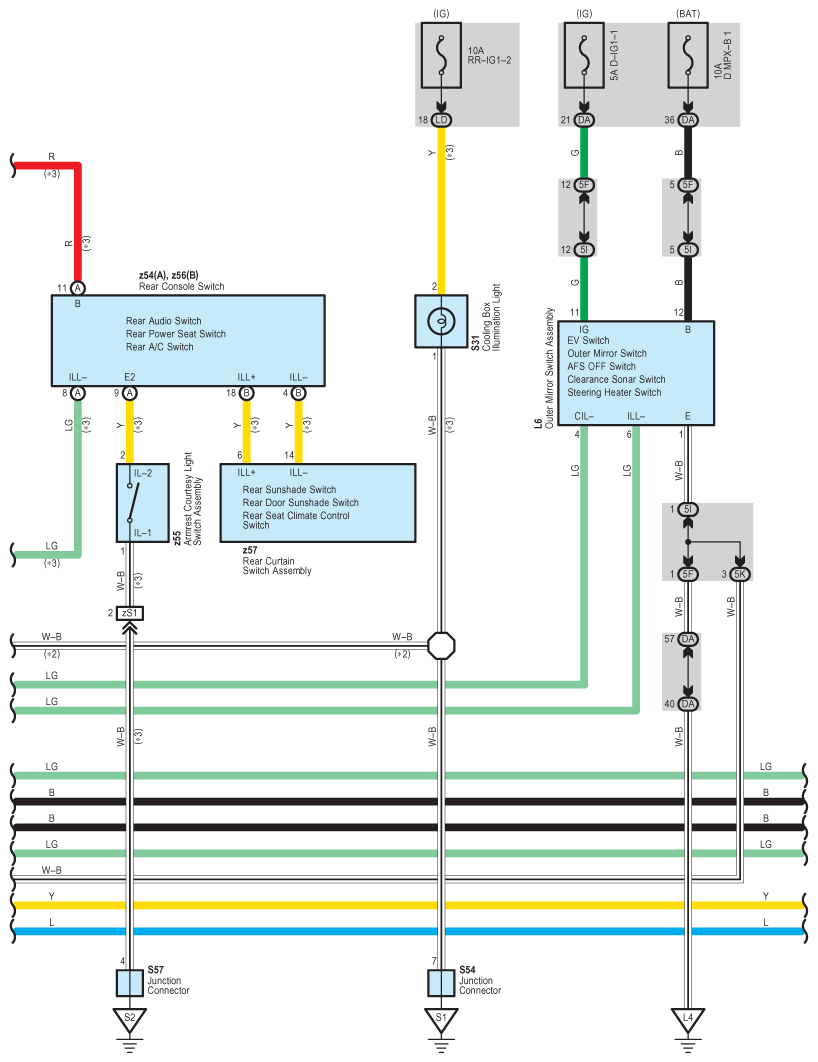

Fig 12: Illumination - Circuit Diagram (12 Of 14)

G07592860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

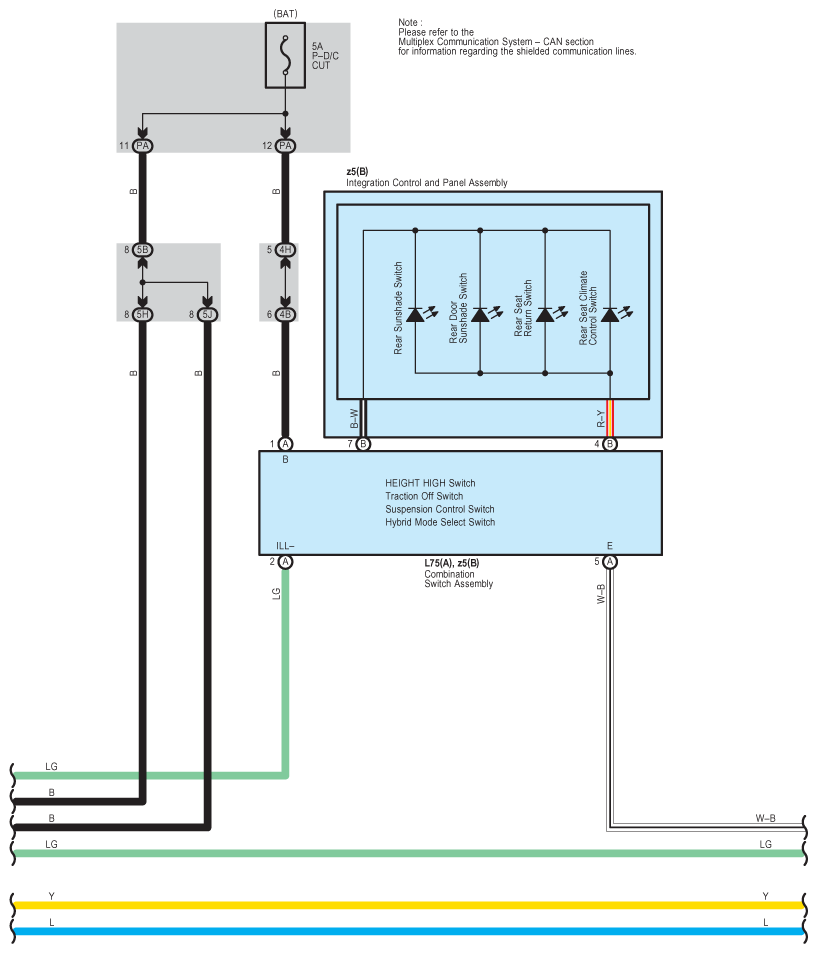

Fig 13: Illumination - Circuit Diagram (13 Of 14)

G07592861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

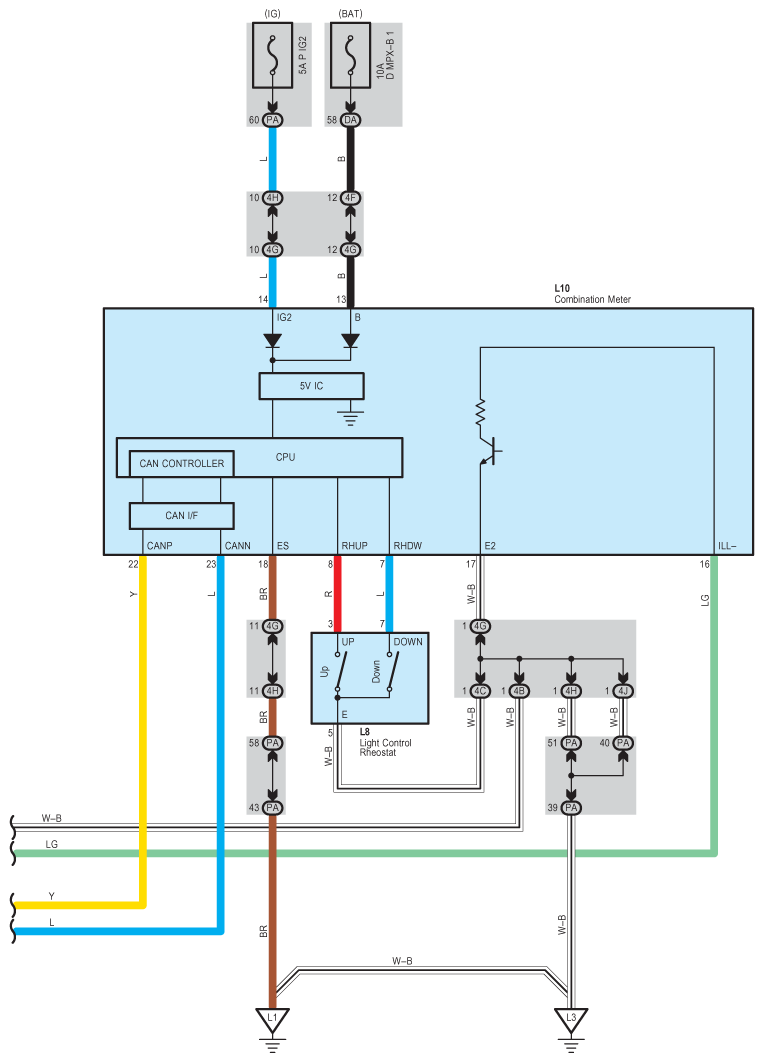

Fig 14: Illumination - Circuit Diagram (14 Of 14)

G07592862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
