Combination Meter: Components

Fig 1: Identifying Combination Meter Components (1 Of 4)
G05776269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Combination Meter Components (2 Of 4)
G05776270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

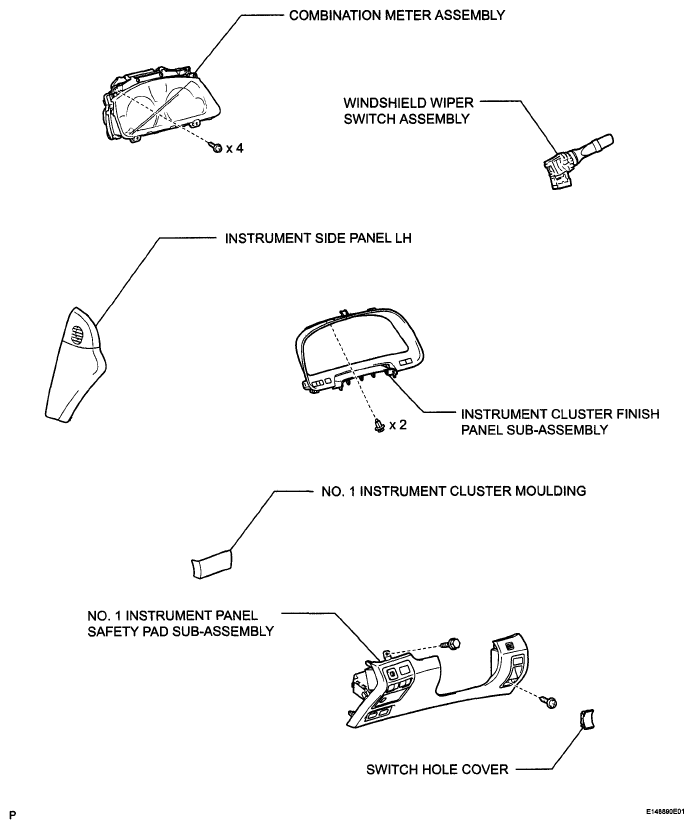

Fig 3: Identifying Combination Meter Components (3 Of 4)
G05776271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

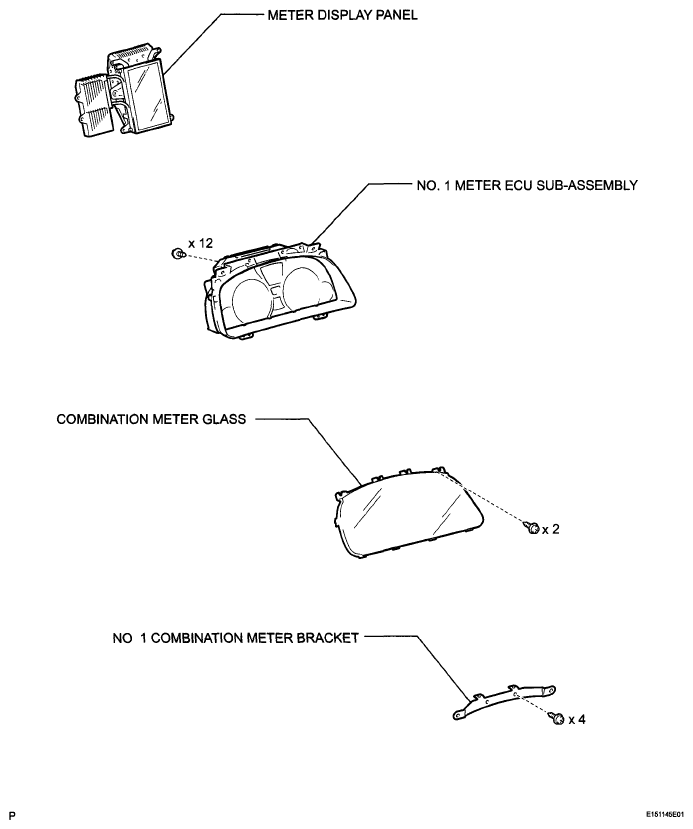

Fig 4: Identifying Combination Meter Components (4 Of 4)
G05776272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
