Combination Meter: Disassembly

REMOVE NO. 1 COMBINATION METER BRACKET
1. Remove the 4 screws and bracket
Fig 1: Identifying No. 1 Combination Meter Bracket Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Remove the 2 screws
2. Detach the 6 claws and remove the meter glass
Fig 2: Identifying Combination Meter Glass Claws And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER DISPLAY PANEL
1. Remove the 12 screws and meter cover.

  Fig 3: Identifying Meter Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the 6 claws to remove the locks.

  Fig 4: Detaching The 6 Claws To Remove Locks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

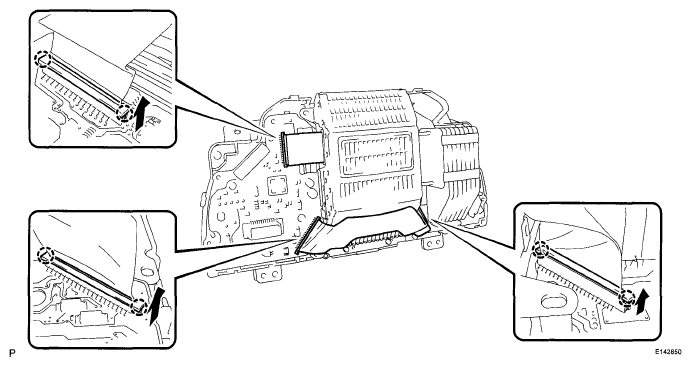

3. Disconnect each flat cable.
4. Remove the display panel from the meter ECU.

  Fig 5: Removing Display Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
