Intake Air Control Valve Actuator: Components

Fig 1: Identifying Intake Air Control Valve Actuator Components (1 Of 2)
G05773181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

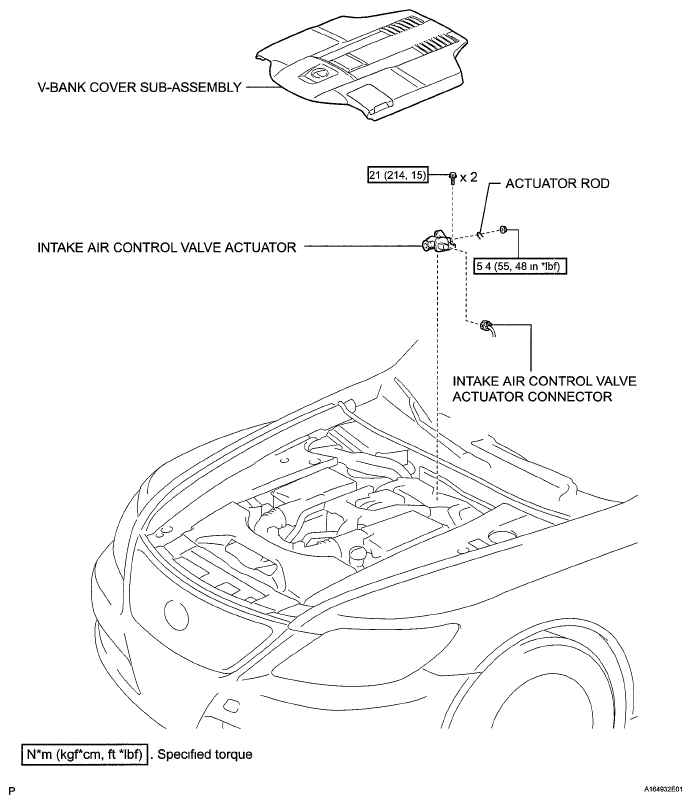

Fig 2: Intake Air Control Valve Actuator Replacement Components With Torque Specifications (2 Of 2)
G05773239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
