System Diagram

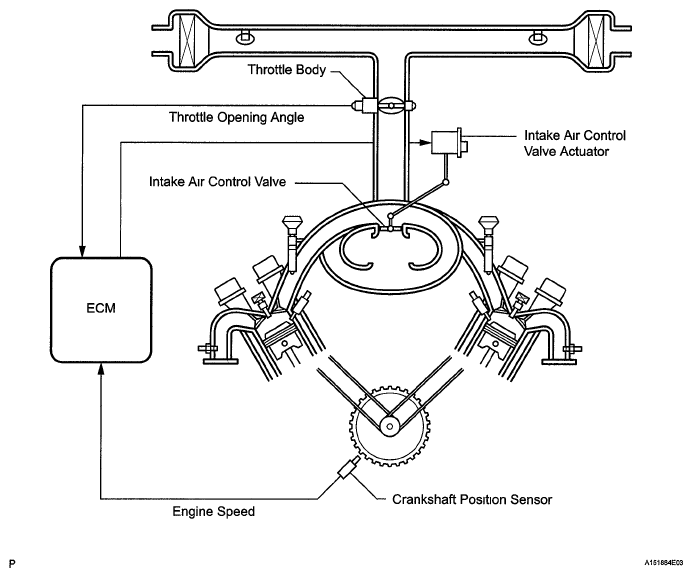

Fig 1: Intake System Diagram (1 Of 2)
G05773194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

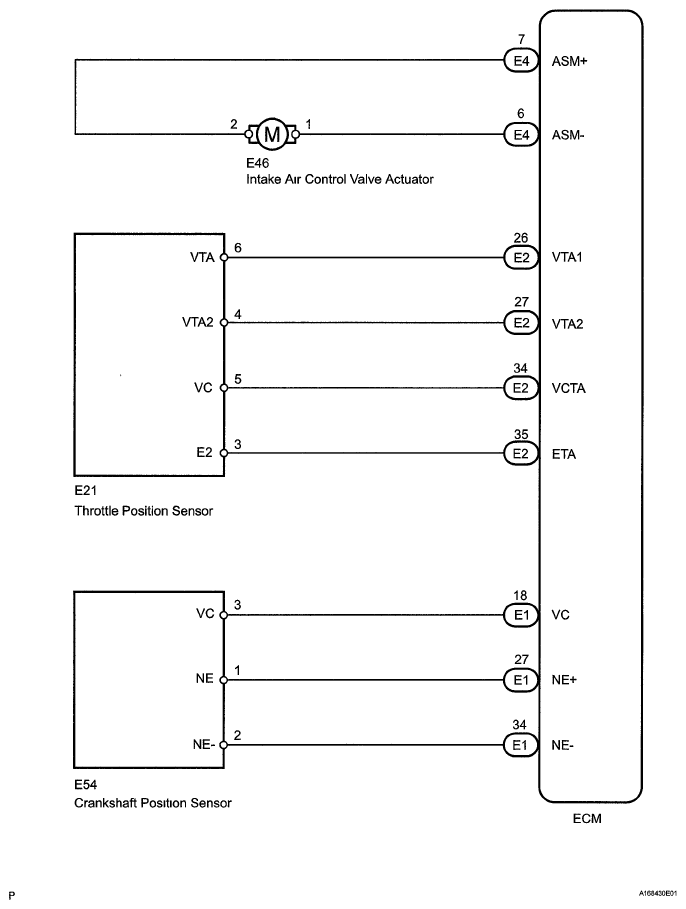

Fig 2: Intake System Diagram (2 Of 2)
G05773195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
