Air Fuel Ratio Sensor: Installation

HINT:

When viewed from the rear of the engine assembly, Bank 1 is on the left side and Bank 2 is on the right side.

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
   1. Using SST, install the sensor to the exhaust manifold LH.

      SST 09224-00010

      Torque: without SST

      44 N*m (449 kgf*cm, 32 ft.*lbf)

      with SST

      40 N*m (408 kgf*cm, 30 ft.*lbf)

      HINT:

      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • Make sure SST and the wrench are connected in a straight line

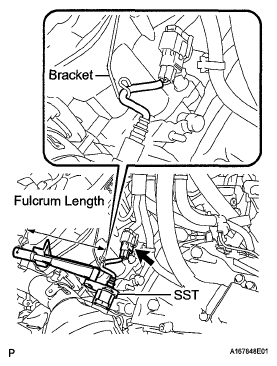

      Fig 1: Identifying Fulcrum Length
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect the sensor connector.

      HINT:

      Hook the wire harness to the bracket.

2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
   1. Using SST, install the sensor to the exhaust manifold RH.

      SST 09224-00010

      Torque: without SST

      44 N*m (449 kgf*cm, 32 ft.*lbf)

      with SST

      40 N*m (408 kgf*cm, 30 ft.*lbf)

      Fig 2: Identifying Fulcrum Length

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
      • Make sure SST and the wrench are connected in a straight line.
   2. Connect the sensor connector.
3. INSTALL ENGINE AND TRANSMISSION
   1. Install the engine and transmission (see INSTALLATION ).
