Cooling Fan Circuit: Wiring Diagram

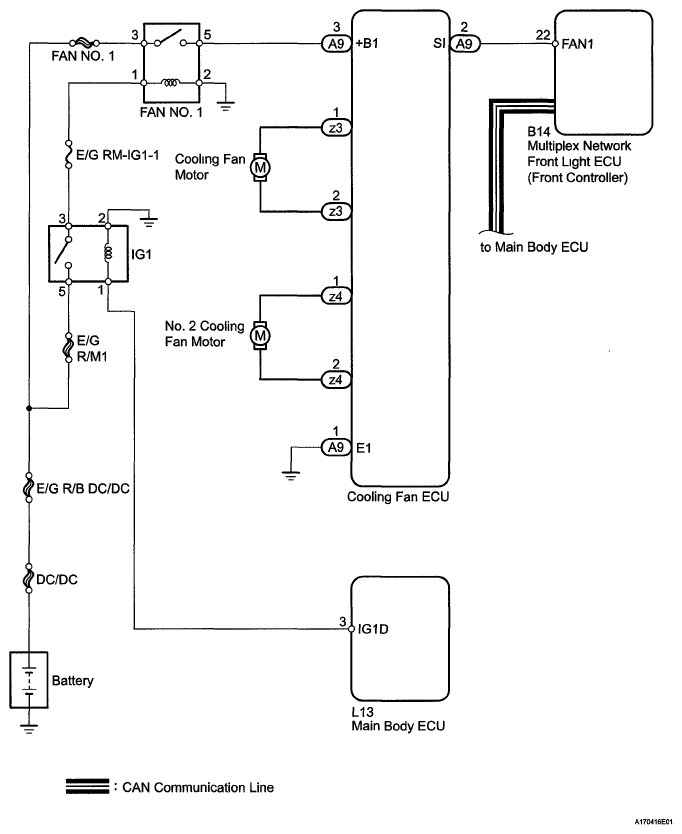

Fig 1: Cooling Fan Motor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
