ECM Power Source Circuit: Wiring Diagram

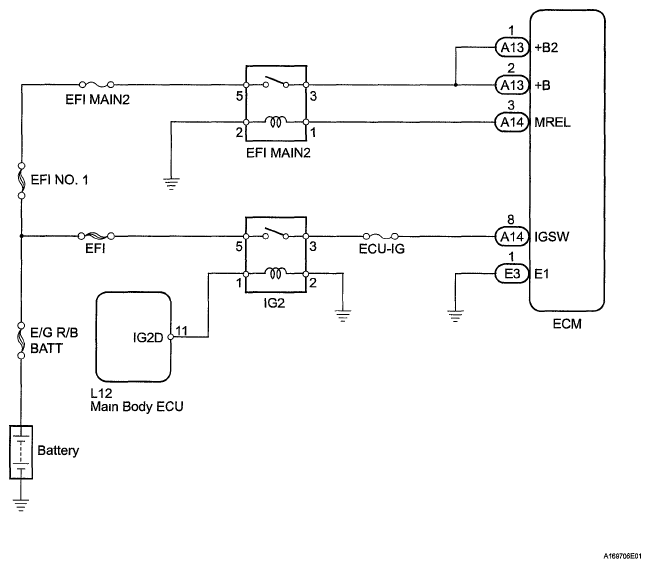

Fig 1: Main Body ECU - Wiring Diagram
G05771164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
