Mass Air Flow Meter: Components

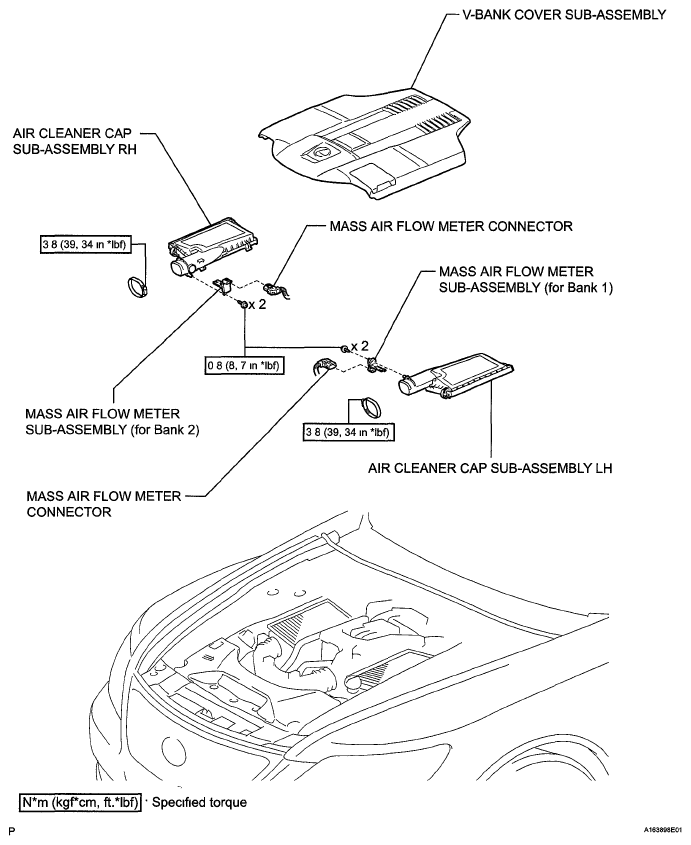

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
G05771238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
