VC Output Circuit: Wiring Diagram

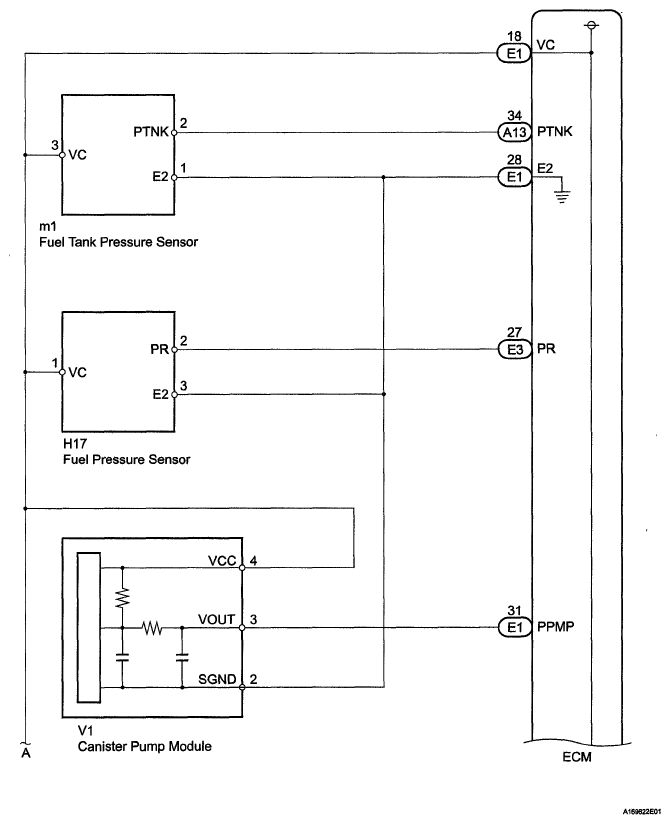

Fig 1: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (1 Of 3)
G05771173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

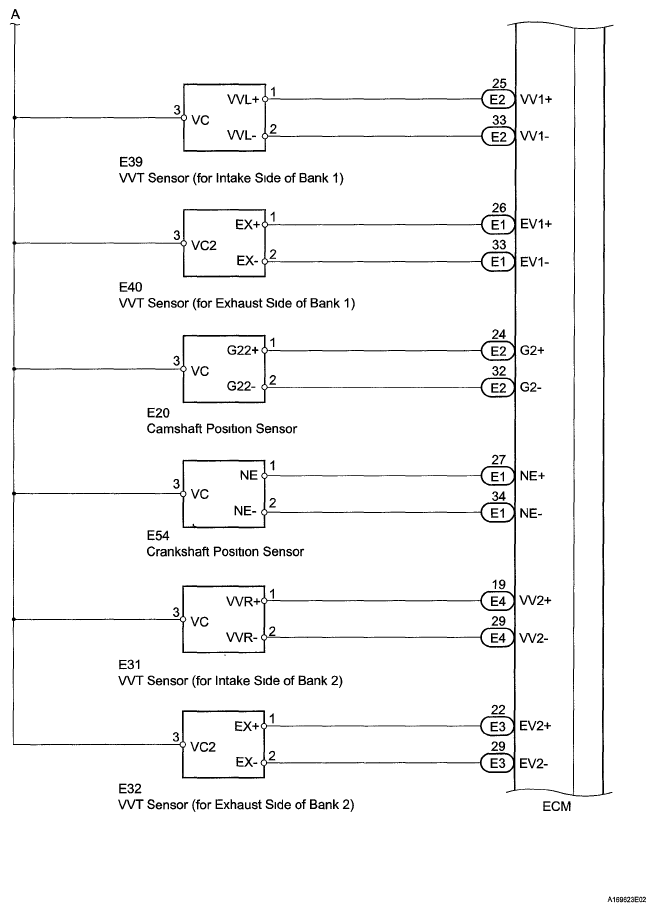

Fig 2: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (2 Of 3)
G05771174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fuel Tank Pressure Sensor And Canister Pump Module - Wiring Diagram (3 Of 3)
G05771175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
