Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Battery Cooling Blower Assembly | Right side of luggage compartment. See Figure. |
| Brake Actuator Assembly | Left rear corner of engine compartment. See Figure. |
| Brake Booster Pump Assembly | Left rear corner of engine compartment. See Figure. |
| Cam Timing Control With EDU Motor Assembly (Bank 1) | Left front of engine. See Figure. |
| Cam Timing Control With EDU Motor Assembly (Bank 2) | Right front of engine. See Figure. |
| Cooling Fan Motor (Main) | Behind left side of radiator. See Figure. |
| Cooling Fan Motor (Sub) | Behind right side of radiator. See Figure. |
| Front Absorber Control Actuator LH | Left side of engine compartment. See Figure. |
| Front Absorber Control Actuator RH | Right side of engine compartment. See Figure. |
| Front Active Stabilizer Control Actuator Assembly | Left front of engine compartment. See Figure. |
| Front Blower With Fan Motor Sub-Assembly | Behind lower right side of dash. See Figure. |
| Front Door Closer Motor LH | Front of left front door. See Figure. |
| Front Door Closer Motor RH | Front of right front door. See Figure. |
| Front Door With Motor Lock Assembly LH | Rear of left front door. See Figure. |
| Front Door With Motor Lock Assembly RH | Rear of right front door. See Figure. |

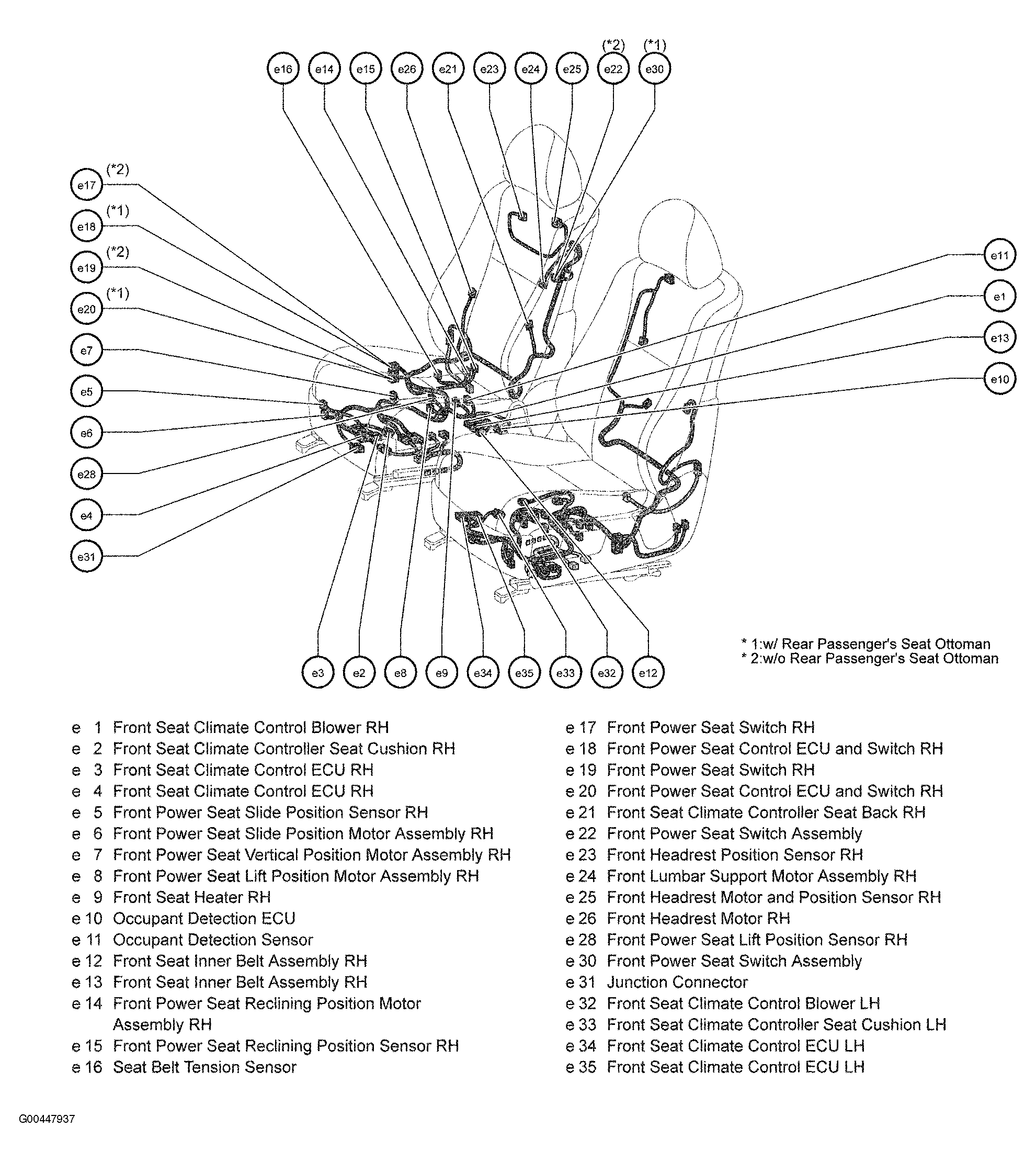

| Front Headrest Motor RH | In right front seat back. See Figure. |
| Front Lumbar Support Motor (Forward - Back) | In left front seat back. See Figure. |
| Front Lumbar Support Motor RH | In right front seat back. See Figure. |
| Front Lumbar Support Motor (Up - Down) | In left front seat back. See Figure. |
| Front Power Seat Cushion Control Motor LH | Under left front seat. See Figure. |
| Front Power Seat Position Motor LH (Lift Position) | Under left front seat. See Figure. |
| Front Power Seat Position Motor LH (Reclining Position) | Under left front seat. See Figure. |
| Front Power Seat Position Motor LH (Slide Position) | Under left front seat. See Figure. |
| Front Power Seat Position Motor LH (Vertical Position) | Under left front seat. See Figure. |
| Front Power Seat Position Motor RH (Lift Position) | Under right front seat. See Figure. |
| Front Power Seat Position Motor RH (Reclining Position) | Under right front seat. See Figure. |
| Front Power Seat Position Motor RH (Slide Position) | Under right front seat. See Figure. |
| Front Power Seat Position Motor RH (Vertical Position) | Under right front seat. See Figure. |
| Front Power Window Regulator Motor Assembly LH | In left front door. See Figure. |
| Front Power Window Regulator Motor Assembly RH | In right front door. See Figure. |
| Front Pre-Collision Seat Belt Motor LH | Base of left "B" pillar. See Figure. |
| Front Pre-Collision Seat Belt Motor RH | Base of right "B" pillar. See Figure. |
| Front Seat Climate Control Blower LH | Under left front seat. See Figure. |
| Front Seat Climate Control Blower RH | Under right front seat. See Figure. |
| Front Seat Headrest Adjuster Motor LH | In left front seat back. See Figure. |
| Fuel Lid With Motor Lock Assembly | Left side of luggage compartment, behind left rear wheelwell. See Figure. |
| Headlight Cleaner Motor & Pump Assembly | Below left headlight. See Figure. |
| Heater Water Pump Assembly | Right front of engine compartment. See Figure. |
| Height Adjustable Anchor Motor LH | At left "B" pillar. See Figure. |
| Height Adjustable Anchor Motor RH | At right "B" pillar. See Figure. |
| Height Control Compressor Motor | Right front of engine compartment. See Figure. |
| Intake Air Control Valve Actuator | Left rear of engine. See Figure. |
| Inverter Water Pump Motor Assembly | Front of engine compartment. See Figure. |
| Luggage Door Closer Assembly | Center rear of luggage compartment lid. See Figure. |
| Motor Generator No. 1 | Rear of engine compartment. See Figure. |
| Motor Generator No. 2 | Rear of engine compartment. See Figure. |
| Ottoman Reclining Motor | Under center of rear seats. See Figure. |
| Outer Rear View Mirror LH | At mirror. See Figure. |
| Outer Rear View Mirror RH | At mirror. See Figure. |
| Parking Brake Actuator Assembly | Left side of luggage compartment. See Figure. |
| Power Steering Motor | Front center of engine compartment. See Figure. |
| Power Tilt Motor | On steering column. See Figure. |

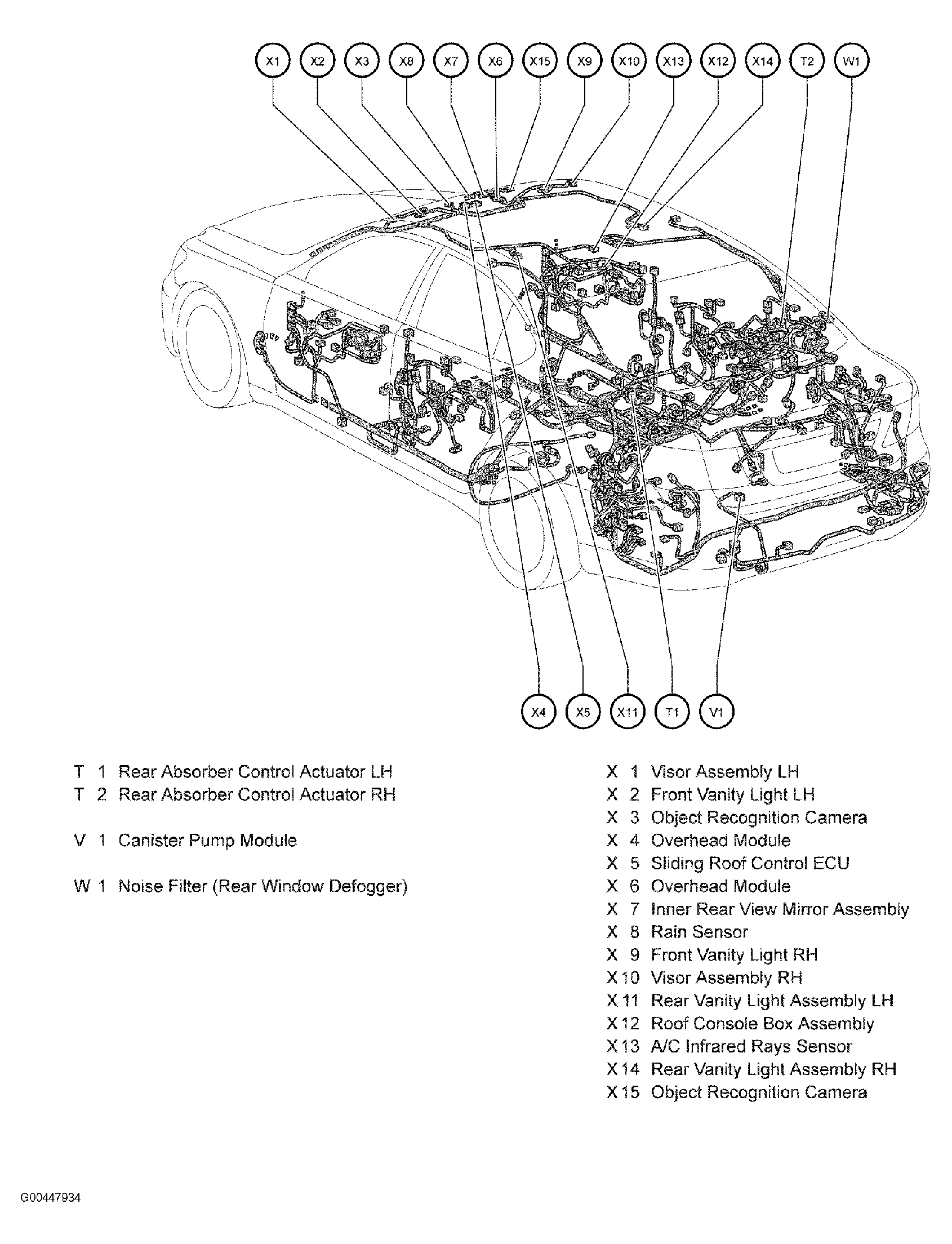

| Rear Absorber Control Actuator LH | In left rear wheelwell. See Figure. |
| Rear Absorber Control Actuator RH | In right rear wheelwell. See Figure. |
| Rear Active Stabilizer Control Actuator Assembly | Rear of vehicle chassis. See Figure. |
| Rear Door Closer Motor LH | Front of left rear door. See Figure. |
| Rear Door Closer Motor RH | Front of right rear door. See Figure. |
| Rear Door Lock Assembly LH | Rear of left rear door. See Figure. |
| Rear Door Lock Assembly RH | Rear of right rear door. See Figure. |
| Rear Door Shade LH | In left rear door. See Figure. |
| Rear Door Shade RH | In right rear door. See Figure. |
| Rear Power Seat Motor LH | Under left rear seat. See Figure. |
| Rear Power Seat Motor RH | Under right rear seat. See Figure. |
| Rear Power Seat Position Motor LH (Fold Position) | Under left rear seat. See Figure. |
| Rear Power Seat Position Motor RH (Fold Position) | Under right rear seat. See Figure. |
| Rear Power Window Regulator Motor Assembly LH | In left rear door. See Figure. |
| Rear Power Window Regulator Motor Assembly RH | In right rear door. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Back) | In left rear seat back. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Cushion) | Under left rear seat. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Back) | In right rear seat back. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Cushion) | Under right rear seat. See Figure. |
| Rear Seat No. 1 Headrest Adjuster Sub-Assembly RH | In left rear seat back. See Figure. |
| Rear Seat No. 1 Headrest Adjuster Sub-Assembly RH | In right rear seat back. See Figure. |
| Rear Sunshade | Under center of rear parcel shelf. See Figure. |
| Seat Vibrator | In right rear seat back. See Figure. |
| Short Connector (Brake Stroke Simulator) (2) | Left rear corner of engine compartment. See Figure. |
| Steering Actuator Assembly | Left front of engine compartment. See Figure. |
| Windshield Washer Motor & Pump Assembly | On washer fluid reservoir, below left headlight. See Figure. |
| Windshield Wiper Motor Assembly | Left rear of engine compartment. See Figure. |
