Child Restraint Seat Tether Anchor: Components

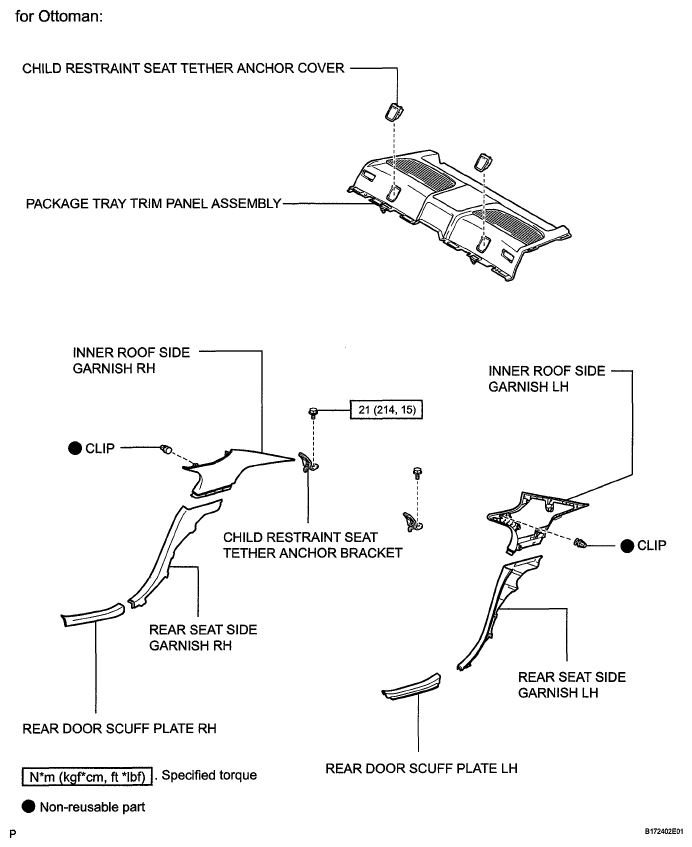

Fig 1: Identifying Child Restraint Seat Tether Anchor Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

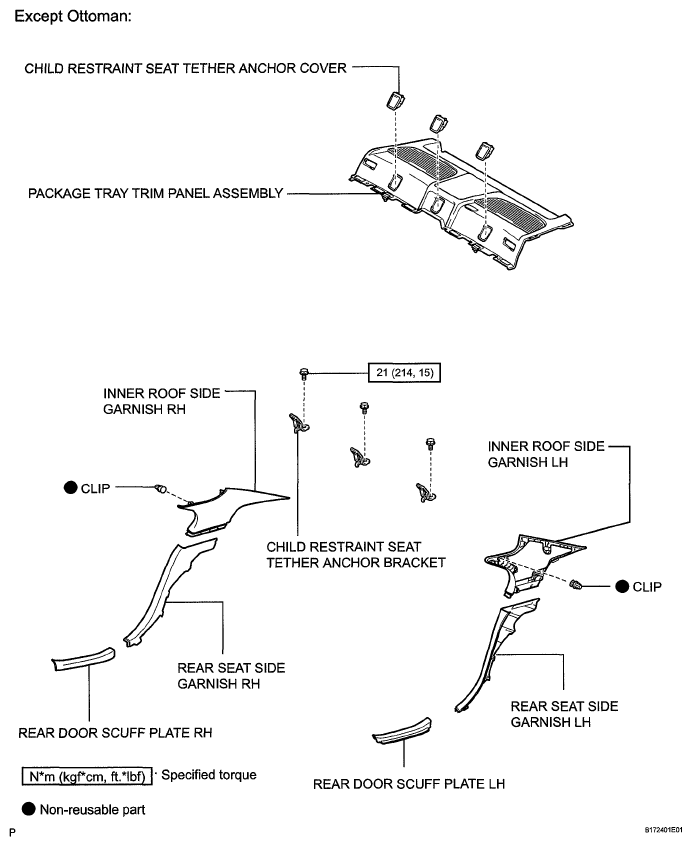

Fig 2: Identifying Child Restraint Seat Tether Anchor Replacement Components With Torque Specification (2 Of 3)

Fig 3: Identifying Child Restraint Seat Tether Anchor Replacement Components With Torque Specification (3 Of 3)
