Front Seat Inner Belt Assembly: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding parts of the front seat adjuster.

  Fig 1: Identifying Front Seat Inner Belt Assembly With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Driver Seat:
  Connect the 3 connectors and attach the 5 clamps.

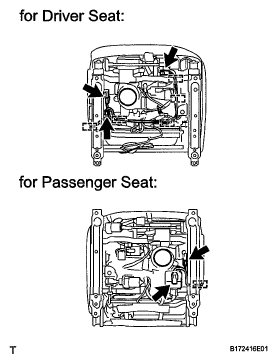

  Fig 2: Locating Connectors And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. for Passenger Seat:
Connect the 2 connectors and attach the clamp
INSTALL FRONT SEAT ASSEMBLY (See INSTALLATION )
CONNECT FRONT SEAT OUTER BELT ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
INSTALL BATTERY SERVICE HOLE COVER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See INSTALLATION )
CHECK SRS WARNING LIGHT (See INSTALLATION )
INSPECT FRONT SEAT ASSEMBLY (See INSTALLATION )
