System Diagram

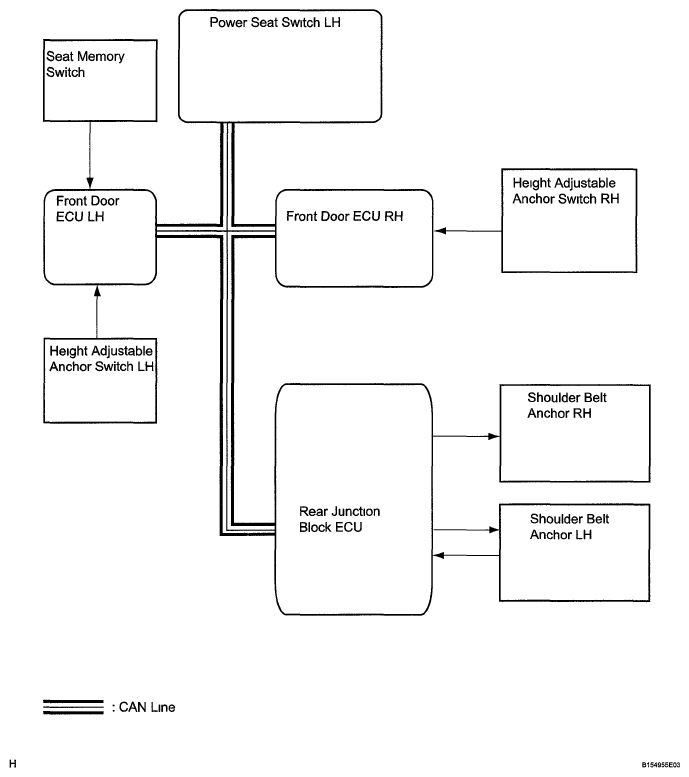

Fig 1: Power Shoulder Belt Anchorage - System Diagram
G05775781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Sender Receiver Signal Line
Front Door ECU LH Rear Junction Block ECU Shoulder belt anchor switch signal CAN
Front Door ECU LH Power Seat Switch LH Seat memory switch signal CAN
Power Seat Switch LH Rear Junction Block ECU Memory signal CAN
Rear Junction Block ECU Power Seat Switch LH Shoulder belt sensor signal CAN
Front Door ECU RH Rear Junction Block ECU Shoulder belt anchor switch signal CAN
