Front Axle Hub: Components

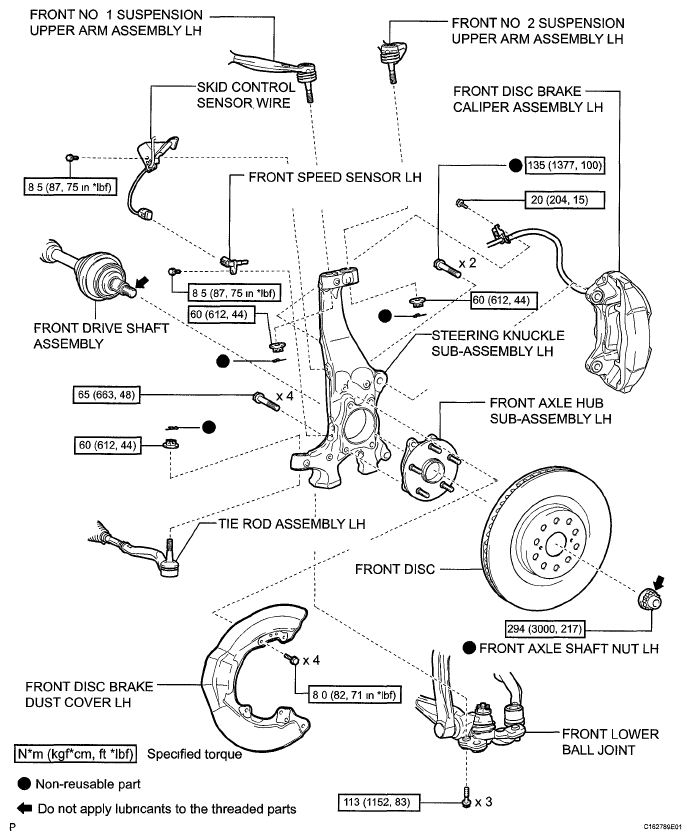

Fig 1: Front Axle Hub Replacement Components With Torque Specifications
G05773597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
