Front Active Stabilizer Control Ecu: Installation
- INSTALL FRONT ACTIVE STABILIZER CONTROL ECU

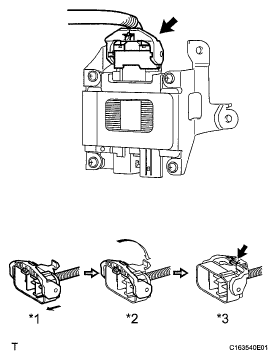

- Connect the ECU connector.
- Connect the ECU connector (*1).
- Rotate the lever in the direction of the arrow until a "click" sound is heard (*2).
- Lock the lever's lock (*3).
- Install the ECU with the 3 bolts.
Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)
- Connect the ECU connector.

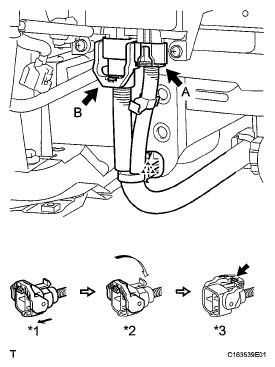

- CONNECT FRONT ACTIVE STABILIZER CONTROL ACTUATOR CONNECTOR
- Connect the actuator connector labeled A.
- Connect the actuator connector labeled B.
- Connect the actuator connector (*1).
- Rotate the lever in the direction of the arrow until a "click" sound is heard (*2).
- Lock the lever's lock (*3).
- Connect the wire harness clamp.
- INSTALL INLET ENGINE ROOM ECM DUCT
- Install the duct
- INSTALL NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY
- Attach the 2 claws.
- Attach the clamp.
- Install the duct with the 2 bolts
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- INSTALL WINDSHIELD WASHER JAR ASSEMBLY (See INSTALLATION )
- INSTALL WASHER INLET SUB-ASSEMBLY (See INSTALLATION )
- FILL WINDSHIELD WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID (See WASHER NOZZLE )
- INSTALL HEADLIGHT ASSEMBLY LH
- For HID Headlight:
Install the headlight (see INSTALLATION ).
- For LED Headlight:
Install the headlight (see INSTALLATION ).
- For HID Headlight:
- CONNECT FRONT FENDER LINER LH
- Install the liner with the 3 screws.
- INSTALL NO. 1 ENGINE UNDER COVER
- Install the under cover with the 9 screws and 7 clips.
- INSTALL FRONT BUMPER COVER (See INSTALLATION ).
- INSTALL FRONT FENDER LINER LH (See INSTALLATION ).
- INSTALL FRONT FENDER LINER RH (See INSTALLATION ).
- INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (See INSTALLATION ).
- INSTALL FRONT WHEEL OPENING EXTENSION PAD RH (See INSTALLATION ).
- INSTALL RADIATOR GRILLE ASSEMBLY (See INSTALLATION ).
- INSTALL FRONT FENDER WHEEL OPENING MOLDING LH (See INSTALLATION ).
- INSTALL FRONT FENDER WHEEL OPENING MOLDING RH (See INSTALLATION ).
- INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION ).
- INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
- INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
- INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL SERVICE PLUG GRIP (See INSPECTION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ). - INSTALL BATTERY SERVICE HOLE COVER LH (See INSTALLATION )
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See INSTALLATION )
- CHECK SRS WARNING LIGHT
- Check the SRS warning light (see DIAGNOSIS SYSTEM ).
- ADJUST HEADLIGHT ASSEMBLY
- for HID Headlight.
Adjust the headlight (see ADJUSTMENT )
- for LED Headlight.
Adjust the headlight (see ADJUSTMENT ).
- for HID Headlight.
