Suspension Control Ecu: Components
Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

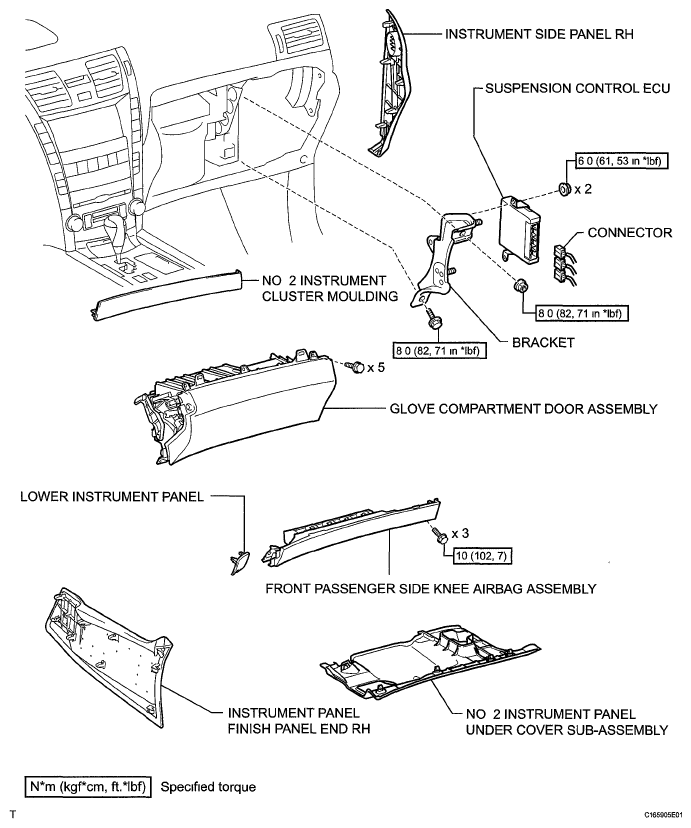

Fig 2: Suspension Control ECU Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

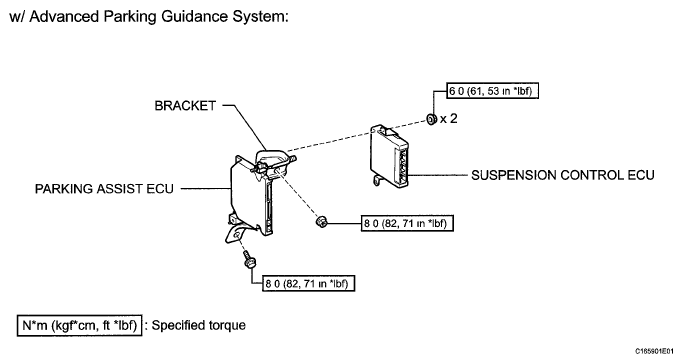

Fig 3: Suspension Control ECU Replacement Components With Torque Specifications (W/ Advanced Parking Guidance System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

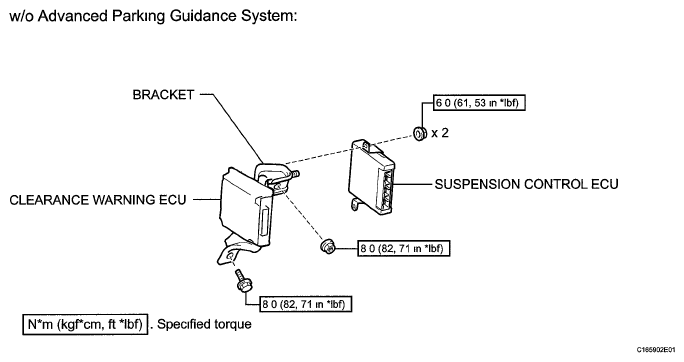

Fig 4: Suspension Control ECU Replacement Components With Torque Specifications (W/O Advanced Parking Guidance System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
